Hisense AUD-100UXP-KIT 10.0kW Ducted 1 Phase Air Conditioning System

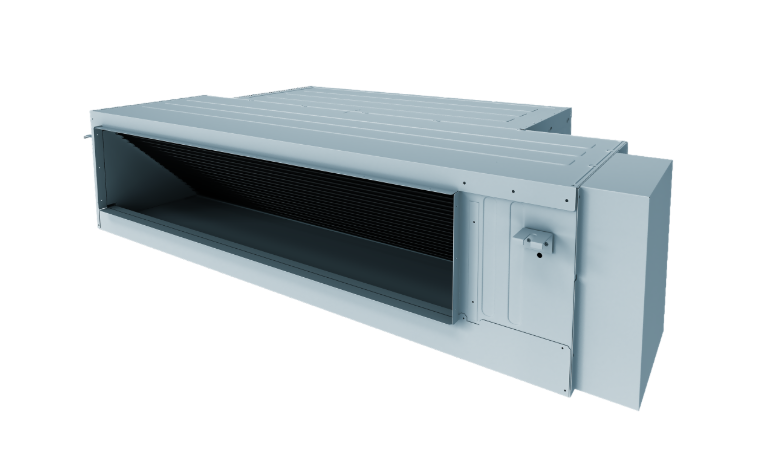

AUD-100UX4RSH1 / AUW-100U4RK1 Hisense Ducted System
$2,742.73 Excl GST

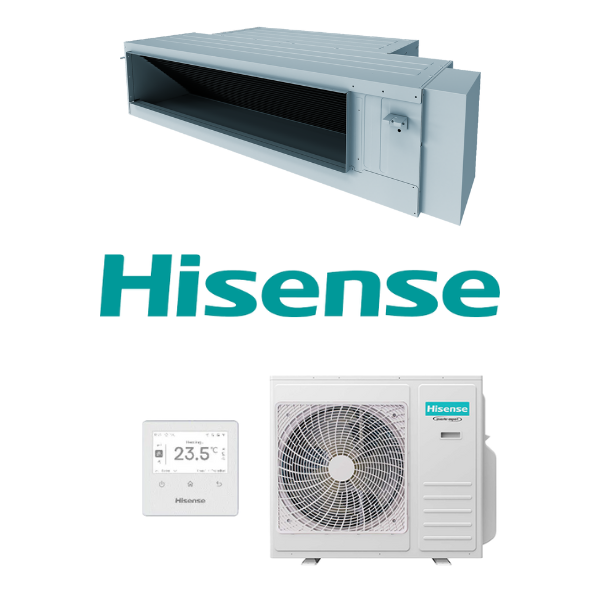

Hisense AUD-100UXP-KIT 10.0kW Ducted Single Phase System - Includes Programmable Zone Controller and Outdoor Unit AUW-100U4RK1
- Zone Control– Capability to control or customise the air conditioning in different zones or rooms.
- Large Airflow- Experience high airflow pressure with various piping options.
- Wi-Fi Control– Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
- Easy Installation– The design allows for convenient installation and maintenance.
(AUD-100UXP-KIT)
| System | AUD-85UXP-KIT | AUD-100UXP-KIT | AUD-125UXP-KIT | AUD-140UXP-KIT | AUD-160UXP-KIT |
|---|---|---|---|---|---|
| Indoor Unit | AUD-85UX4RSH1 | AUD-100UX4RSH1 | AUD-125UX4RSH1 | AUD-140UX4RSH1 | AUD-160UX4RSH1 |
| Outdoor Unit | AUW-85U4RK1 | AUW-100U4RK1 | AUW-125U4RH1 | AUW-140U4RH1 | AUW-160U4RH1 |
| Rated Cooling Capacity (kW) | 8.5 | 10.0 | 12.5 | 14.0 | 16.0 |
| Rated Heating Capacity (kW) | 10.0 | 11.0 | 15.0 | 17.0 | 18.9 |
| Rated Input Power Cool/Heat (kW) | 2.54 / 2.60 | 3.03 / 2.90 | 3.61 / 3.78 | 4.09 / 4.25 | 4.78 / 4.87 |
| Rated Input Current Cool/Heat (A) | 11.4 / 11.5 | 13.6 / 13.0 | 16.2 / 16.9 | 18.3 / 19.0 | 21.2 / 21.6 |
| Power Supply | 1 Phase, 220-240V, 50Hz | ||||
| EER / COP | 3.35 / 3.85 | 3.30 / 3.79 | 3.60 / 4.10 | 3.55 / 4.00 | 3.35 / 3.88 |
| Airflow (H/M/L) (L/s) | 800 / 640 / 555 | 1020 / 810 / 710 | 1120 / 920 / 780 | ||
| External Static Pressure (Pa) | 250 | ||||
| Indoor Sound Pressure Level @1.5m (H/M/L) (dBA) | 50 / 47 / 44 | 56 / 53 / 49 | 58 / 55 / 51 | ||
| Indoor Unit Net Dimensions (HxWxD) (mm) | 360 x 1520 x 820 | ||||
| Indoor Unit Shipping Dimensions (HxWxD) (mm) | 440 x 1650 x 1055 | ||||
| Outdoor Unit Net Dimensions (HxWxD) (mm) | 750 x 900 x 340 | 1460 x 975 x 330 | |||
| Outdoor Unit Shipping Dimensions (HxWxD) (mm) | 820 x 1060 x 450 | 1590 x 1040 x 435 | |||
| Indoor Unit Net Weight (kg) | 60 | ||||
| Outdoor Unit Net Weight (kg) | 57.5 | 98 | |||
| Refrigerant Type | R32 | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | ||||
| Supply Air Opening (mm) HxW | 245 x 1152 | ||||
| Return Air Opening (mm) HxW | 2 x 400 (Oval) | ||||
| Operating Range Cool/Heat (C) | -10 to 46 / -15 to 24 | -10 to 50 / -15 to 24 | |||
| Outdoor Sound Pressure Level @1m (dBA) | 60 | 62 | |||
| Outdoor Sound Power Level (dBA) | 69 | 77 | |||
| Maximum Pipe Length (m) | 50 | 75 | |||
| Maximum Height Drop (m) | 30 | ||||
| SKU | AUD-100UXP-KIT |
| Brand | Hisense |
| Shipping Weight | 117.5000kg |
| Shipping Cubic | 1.157070000m3 |
| Unit Of Measure | ea |
