Fujitsu ABTG18LVTA 5.2 kW Dual Floor/Ceiling Console

ABTG18LVTA/AOTG18LACC Dual Console Air Conditioner

$2,538.00 Incl GST
$2,307.27 Excl GST
In Stock

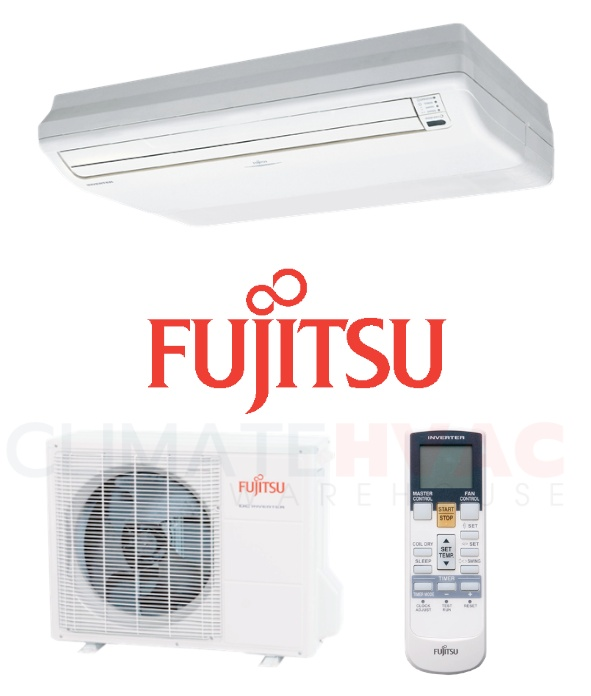

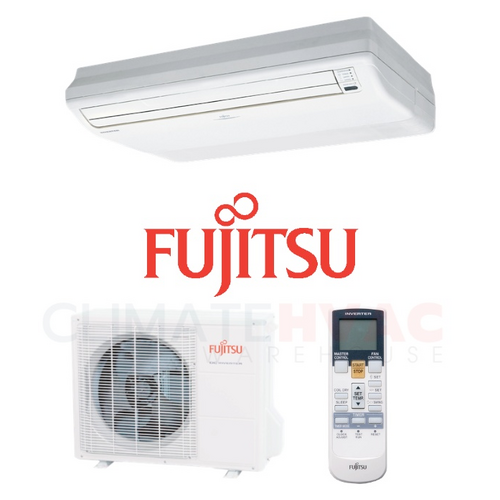

Fujitsu ABTG18LVTA 5.2 kW Dual Floor/Ceiling Console - Includes Outdoor Unit AOTG18LACC

Slim and lightweight, these models have been designed for floor or ceiling installation. Ideal for both residential or commercial applications.

Features:

  • Automatic Louvre
  • Automatic Air Flow Adjustment
  • Sleep Timer
  • Economy Mode



(SET-ABTG18LVTA)

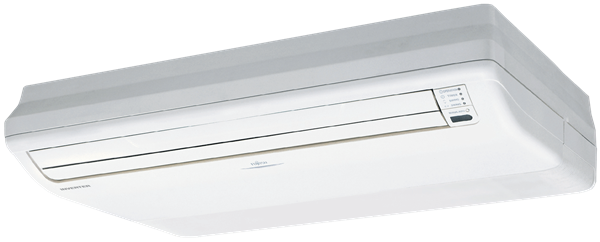

Indoor Unit ABTG18LVTA

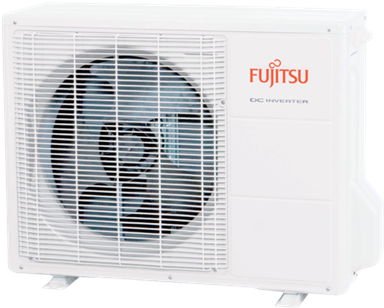

Outdoor Unit AOTG18LACC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 5.2
Heat (kW) 6.0
Capacity Range
Cool (kW) 0.9 ~ 5.9
Heat (kW) 0.9 ~ 7.5
Power Input (Rated)
Cool (kW) 1.51
Heat (kW) 1.66
Max Power
Cool (kW) 1.8
Heat (kW) 2.4
Running Current
Cool (A) 6.40
Heat (A) 7.00
EER / COP 3.44 / 3.61
Energy Star Ratings
Cool 2.5 / 2.5 / 2.5
Heat 2.5 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.480 / 4.075 / 4.159
HSPF (Hot/Average/Cold) 4.437 / 3.903 / 3.356
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.807 / 4.827 / 5.117
HSPF (Hot/Average/Cold) 4.442 / 4.116 / 3.652
Dimensions (HxWxD)
Indoor (mm) 199 x 990 x 655
Outdoor (mm) 620 x 790 x 290
Weight
Indoor (kg) 27
Outdoor (kg) 41
Refrigerant Type R410a
Refrigerant Amount (kg) 1.65
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 30
Max Level Difference
(m) 20
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 12.70
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 217
Heat (l/s) 217
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 44 / 32
Heat (dBA) 44 / 32
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 55
Heat (dBA) 56
Outdoor EPA Sound Power Level (H)
(dBA) 71
SKU SET-ABTG18LVTA
Brand Fujitsu
Shipping Weight 68.0000kg
