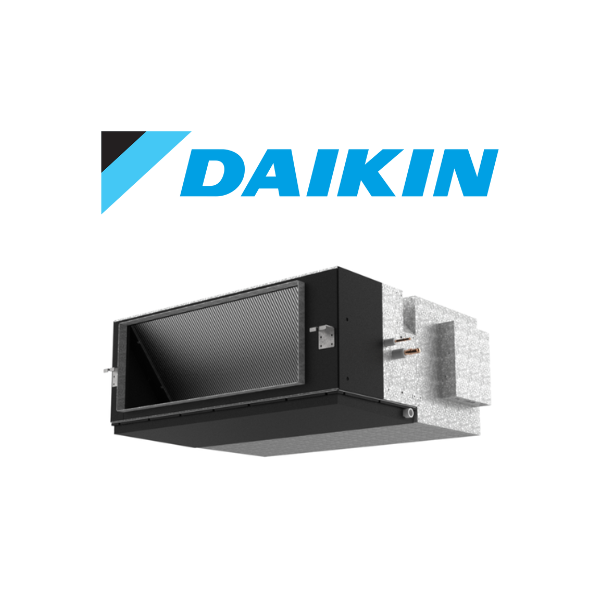

Daikin 18.0kW FXMQ160PV1A Multi Indoor Only Ceiling Concealed Ducted Air Conditioning Unit
Daikin Indoor Multi Ceiling Concealed Ducted Unit
$3,385.45 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
Daikin Ducted 18.0kW FXMQ160PV1A Ceiling Concealed Indoor Multi Unit - Includes BRC1E63 Wired Wall Controller
The FXMQ-PV1A series is Daikin’s new range of large capacity ducted VRV units. They feature a height of only 470mm, DC fan motor and ESP of up to 250Pa. Furthermore to facilitate installation they can also be separated into 2 sections for easier handling. The FXMQ-PV1A series is truly efficient yet powerful.
Key Features:
- Each Model is fitted with a high efficiency DC fan motor with adjustable external static pressure to suit your duct design.
- Automatic airflow adjustment feature allows the fan speed to adjust automatically to suit your duct design during comissioning, simplifying the process and saving time.
- To facilitate installation, the FXMQ160P-250P models can be separated into 2 sections for convenient handling and easier installation through openings in the ceiling.
(FXMQ160PV1A)
| Indoor Unit Name | FXMQ160PV1A | FXMQ180PV1A | FXMQ200PV1A | FXMQ250PV1A |
|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 18.0 | 20.0 | 22.4 | 28.0 |
| Rated Heating Capacity (kW) | 20.0 | 22.4 | 25.0 | 31.5 |
| Power Consumption (Cool/Heat) (W) | 0.65 / 0.65 | 0.64 / 0.64 | 0.81 / 0.81 | |
| Casing | Galvanised Steel Plate | |||
| Air Flow Rate (HH / H / L) (L/s) | 1120 / 955 / 790 | 1160 / 995 / 820 | 1200 / 1025 / 850 | 1400 / 1200 / 1000 |
| Sound Level (HH / H / L) dB(A) | 45 / 41.5 / 38 | 44 / 40.5 / 37 | 46 / 42.5 / 39 | |
| Sound Power (H) dB(A) | 73 | 72 | 74 | |
| Unit Dimensions (H x W x D) (mm) | 470 x 1133 x 919 | 470 x 1333 x 919 | ||
| Unit Weight (kg) | 70 | 79 | 74 | |
| Pipe Sizes (Liquid/Gas) (mm) | 9.5 / 15.9 | 9.5 / 19.1 | 9.5 / 22.2 | |
| SKU | FXMQ160PV1A |
| Brand | Daikin |
| Shipping Weight | 70.0000kg |
| Shipping Width | 0.919m |
| Shipping Height | 0.470m |
| Shipping Length | 1.133m |
| Shipping Cubic | 0.489377000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty on all of their Air Conditioners and Controllers.
