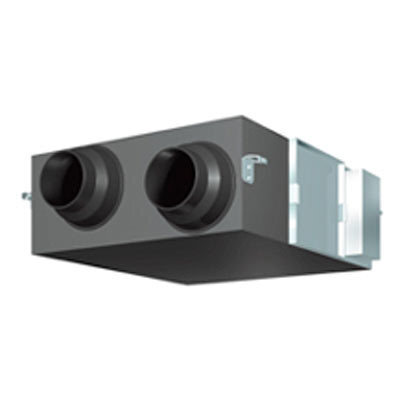

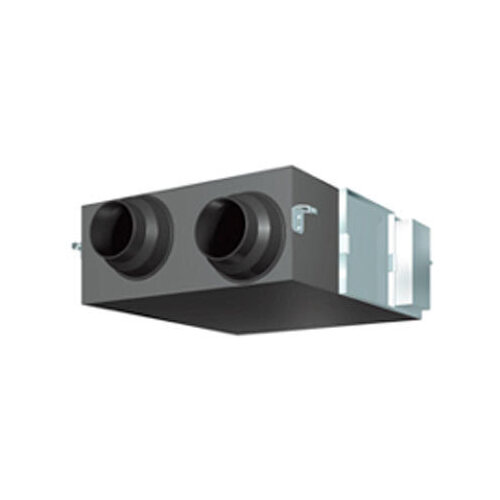

Daikin VAM350GJVE 97.2L/s ERV


Price On Application

Daikin's HRV (Heat Reclaim Ventilation) recovers thermal energy lost through ventilation and holds down room temperature changes caused by ventilation, thereby maintaining a comfortable and clean environment. This also curbs the load on the air conditioning system and conserves energy.


Efficient ventilation is a key element of building regulations. Daikin’s heat recovery ventilation modules can be applied as standalone units or incorporated within the air conditioning system. Temperature and humidity are exchanged between the supply and exhaust air, recovering potential energy losses and reducing the air conditioning loads. The HRV modules feature a high efficiency VAM heat exchanger which enables the exchange of both sensible and latent heat energy and substantially increasing the energy transfer capacity.


The Daikin VAM350GJVE has an airflow of 97.2 L/s (350m3/h) with a temperature exchange efficiency rating from 79% - 82%.



Power Supply Ø, V, Hz 1, 220 - 240 / 220, 50 / 60
Temp. Exchange Efficience (%) [50Hz/60Hz] Ultra-High 79
High 79
Low 82
Enthalpy Exchange Efficiency (%) [50Hz/60Hz] For Heating Ultra-High 70
High 70
Low 77
For Cooling Ultra-High 66
High 66
Low 70
Sound Level dB(A) [50Hz/60Hz] Heat Exchange Mode Ultra-High 31.5 - 33
High 30 - 31.5
Low 23 - 25
Bypass Mode Ultra-High 33 - 34.5
High 31.5 - 33
Low 24.5 - 26.5
Casing   Galvanized Steel Plate
Insulation Material   Self-extinguishable Polyurethane Foam
Dimensions (HxWxD) mm 306 x 879 x 800
Weight kg 32
Heat Exchange System   Air to air cross tow total heat exchange
Heat Exchange Element Material   Specially processed nonflammable paper
Air Filter   Multidirectional Fibrous Fleeces
Fan Type   Sirroco Fan
Air Flow Rate (L/h) [50 Hz/60 Hz] Ultra-High 350
High 350
Low 230
External Static Pressure (Pa) [50Hz/60Hz] Ultra-High 169
Brand Daikin
Shipping Weight 32.0000kg
Shipping Width 0.879m
Shipping Height 0.306m
Shipping Length 0.800m

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
