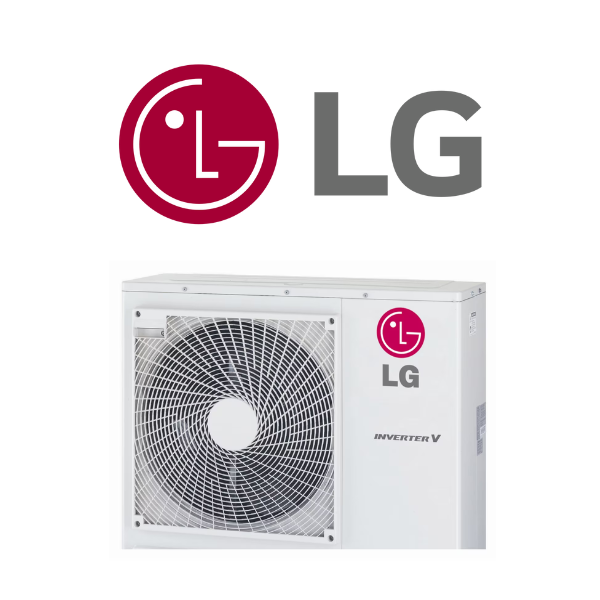

LG UHXM70MA2 7.0kW Outdoor Only Multi Air Conditioning Unit (4 Ports)
LG Outdoor Multi Unit (4 Ports)
$1,785.45 Excl GST
*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.
LG UHXM70MA2 7.0kW Outdoor Multi Air Conditioning Unit (4 Ports)
Easy & efficient installation of outdoor unit will provide the best solution for small offices and shops in addition to apartments. Using LG inverter technology, LG Multi achieves a wide range of capacity which is from 25% ~ 120% in cooling mode and from 25% ~ 120% in heating mode to facilitate faster cooling and heating. The LG multi system achieves operation up to Max. ambient conditions of 46oC in cooling mode and down to -10 oC in heating mode.
Key Features
- BLDC (Brushless Direct Current motor) Compressor
- Optimised Heat Exchanger Path
- Wide Operating Conditions
- Improved Grille and Fan
(UHXM70MA2)
| Outdoor Unit Name | UHXM55MA2 | UHXM70MA2 | UHXM90MA1 |
|---|---|---|---|
| Cooling Capacity (kW) | 5.3 | 7.0 | 8.8 |
| Heating Capacity (kW) | 6.3 | 8.4 | 10.1 |
| Power Input Cool/Heat (kW) | 1.29 / 1.53 | 1.67 / 1.80 | 2.20 / 2.20 |
| Running Current Cool/Heat (A) | 6.0 / 7.0 | 7.2 / 8.1 | 9.9 / 9.8 |
| EER / COP | 4.57 / 4.15 | 4.59 / 4.59 | 4.26 / 4.58 |
| Airflow Rate I/s | 517 | 500 | |
| Sound Pressure Cool/Heat dBA | 50 / 52 | 51 / 53 | |
| Unit Dimensions (HxWxD) (mm) | 655 x 870 x 320 | 834 x 950 x 330 | |
| Unit Weight (kg) | 45 | 64 | |
| Refrigerant Type/Charge (g) | R410A / 1700 | R410A / 3200 | |
| Refrigerant Additional Charge (g/m) | 20 | ||
| Operation Range Cool/Heat Min-Max | -10 to 48 / -18 to 18 | ||
| Circuit Breaker (A) | 20 | 25 | |
| Piping Length Total/Per Branch (m) | 50 / 25 | 70 / 25 | 75 / 25 |
| Piping Elevation Difference (m) | IDU-ODU 15 / ODU-IDU 7.5 | ||
| Pipe Sizes (mm) (Liquid/Gas) | (6.35 + 9.52)x3 | (6.35 + 9.52)x4 | (6.35 + 9.52)x5 |
| SKU | UHXM70MA2 |
| Brand | LG |
| Shipping Weight | 64.0000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.834m |
| Shipping Length | 0.950m |
| Shipping Cubic | 0.261459000m3 |
| Unit Of Measure | ea |
