150mm R1 Flexible Duct (6m)

AC Accessory

$35.00 Incl GST
$31.82 Excl GST
In Stock

Flex Duct R1.0


6m R1 Flexible Duct

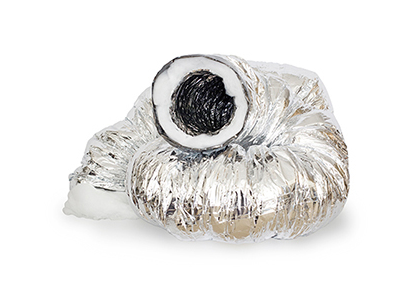

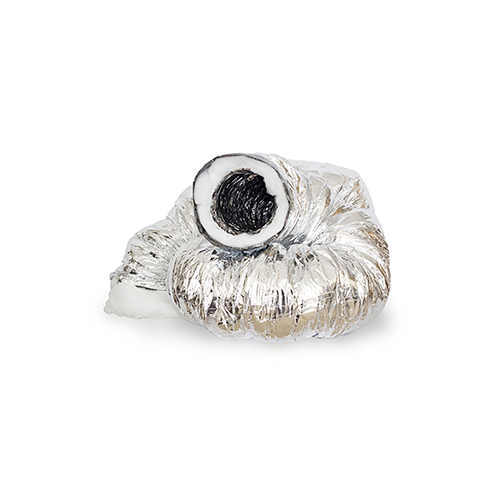

Climate HVAC R1.0 Flexible Duct is used to transport heated or cooled air from the unit into your home and vice versa through the grilles or diffusers. Supplied in 6m lengths, it is commonly used on ducted reverse cycle, evaporative and gas heating systems in a residential setting but can also be specified for commercial use.

Available in sizes ranging between 150-500mm, it meets all requirements of Australian Standards AS 4254.1 2012 and Building Codes of Australia Domestic and Commercial Air Handling Systems. The duct has a black inner core with a metalised outer surface multi-layered construction containing high-level grade flame retardant water based adhesive with high tensile wire helix encapsulated.

The Metalised Outer Layer has a multi-layered construction containing high quality grade flame retardant adhesive. The Polyester Insulation Blanket achieves a thermal rating of R1.0 with a thickness of 70mm. The operating pressure range is 1000 Pa positive to 200 Pa negative and the operating temperature range is -10C to +80C.

(PF-150-500-6-R1)

SKU PF-150-500-6-R1
Brand Accessories
Unit Of Measure ea
