Daikin AirHub Touchscreen and Module

Daikin AirHub Touchscreen controller and Module

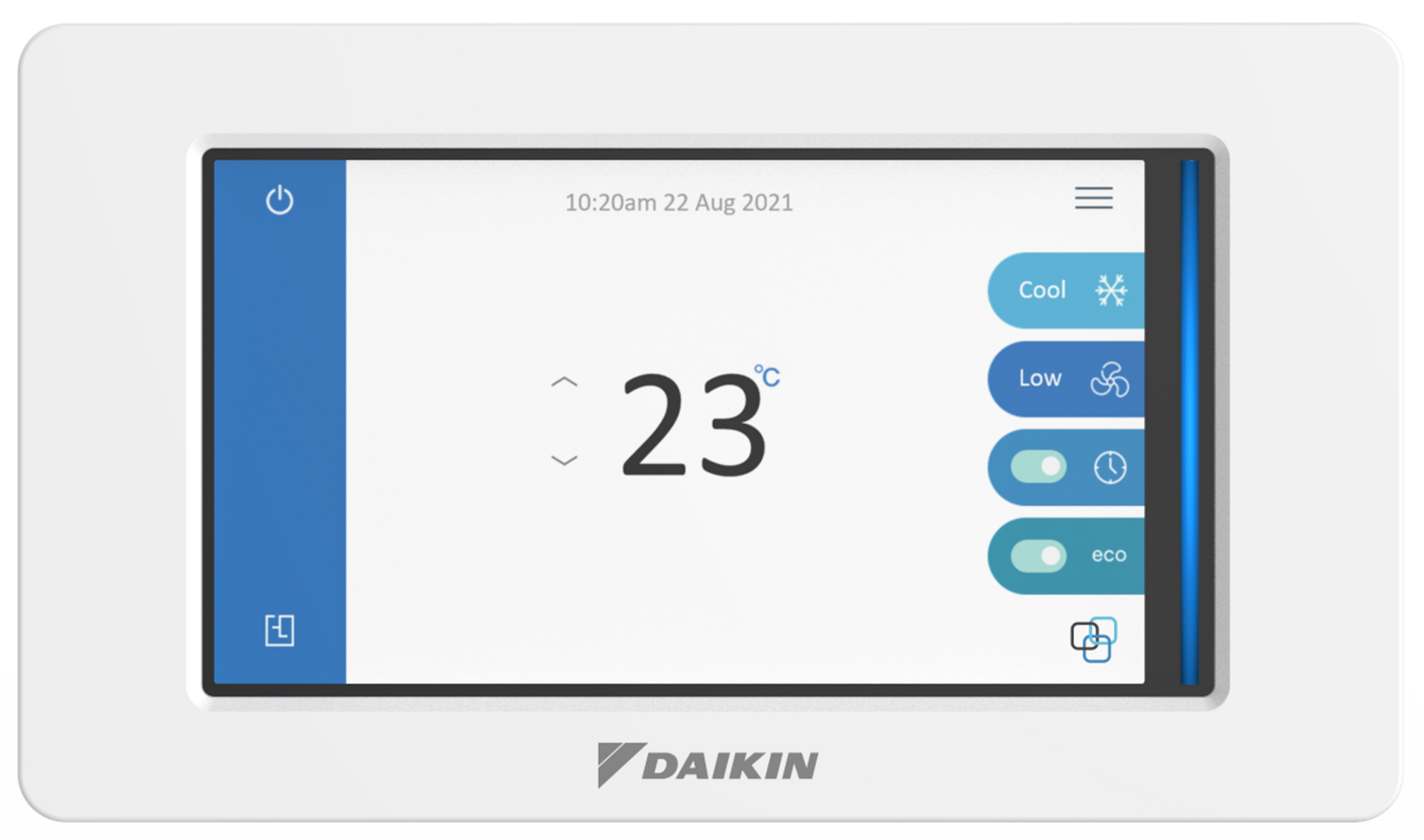

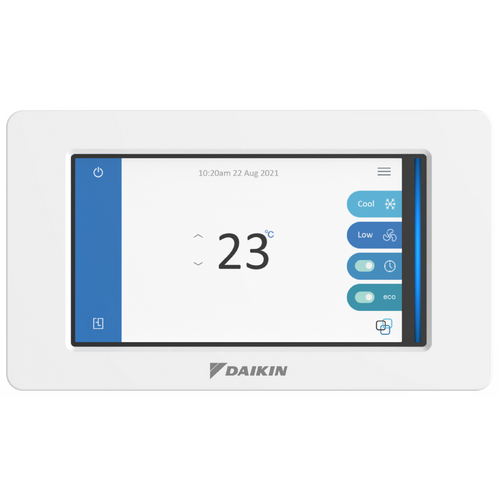

The Daikin AirHub Touchscreen controller boasts a modern aesthetic, user-friendly interface, and cutting-edge capabilities. It empowers you to achieve precise temperature management and unparalleled comfort throughout your home.

Touchscreen controller Main and Sub units

The touchscreen Sub unit are secondary controllers that can be installed in seperate rooms and require a central Main unit.

Features

Touch Operation

7” colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.
Two Versions

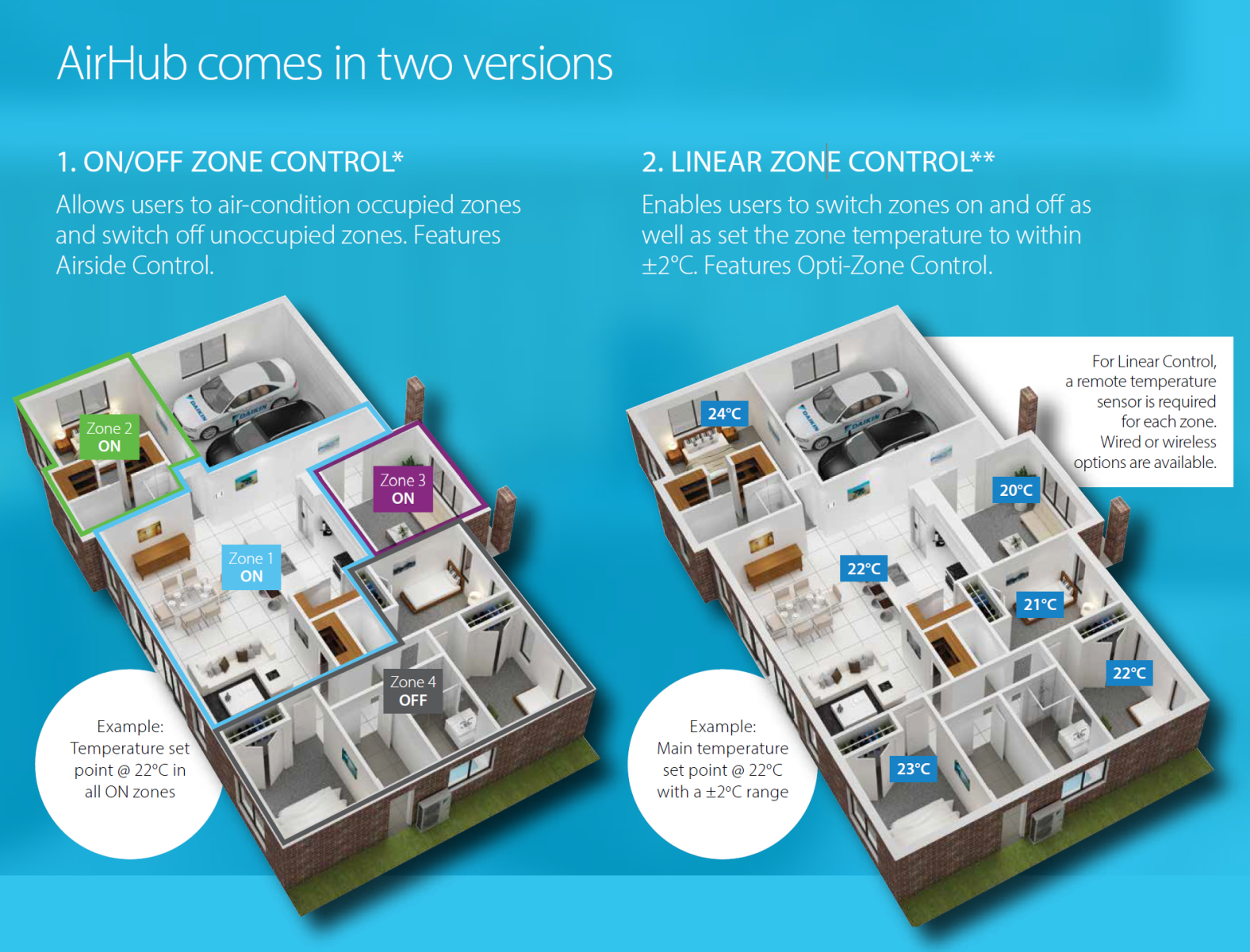

Both On/Off or Linear Control options available in either a 4 or 8 zone design. For details on these control methods, see brochure.
Optional Wireless Sensors

Wireless remote temperature sensors are available, ideal for homes with internal brick walls.
On/Off Timer

Program on and off times within the day to suit your needs.
Weekly Schedule Timer

Program on and off times, including when to open/close zones and the temperature sensor to use for On/Off Control option.
Eco Settings

Setpoint Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your system's energy consumption.

(DaikinAirHubKits)

AIRHUB ITEMS
BRCMTZCB	Touchscreen controller Main unit
BRCSTZCB	Touchscreen controller Sub unit
BRC24TZ4B	4 Zones, On/Off 24V Zone box
BRC24TZ8B	8 Zones, On/Off 24V Zone box
BRC24TLZ4B	4 Zones, Linear 24V Zone box
BRC24TLZ8B	8 Zones, Linear 24V Zone box
Touchscreen Contoller Size
H x W x D (mm)	134 x 232 x 64 (11mm Flush)
Screen size (Diagonal)	7.00"

SKU	DaikinAirHubKits
Brand	Daikin
Shipping Weight	2.0000kg

Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
