Daikin FDYA160 16.0kW Premium 1 Phase Inverter Ducted Unit

FDYA160AV1/RZAS160CV1 Ducted Unit Air Conditioner

$7,068.00 Incl GST
$6,425.45 Excl GST
Sold Out


This product has been superseded by Daikin FDYA160A-C2V

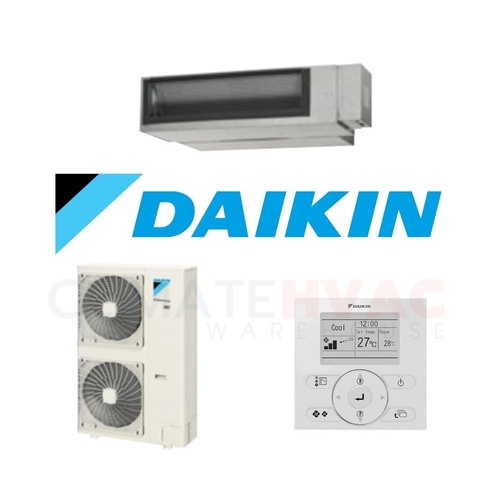

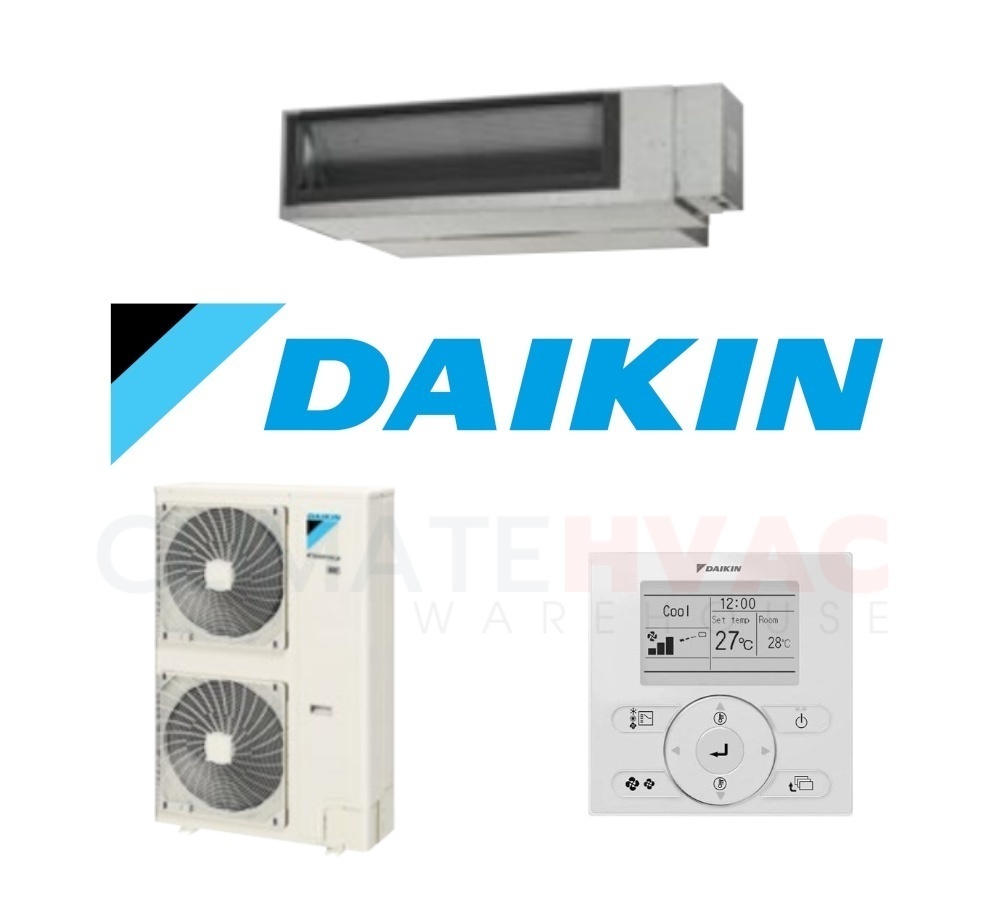

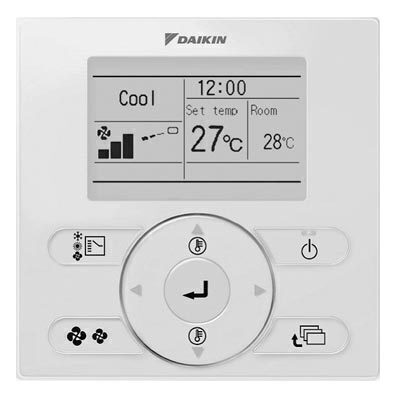

Daikin FDYA160 16.0kW 1 Phase Ducted Unit - Includes BRC1E63 Wired Controller & Outdoor Unit RZAS160CV1

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter series is the ultimate ducted solution.



Features:

  • Heating or cooling your entire home
  • Small to large houses
  • Retrofitting an old R22 ducted system


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYA160A-CV)

Indoor Unit FDYA160AV1

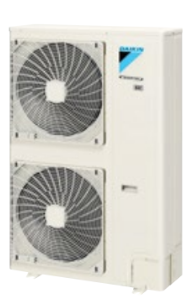

Outdoor Unit RZAS160CV1
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 16.0
Heat (kW) 18.0
Capacity Range
Cool (kW) 7.3 ~ 17.0
Heat (kW) 7.3 ~ 20.0
Power Input (Rated)
Cool (kW) 4.85
Heat (kW) 4.65
EER/COP 3.30 / 3.87
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.77 / 4.38 / 4.56
HSPF (Hot/Average/Cold) 3.96 / 3.65 / 3.21
Drain Size (mm) ID 25 / OD 32
Duct Sizes
Supply (mm) 295 x 1152
Return (mm) 2 x 400 (Oval)
Dimensions (HxWxD)
Indoor (mm) 400 x 1505 x 980
Outdoor (mm) 1430 x 940 x 320
Weight
Indoor (kg) 60
Outdoor (kg) 99
Refrigerant Type R32
Max Pipe Length (m) 75
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Connection Type Flare
Ambient Temperature
Cool (°C) -5 ~ 50
Heat (°C) -15 ~ 16
Indoor Airflow Rate
(l/s) 950 / 1120
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 47.2
Heat (dBA) 49.6
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 56
Heat (dBA) 58
Outdoor EPA Sound Power Level (H)
(dBA) 75
SKU FDYA160A-CV
Brand Daikin
Shipping Weight 159.0000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
