Daikin FDYAN160A-CV 16.0kW Ducted 1 Phase Air Conditioning System

FDYAN160AV1 / RZA160CV1 Daikin Ducted

$5,997.00 Incl GST
$5,451.82 Excl GST
Sold Out


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

This product has been superseded by Daikin FDYAN160A-C2V

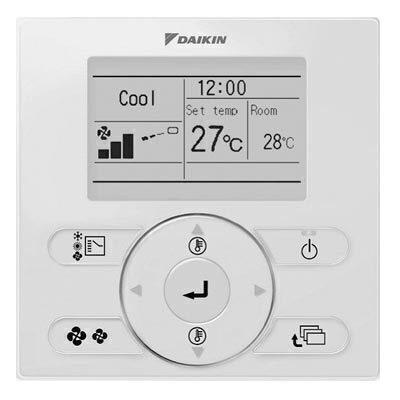

Daikin FDYAN160 16.0kW 1 Phase Ducted Unit - Includes BRC1E63 Wired Controller

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.



Features:

  • Heating or cooling your entire home
  • Small to large houses
  • Houses with limited roof space and outdoor space


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYAN160A-CV)

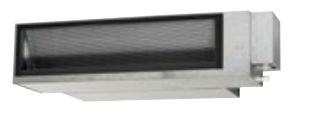

Indoor Unit FDYAN160AV1

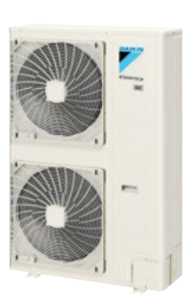

Outdoor Unit RZA160CV1
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 15.5
Heat (kW) 18.0
Capacity Range
Cool (kW) 7.3 ~ 16.3
Heat (kW) 7.3 ~ 18.2
Power Input (Rated)
Cool (kW) 4.95
Heat (kW) 4.90
EER/COP 3.13 / 3.67
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.05 / 3.76 / 3.87
HSPF (Hot/Average/Cold) 3.87 / 3.53 / 3.12
Drain Size (mm) ID 25 / OD 32
Duct Sizes
Supply (mm) 245 x 1152 (Flange)
Return (mm) 2 x 400 (Oval)
Dimensions (HxWxD)
Indoor (mm) 360 x 1520 x 935
Outdoor (mm) 1430 x 940 x 320
Weight
Indoor (kg) 56
Outdoor (kg) 99
Refrigerant Type R32
Max Pipe Length (m) 50
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Connection Type Flare
Ambient Temperature
Cool (°C) -5 ~ 46
Heat (°C) -15 ~ 16
Indoor Airflow Rate
(l/s) 950 / 1120
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 47.9
Heat (dBA) 50.7
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 56
Heat (dBA) 58
Outdoor EPA Sound Power Level (H)
(dBA) 75
SKU FDYAN160A-CV
Brand Daikin
Shipping Weight 155.0000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
