Daikin FDYBA25A-G2V 2.5kW Bulkhead 1 Phase Air Conditioning System
FDYBA25AV1 / RZAC25G2V1 Daikin Bulkhead Ducted
$1,532.73 Excl GST

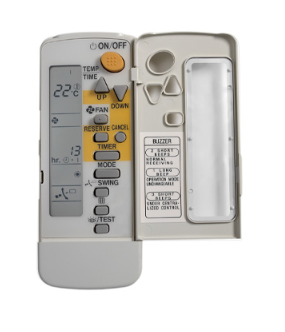

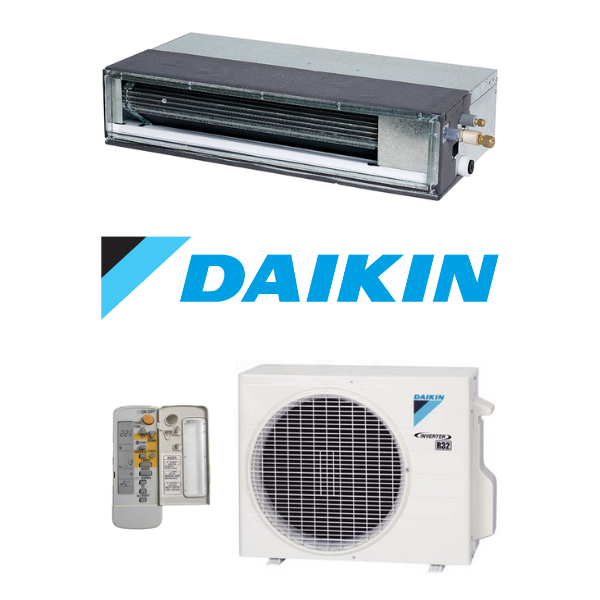

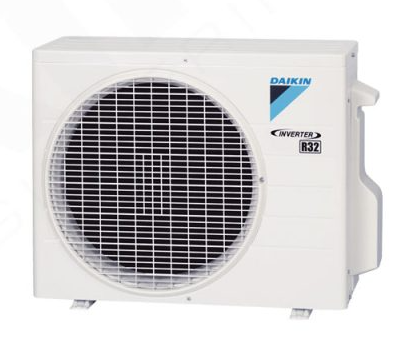

Daikin FDYBA25A-G2V 2.5kW Bulkhead Single Phase System - Includes Wireless Remote Controller and Outdoor Unit RZAC25G2V1

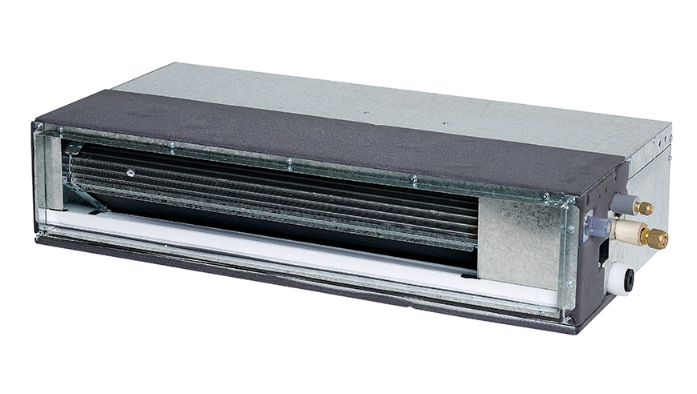

The Bulkhead series is the perfect selection for air conditioning spaces that demand a subtle installation approach. The indoor unit seamlessly integrates into the ceiling, with only the suction air and discharge grilles visible within your living space, offering ample room for furniture, decor, and fixtures. This discreet Bulkhead range operates almost silently, preserving the tranquility and aesthetics of your interior while delivering optimal climate control.
Key Features:
-
Compact Performance - Delivering peak performance within a compact, 450mm deep package, this model is ideal for wardrobe installations.
-
Quiet Operation - The noise levels are exceptionally discreet, operating at a whisper-quiet 19dBA (low fan speed, 35 Class Model).
-
Built-in Condensate Pump - The DC condensate pump is included as a standard feature, offering a 750mm lift capacity.
-
3D Auto Swing Grille (Optional) -Motorized louvres, both vertically and horizontally, are installed to facilitate 3-D airflow distribution, ensuring that air circulates effectively to all corners of the room.
* Please note that for the 25 Class, you should use the BDG20A09A1 model, for the 35-50 Class, the BDG20A15A1 is recommended, and for the 60-71 Class, the BDG20A20A1 model is suitable. These options are exclusively compatible with the BRC1E63 controller.
-
Auto Clean Air filter module (Optional) - This module effectively maintains the internal filter's cleanliness by gathering and storing dust in a user-friendly vacuum port for hassle-free removal.
* Please note that for the 25 Class, the appropriate model is BAE20A62, for the 35-50 Class, BAE20A82 is recommended, and for the 60-71 Class, BAE20A102 is the suitable choice. These modules increase the depth by 188mm and are exclusively compatible with the BRC1E63 controller.
-
Australian Made - Indoor Units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate
(FDYBA25A-G2V)
System | FDYBA25A-G2V | FDYBA35A-G2V | FDYBA50A-G2V | FDYBA60A-G2V | FDYBA71A-G2V |
---|---|---|---|---|---|
Indoor Unit | FDYBA25AV1 | FDYBA35AV1 | FDYBA50AV1 | FDYBA60AV1 | FDYBA71AV1 |
Outdoor Unit | RZAC25G2V1 | RZAC35G2V1 | RZAC50G2V1 | RZAC60G2V1 | RZAC71G2V1 |
Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 | 7.1 |
Rated Heating Capacity (kW) | 3.5 | 4.0 | 6.0 | 7.0 | 8.0 |
Power Supply | 1 Phase, 220-240V, 50Hz | ||||
Power Input (Rated) Cool/Heat (kW) | 0.60 / 0.97 | 1.02 / 1.11 | 1.37 / 1.73 | 1.70 / 1.80 | 2.12 / 2.22 |
EER / COP | 4.17 / 3.61 | 3.45 / 3.60 | 3.65 / 3.47 | 3.53 / 3.89 | 3.35 / 3.60 |
TCSPF (Residential) Hot/Avg/Cold | 4.82 / 4.11 / 4.04 | 4.37 / 3.88 / 3.92 | 5.09 / 4.20 / 4.19 | 5.21 / 4.38 / 4.45 | 4.61 / 4.26 / 4.41 |
HSPF (Residential) Hot/Avg/Cold | 4.29 / 3.64 / 3.05 | 4.53 / 4.06 / 3.69 | 4.76 / 4.12 / 3.58 | 5.28 / 4.58 / 3.98 | 6.09 / 4.13 / 3.28 |
Airflow Rate (Nominal) (L/s) | 150 | 195 | 240 | 325 | |
Indoor Sound Level @1.5m Discharge (dBA) | 41.6 | 43.1 | 45.3 | 47.7 | |
Indoor Sound Level @1.5m Suction (dBA) | 40.8 | 38.9 | 41.2 | 46.2 | |
Indoor Sound Level @1.5m Casing Breakout (dBA) | 30.1 | 31.6 | 33.8 | 35.6 | |
Piping Length (m) | 20 | 30 | |||
Indoor Fan Speeds | 5 Steps, Quiet and Automatic | ||||
Indoor Unit Dimensions (H x W x D) (mm) | 200 x 700 x 450 | 200 x 900 x 450 | 200 x 1100 x 450 | ||
Outdoor Unit Dimension (H x W x D) (mm) | 550 x 675 x 284 | 595 x 845 x 300 | 695 x 930 x 350 | ||
Indoor Unit Weight (kg) | 18 | 21 | 24 | ||
Outdoor Unit Weight (kg) | 28 | 64 | 128 | ||
Compressor Type | Hermetically Sealed Swing Type | ||||
Refrigerant | R32 | ||||
Pipe Sizes (Liquid/Gas) (mm) | 6.4 / 9.5 | 6.4 / 12.7 | |||
Supply Air Opening (Flange) (mm) HxW | 153 x 660 | 153 x 860 | 153 x 1060 | ||
Return Air Opening (mm) | 163 x 575 | 163 x 775 | 163 x 975 | ||
Outdoor Operating Range Cool/Heat (C) | -10 to 50 / -15 to 18 | ||||
EPA Sound Power Level (dBA) | 60 | 62 | 63 | 67 | |
Outdoor Sound Level @1m Cool/Heat (dBA) | 45 / 48 | 47 / 48 | 47 / 50 | 48 / 51 | 53 / 55 |
SKU | FDYBA25A-G2V |
Brand | Daikin |
Shipping Weight | 46.0000kg |
Shipping Cubic | 0.168435000m3 |
Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
