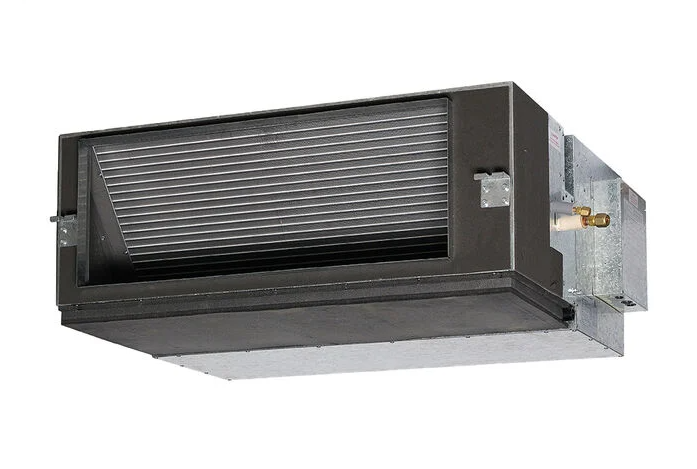

Daikin FDYQN200LC-MY 19.5kW Ducted R410A 3 Phase Air Conditioning System
FDYQN200LCV1 / RZQ100MY1 Daikin 3PH Standard Ducted
$5,985.45 Excl GST

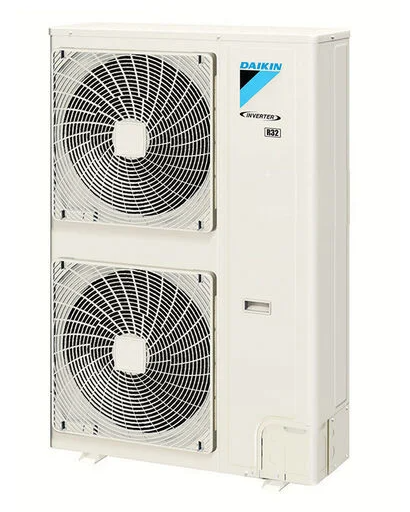

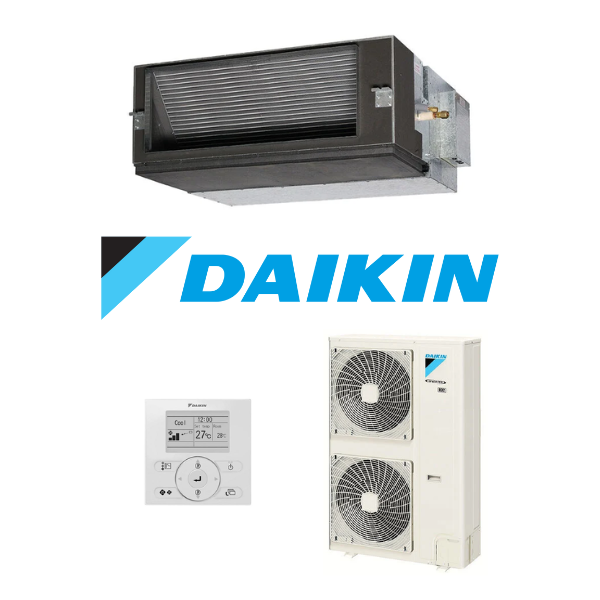

Daikin FDYQN200LC-MY 19.5kW Ducted Standard Inverter Three Phase System - Includes Wall Controller and Outdoor Unit RZQ200MY1
Crafted to offer a space-efficient and high-performance design, Daikins Inverter series is an optimal choice for seamlessly integrating into the confined roof spaces of contemporary residences.
Key Features:
-
Improved Energy Efficiency - Attained through the use of a DC fan motor, cross-pass heat exchanger and increased outdoor coil passes.
-
Night Quiet Mode - Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
-
Space Saving Outdoor Unit - Models up to 19.5kW are encased in a space saving side discharge outdoor unit, allowing for flexible placement.
-
Demand Respone Enabled Ducted (DRED) - A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
-
Australian Made - The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.
(FDYQN200LC-MY)
| System | FDYAN71A-C2Y | FDYAN85A-C2Y | FDYAN100A-C2Y | FDYAN125A-C2Y | FDYAN140A-C2Y | FDYQN160A-C2Y | FDYQN180LC-M2Y | FDYQN200LC-MY | FDYQN250LB-LY |
|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | FDYAN71AV1 | FDYAN85AV1 | FDYAN100AV1 | FDYAN125AV1 | FDYAN140AV1 | FDYAN160AV1 | FDYQN180LCV1 | FDYQN200LCV1 | FDYQN250LBV1 |
| Outdoor Unit | RZA71C2Y1 | RZA85C2Y1 | RZA100C2Y1 | RZA125C2Y1 | RZA140C2Y1 | RZA160C2Y1 | RZQ180M2Y1 | RZQ200MY1 | RZQ250LY1 |
| Rated Cooling Capacity (kW) | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 15.5 | 18.0 | 19.5 | 23.5 |
| Rated Heating Capacity (kW) | 7.5 | 10.0 | 12.5 | 15.0 | 16.5 | 18.0 | 20.0 | 22.4 | 26.8 |
| Power Supply | 3 Phase, 380-415V, 50Hz | ||||||||
| Power Input (Rated) Cool/Heat (kW) | 2.20 / 1.93 | 2.53 / 2.80 | 3.10 / 3.35 | 3.94 / 4.00 | 4.30 / 4.50 | 4.95 / 4.90 | 5.82 / 6.11 | 6.11 / 6.85 | 7.85 / 8.47 |
| EER / COP | 3.23 / 3.89 | 3.36 / 3.57 | 3.23 / 3.73 | 3.17 / 3.75 | 3.26 / 3.67 | 3.13 / 3.67 | 3.09 / 3.27 | 3.19 / 3.27 | 2.99 / 3.16 |
| TCSPF (Residential) Hot/Avg/Cold | 4.44 / 3.91 / 3.98 | 4.28 / 3.84 / 3.89 | 4.28 / 3.87 / 3.96 | 4.25 / 3.90 / 4.01 | 4.19 / 3.86 / 3.96 | 4.05 / 3.76 / 3.86 | 3.61 / 3.15 / 3.12 | 4.05 / 3.76 / 3.86 | 3.73 / 3.41 / 3.46 |
| HSPF (Residential) Hot/Avg/Cold | 4.17 / 3.90 / 3.55 | 3.97 / 3.67 / 3.32 | 3.85 / 3.48 / 3.04 | 4.31 / 3.31 / 2.77 | 3.90 / 3.51 / 3.05 | 3.87 / 3.53 / 3.12 | 3.23 / 2.95 / 2.61 | 3.87 / 3.53 / 3.12 | 3.41 / 3.08 / 2.72 |
| Airflow Rate (Nominal/Max) (L/s) | 425 / 566 | 580 / 600 | 680 / 800 | 755 / 840 | 900 / 1000 | 950 / 1120 | 1160 / 1200 | 1400 / 1600 | |
| Indoor Sound Level @1.5m Cool/Heat (dBA) | 37.3 / 40.5 | 42.0 / 42.4 | 43.5 / 45.8 | 44.2 / 45.5 | 46.6 / 47.9 | 47.9 / 50.7 | 45.0 / 45.0 | 46.0 / 46.0 | 49.5 / 49.5 |
| Piping Length (m) | 50 | ||||||||
| Indoor Fan Speeds | H / M / L | ||||||||
| Indoor Unit Dimensions (H x W x D) (mm) | 300 x 1210 x 900 | 360 x 1520 x 935 | 470 x 1200 x 997 | 470 x 1400 x 997 | 500 x 1430 x 970 | ||||
| Outdoor Unit Dimension (H x W x D) (mm) | 990 x 940 x 320 | 1430 x 940 x 320 | 1680 x 930 x 765 | ||||||
| Indoor Unit Weight (kg) | 40 | 45 | 55 | 56 | 70 | 85 | 92 | ||
| Outdoor Unit Weight (kg) | 69 | 78 | 93 | 99 | 138 | 193 | |||
| Compressor Type | Hermetically Sealed Swing Type | Hermetically Sealed Scroll Type | |||||||
| Refrigerant | R32 | R410A | |||||||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | 6.35 / 19.1 | 6.35 / 22.2 | ||||||
| Supply Air Opening (mm) HxW | 185 x 852 | 245 x 1152 | 350 x 918 | 350 x 1118 | 376 x 938 | ||||
| Return Air Opening (mm) | 1 x 400 (Oval) | 2 x 350 (Oval) | 2 x 400 (Oval) | 393 x 918 (Flange) | 393 x 1118 (Flange) | 350 x 1118 (Flange) | |||
| Outdoor Operating Range Cool/Heat (C) | -5 to 46 / -15 to 16 | -5 to 43 / -20 to 16 | |||||||
| EPA Sound Power Level (dBA) | 67 | 70 | 71 | 72 | 73 | 75 | 72 | 74 | 79 |
| Outdoor Sound Level @1m Cool/Heat (dBA) | 48 / 50 | 51 / 54 | 52 / 54 | 53 / 56 | 54 / 56 | 56 / 58 | 57 / 58 | 58 / 59 | 57 / 58 |
| SKU | FDYQN200LC-MY |
| Brand | Daikin |
| Shipping Weight | 223.0000kg |
| Shipping Width | 0.543m |
| Shipping Height | 1.430m |
| Shipping Length | 1.400m |
| Shipping Cubic | 1.086170000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
