Daikin Premium FDYA100A9-C2V 10.0kW Ducted 1 Phase Air Conditioning System
FDYA100AV19 / RZAS100C2V1 Daikin Premium Ducted
$4,840.91 Excl GST

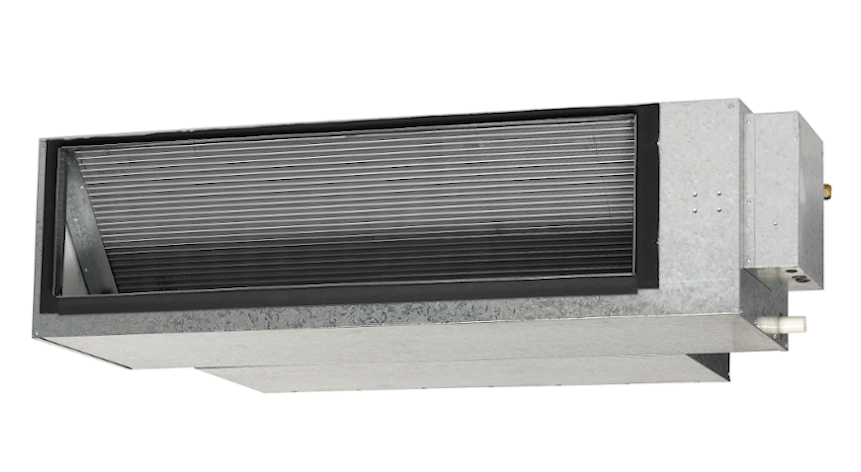

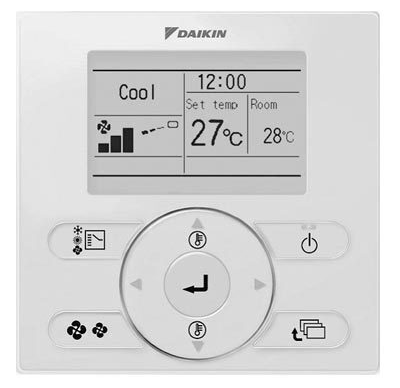

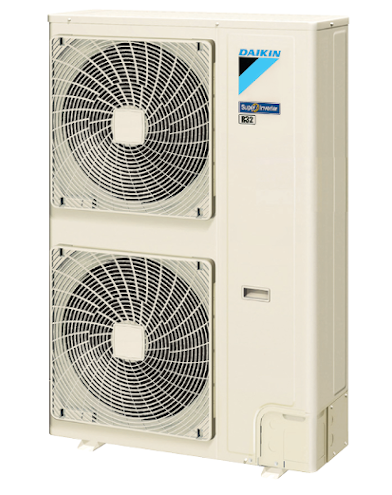

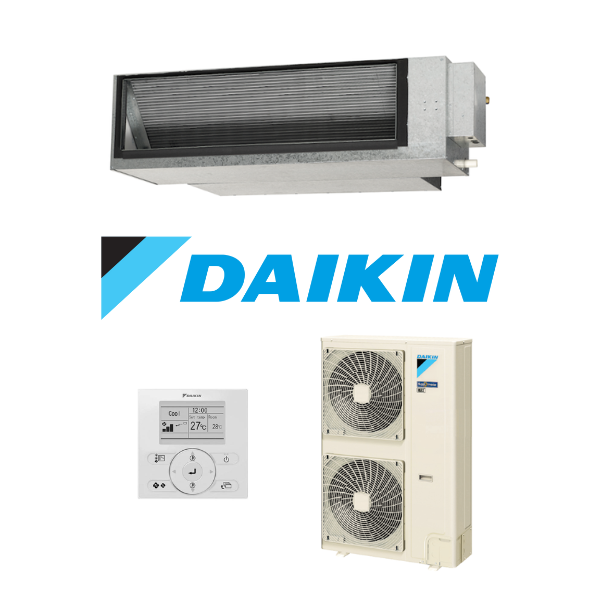

Daikin Premium FDYA100A9-C2V 10.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit RZAS100C2V1
The Daikin Premium Inverter offers exceptional comfort quickly and efficiently. It is designed to provide excellent energy efficiency with flexible design options. The Premium Inverter Ducted range is perfect for discreetly providing air-conditioned comfort across your entire home.
Key Features:
-
Industry leading energy performance - Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
-
Night Quite Mode - Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
-
Demand Respone Enabled Ducted (DRED) - A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
-
R22 backwards compatibility - Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).
-
Australian Made - The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.
(FDYA100A9-C2V)
System Names | FDYA71A9-C2V | FDYA85A9-C2V | FDYA100A9-C2V | FDYA125A9-C2V | FDYA140A9-C2V | FDYA160A9-C2V |
---|---|---|---|---|---|---|
Indoor Unit | FDYA71AV19 | FDYA85AV19 | FDYA100AV19 | FDYA125AV19 | FDYA140AV19 | FDYA160AV19 |
Outdoor Unit | RZAS71C2V1 | RZAS85C2V1 | RZAS100C2V1 | RZAS125C2V1 | RZAS140C2V1 | RZAS160C2V1 |
Rated Cooling Capacity (kW) | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 16.0 |
Rated Heating Capacity (kW) | 7.5 | 10.0 | 12.5 | 15.0 | 16.5 | 18.0 |
Power Supply | 1 Phase, 220-240V, 50Hz | |||||
Power Input (Rated) Cool/Heat (kW) | 1.90 / 1.75 | 2.35 / 2.46 | 2.61 / 3.13 | 3.45 / 3.80 | 3.93 / 4.28 | 4.85 / 4.65 |
EER / COP | 3.74 / 4.29 | 3.62 / 4.07 | 3.83 / 3.99 | 3.62 / 3.95 | 3.56 / 3.86 | 3.30 / 3.87 |
TCSPF (Residential) Hot/Avg/Cold | 5.20 / 4.50 / 4.55 | 4.99 / 4.40 / 4.45 | 4.69 / 4.22 / 4.25 | 4.96 / 4.47 / 4.59 | 5.00 / 4.54 / 4.67 | 4.77 / 4.37 / 4.55 |
HSPF (Residential) Hot/Avg/Cold | 4.79 / 4.34 / 3.86 | 4.43 / 4.04 / 3.60 | 4.43 / 4.07 / 3.62 | 4.72 / 4.08 / 3.45 | 5.01 / 4.12 / 3.41 | 4.55 / 3.97 / 3.41 |
Airflow Rate (Nominal/Max) (L/s) | 425 / 566 | 580 / 600 | 680 / 800 | 755 / 840 | 900 / 1000 | 950 / 1120 |
Indoor Sound Level @1.5m Cool/Heat (dBA) | 37.3 / 40.5 | 42.0 / 42.5 | 42.3 / 45.0 | 44.8 / 46.2 | 45.9 / 47.4 | 47.2 / 49.6 |
Piping Length (m) | 75 | |||||
Indoor Fan Speeds | H / M / L | |||||
Indoor Unit Dimensions (H x W x D) (mm) | 300 x 1210 x 900 | 360 x 1520 x 935 | 400 x 1505 x 980 | |||
Outdoor Unit Dimension (H x W x D) (mm) | 990 x 940 x 320 | 1430 x 940 x 320 | ||||
Indoor Unit Weight (kg) | 40 | 41 | 46 | 56 | 60 | |
Outdoor Unit Weight (kg) | 69 | 78 | 93 | 99 | ||
Compressor Type | Hermetically Sealed Swing Type | |||||
Refrigerant | R32 | |||||
Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | |||||
Supply Air Opening (mm) HxW | 185 x 852 | 245 x 1152 | 295 x 1152 | |||
Return Air Opening (mm) | 1 x 400 (Oval) | 2 x 350 (Oval) | 2 x 400 (Oval) | |||
Outdoor Operating Range Cool/Heat (C) | -5 to 50 / -15 to 16 | |||||
EPA Sound Power Level (dBA) | 67 | 71 | 70 | 71 | 73 | 75 |
Outdoor Sound Level @1m Cool/Heat (dBA) | 48 / 50 | 52 / 53 | 51 / 53 | 52 / 54 | 54 / 56 | 56 / 58 |
SKU | FDYA100A9-C2V |
Brand | Daikin |
Shipping Weight | 139.0000kg |
Shipping Cubic | 0.756844000m3 |
Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
