Fujitsu Lifestyle SET-ASTG34KMTC 9.4kW Wall Split Air Conditioning System

ASTG34KMTC / AOTG34KMTC Fujitsu Wall Split

$2,937.00 Incl GST
$2,670.00 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

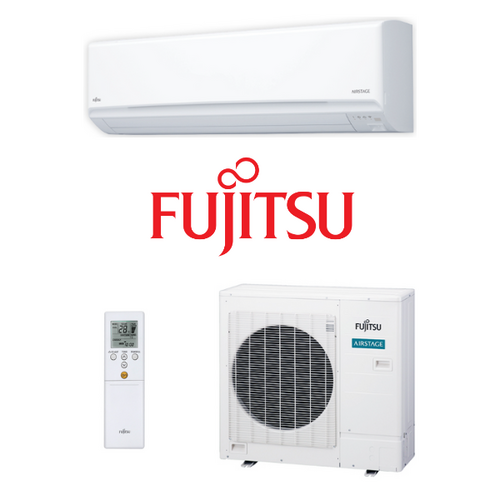

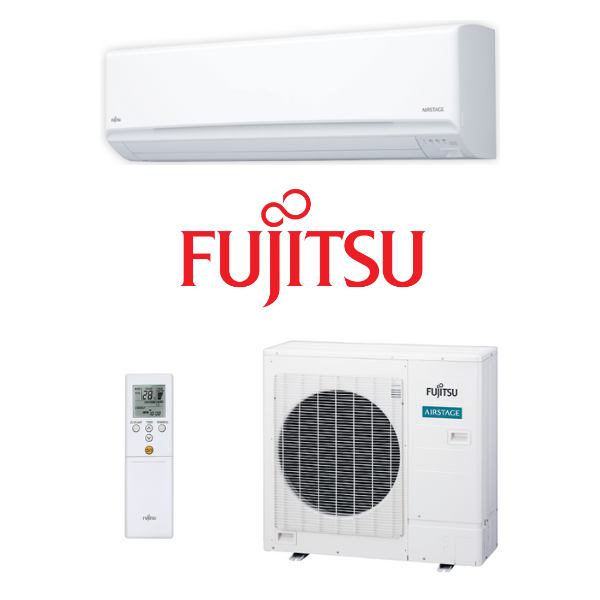

Fujitsu SET-ASTG34KMTC 9.4kW Reverse Cycle Split System with R32 Gas - Includes Outdoor Unit AOTG34KMTC

Ideal for large rooms. With energy management features such as Human Sensor Control, economy mode, and weekly timers, the Lifestyle range makes indoor comfort easy and cost-effective. Energy-efficient, wall mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode have been combined in the Lifestyle wall mounted split system air conditioning range to offer user flexibility and total control around the comfort of their home.

Features:

  • With All DC, electricity loss is decreased and power consumption reduced.
  • Auto Changeover
  • Automatic Air Flow Adjustment
  • Blue Fin Heat Exchanger
  • Human sensor detects movement of people within the conditioned room.
  • Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.
  • R32 Gas

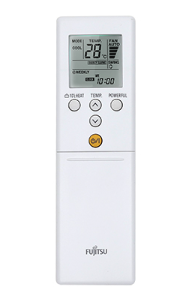

  • Wireless Remote Controller Included

(SET-ASTG34KMTC)

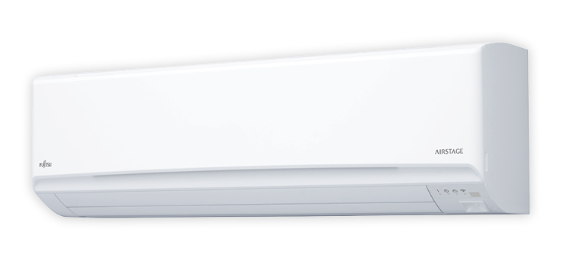

Indoor Unit ASTG34KMTC

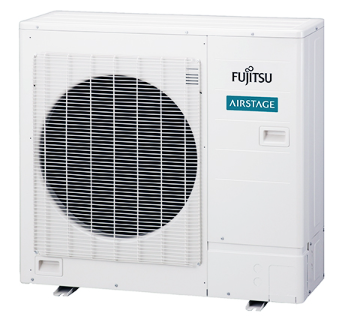

Outdoor Unit AOTG34KMTC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 9.4
Heat (kW) 10.3
Capacity Range
Cool (kW) 2.9 ~ 11.2
Heat (kW) 2.7 ~ 11.7
Power Input (Rated)
Cool (kW) 2.78
Heat (kW) 2.84
Input Power Range
Cool (kW) 0.59 ~ 4.03
Heat (kW) 0.60 ~ 4.24
Running Current
Cool (A) 11.70
Heat (A) 11.90
EER / COP 3.38 / 3.63
Energy Star Ratings
Cool 3.0 / 2.5 / 2.5
Heat 2.0 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.628 / 4.317 / 4.482
HSPF (Hot/Average/Cold) 3.834 / 3.603 / 3.312
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.018 / 5.153 / 5.599
HSPF (Hot/Average/Cold) 3.823 / 3.676 / 3.433
Dimensions (HxWxD)
Indoor (mm) 340 x 1150 x 280
Outdoor (mm) 914 x 970 x 370
Weight
Indoor (kg) 18
Outdoor (kg) 74
Refrigerant Type R32
Refrigerant Amount (kg) 2.00
Pre-Charged to Pipe (m) 30
Max Pipe Length (m) 75
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Indoor Airflow Rate
Cool (l/s) 389
Heat (l/s) 389
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 52 / 34
Heat (dBA) 51 / 33
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 50
Heat (dBA) 54
Outdoor EPA Sound Power Level (H)
(dBA) 65
SKU SET-ASTG34KMTC
Brand Fujitsu
Shipping Weight 92.5000kg
Shipping Cubic 0.437515000m3
Unit Of Measure ea
