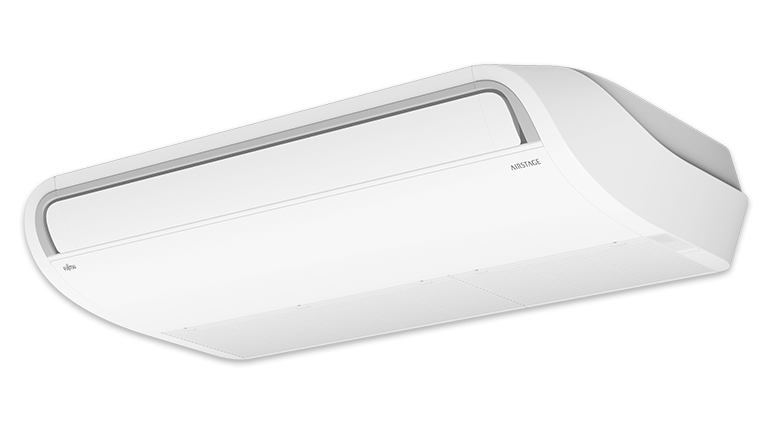

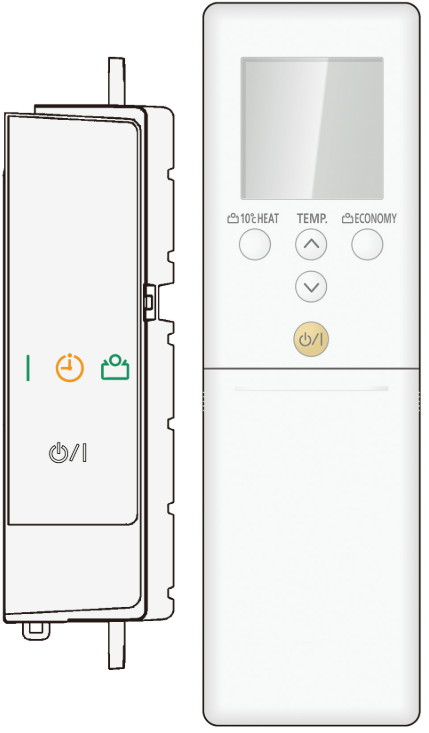

Fujitsu SET-ABTH45KRTA-3PH-YH 12.5kW Under Ceiling R32 Three Phase Air Conditioning System (Wireless Controller)
ABTH45KRTA / AOTH45KRTA Under Ceiling AC
$4,178.18 Excl GST

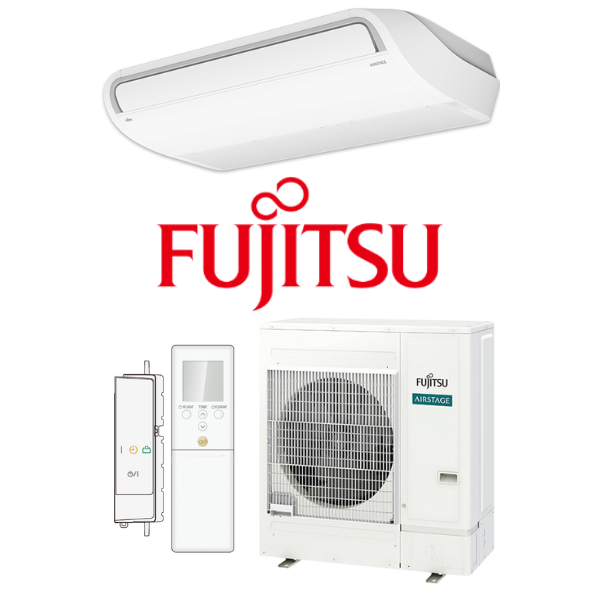

Fujitsu SET-ABTH45KRTA-3PH 12.5kW Under Ceiling R32 Three Phase Air Conditioning System - Includes Outdoor Unit and Choice of Controller (Wired or Wireless)
Fujitsu General’s new range of Ceiling Consoles is the latest solution for energy efficient climate control. The updated range has been elegantly designed with a gently curved aesthetic to suit any room.
Features:
- Auto Restart
- Auto Changeover
- Automatic Air Flow Adjustment
- Blue Fin Heat Exchanger
- Demand Response
- Economy Mode
- On-Off, Program, Sleep and Weekly Timers
- Removable Intake Grill
(SET-ABTH45KRTA-3PH)
| System | SET-ABTH36KRTA-3PH | SET-ABTH45KRTA-3PH | SET-ABTH54KRTA-3PH | |
|---|---|---|---|---|
| Indoor Unit | ABTH36KRTA | ABTH45KRTA | ABTH54KRTA | |

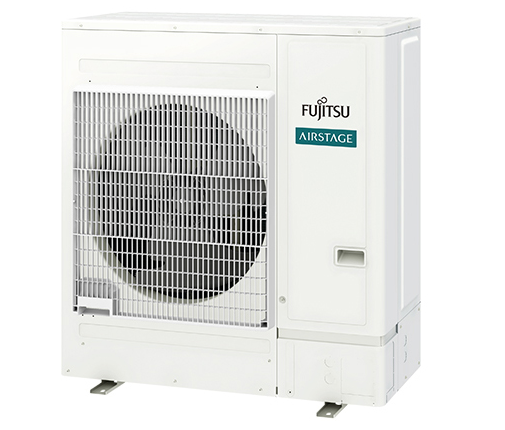

| Outdoor Unit | AOTH36KRTA | AOTH45KRTA | AOTH54KRTA | |
| Cooling Capacity Rated/Min-Max | kW | 10.0 (2.8-11.4) | 12.5 (4.0-14.0) | 13.0 (4.5-15.0) |
| Heating Capacity Rated/Min-Max | 11.2 (2.7-14.0) | 14.0 (4.2-16.5) | 15.5 (4.7-18.0) | |
| Power Supply | 400V / 3 Phase / 50Hz | |||
| EER/COP | 3.22 / 3.75 | 3.02 / 3.70 | 3.02 / 3.65 | |
| Input Power Rated (Max) Cool | kW | 3.11 (4.11) | 4.14 (4.90) | 4.31 (5.19) |
| Input Power Rated (Max) Heat | 2.99 (4.35) | 3.78 (4.90) | 4.25 (5.23) | |
| Star Rating Cooling Hot/Avg/Cold | 3.0 / 3.0 / 3.0 | 3.0 / 2.5 / 3.0 | 3.0 / 2.5 / 3.0 | |
| Star Rating Heating Hot/Avg/Cold | 3.5 / 2.5 / 1.5 | 3.0 / 2.0 / 1.0 | ||
| TCSPF Residential Hot/Avg/Cold | 4.82 / 4.59 / 4.90 | 4.56 / 4.36 / 4.66 | 4.52 / 4.32 / 4.62 | |
| TCSPF Commercial Hot/Avg/Cold | 5.19 / 5.41 / 5.86 | 4.91 / 5.13 / 5.57 | 4.87 / 5.08 / 5.51 | |
| HSPF Residential Hot/Avg/Cold | 5.02 / 4.13 / 3.40 | 4.89 / 4.15 / 3.47 | 4.73 / 3.58 / 2.99 | |
| HSPF Commercial Hot/Avg/Cold | 5.03 / 4.51 / 3.73 | 4.90 / 4.44 / 3.87 | 4.74 / 4.08 / 3.53 | |
| Running Current Cool/Heat | A | 5.2 / 5.0 | 6.8 / 6.1 | 7.0 / 6.6 |
| Moisture Removal | l/hr | 3.1 | 5.2 | 5.0 |
| Indoor Sound Pressure Cool Hi/Qu | dBA | 44 / 32 | 45 / 34 | 48 / 38 |
| Indoor Sound Pressure Hea Hi/Qu | 44 / 32 | 45 / 34 | 48 / 38 | |
| Outdoor Sound Pressure Cool/Heat | 53 / 53 | 55 / 57 | ||
| Outdoor Sound Power | 70 | 71 | 72 | |
| Indoor Air Circulation Cool/Heat | l/sec | 514 / 500 | 528 / 514 | 583 / 583 |
| Indoor Unit Dimensions HxWxD | mm | 235 x 1700 x 705 | ||
| Outdoor Unit Dimensions HxWxD | 788 x 940 x 320 | 998 x 940 x 320 | ||
| Indoor Unit Weight | kg | 38 | ||
| Outdoor Unit Weight | 53 | 67 | ||
| Piping Connects (Liquid/gas) | mm | 9.52 / 15.88 | ||
| Pipe Length Max(Pre-Charged) | m | 50 (30) | ||
| Max Height Difference | 30 | 20 | ||
| Operation Range Cool/Heat | C | -10 to 50 / -15 to 24 | ||
| Refrigerant Type/Amount | kg | R32 / 1500 | R32 / 2180 | |
| SKU | SET-ABTH45KRTA-3PH |
| Brand | Fujitsu |
| Shipping Weight | 105.0000kg |
| Shipping Cubic | 0.581845000m3 |
| Unit Of Measure | ea |
