Best Prices Fujitsu SET-ARTH30KHTA-HP 8.5kW Ducted Air Con Low Cost Installation Brisbane Sydney

Fujitsu SET-ARTH30KHTA-HP 8.5kW Single Phase High Static Ducted High Performance Air Conditioning System

Fujitsu-SET-ARTH30KHTA-HP

Fujitsu-SET-ARTH30KHTA-HP

Fujitsu-SET-ARTH30KHTA-HP

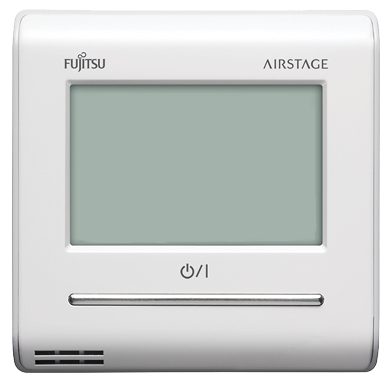

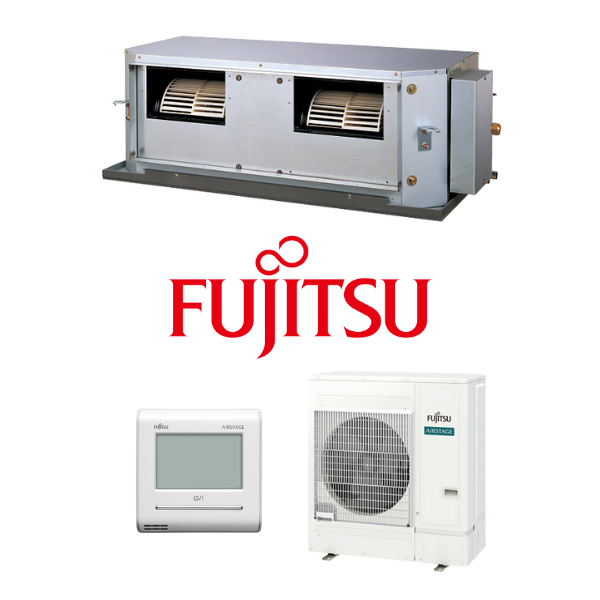

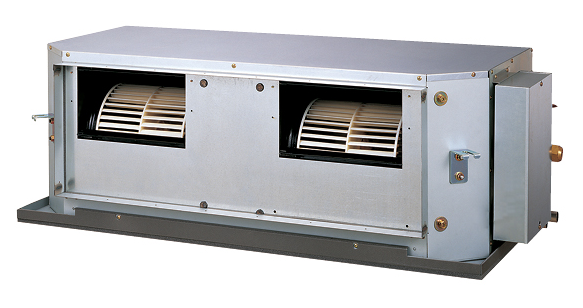

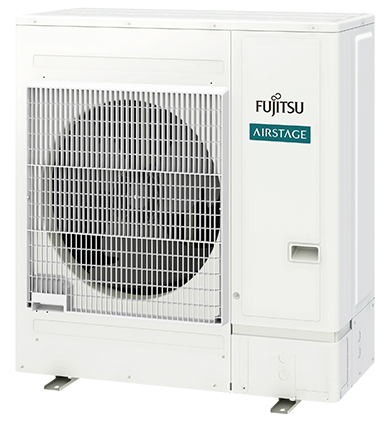

Fujitsu SET-ARTH30KHTA-HP 8.5kW Single Phase High Static Ducted System (High Performance) - Includes AOTH30KCTA Outdoor Unit and Wall Controller

The High Static Single Phase R32 (High Performance) range is available in five models, ranging in capacity from 8.5kW to 16kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.

Key Features:

Zone Control
Auto Restart
Auto Changeover
Blue Fin Heat Exchanger
Connectable Distributing Duct
Connectable Fresh Air Duct
Demand Response
Economy Mode
Filter Sign
On-Off Timer
Automatic Fan Speed Adjustment
Automatic Static Pressure Setting Adjustment
R32 Gas
Wired Remote Controller Included

(SET-ARTH30KHTA-HP)

System Names	SET-ARTH30KHTA-HP	SET-ARTH36KHTA-HP	SET-ARTH45KHTA-HP	SET-ARTH54KHTA-HP	SET-ARTH60KHTB
Indoor Units	ARTH30KHTA	ARTH36KHTA	ARTH45KHTA	ARTH54KHTA	ARTH60KHTB
Outdoor Units	AOTH30KCTA	AOTH36KCTA	AOTH45KCTA	AOTH54KCTA	AOTH60KCTA
Power Source (V/Ph/Hz)	230 / 1 / 50
Rated Cooling Capacity (kW)	8.5	10.0	12.5	14.0	16.0
Rated Heating Capacity (kW)	10.0	12.5	15.0	16.5	18.0
EER / COP	3.90 / 4.55	3.85 / 4.25	3.61 / 4.30	3.58 / 4.13	3.32 / 3.89
Outdoor Sound Power (dBA)	69	70		71
Indoor dimensions (H x W x D) (mm)	400 x 1050 x 500		425 x 1250 x 490		360 x 1400 x 850
Outdoor dimension (H x W x D) (mm)	998 x 940 x 320		1418 x 970 x 370
Indoor Weight (kg)	39		53		69
Outdoor Weight (kg)	64	67	95	101
Pipe Sizes (Liquid/Gas) (mm)	9.52 / 15.88
Pipe Length (m) (Max / Precharged)	75 (30)
Max Height Difference (m)	30
Operation Range Cooling (Min to Max CDB)	-10 to 50
Operation Range Heating (Min to Max CDB)	-15 to 24
Refrigerant Type/Amount (g)	R32 / 2100	R32 / 2500	R32 / 3400	R32 / 3800

SKU	SET-ARTH30KHTA-HP
Brand	Fujitsu
Shipping Weight	103.0000kg
Shipping Cubic	0.510198000m3
Unit Of Measure	ea
