Hager Miniature Circuit Breaker RCBO C Curve Type A 1P+N 10A 240V 30mA 6kA

Electrical Accessory

$53.00 Incl GST
$48.18 Excl GST
In Stock

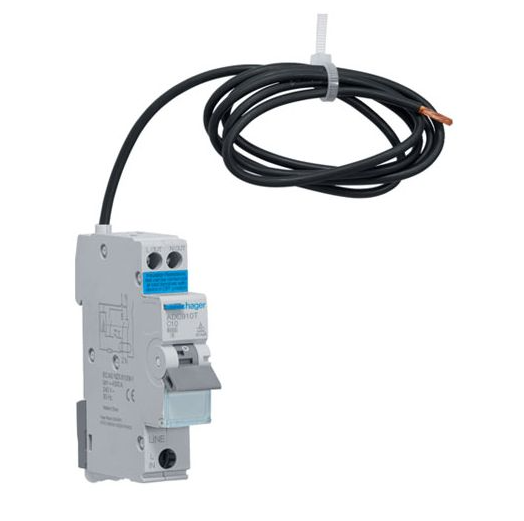

Hager Miniature Circuit Breaker RCBO C Curve Type A 1P+N 10A 240V 30mA 6kA

Hager 10 Amp Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 1 Pole 6kA 30mA by Hager is a high-quality electrical component. The Hager ADC910T is an RCBO module with 1 pole, 6kA, and C-curve characteristics. It has a switching current of 30mA and is designed for use with AC voltage. The product is also ESV compliant.

(ADC910T)

Current 10 Amp
Connection Type Screw
Depth 70 mm
Height 85 mm
Width 17.7 mm
Frequency 50 Hz
IP Rating IP20
Interrupt Capacity 6 kA
Modules 1 Module
Mounting Method DIN Rail
Number of Poles 1 Pole
Terminal Connection 1 / 10 sq-mm Flexible / 1 / 16 sq-mm Rigid
Temperature 25 to 80 Deg C
Trip Characteristic C Curve
Voltage 230-240 Volt
Trip Sensitivity 30 mA
SKU ADC910T
Shipping Weight 0.5000kg
Shipping Width 0.018m
Shipping Height 0.085m
Shipping Length 0.070m
Shipping Cubic 0.000107100m3
Unit Of Measure ea
