Best Prices Hisense AMD-35UX4RBL4 3.6kW Indoor Ducted Air Con Low Cost Install Brisbane Sydney

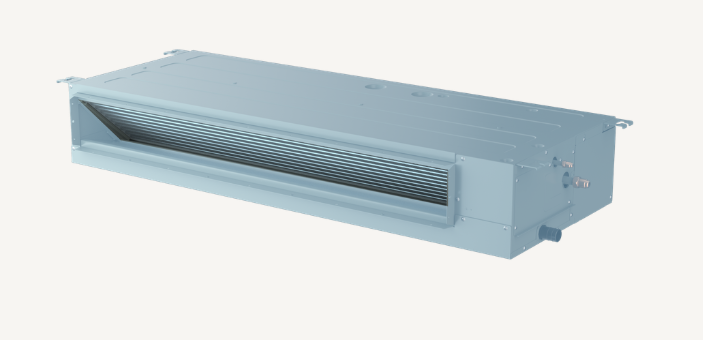

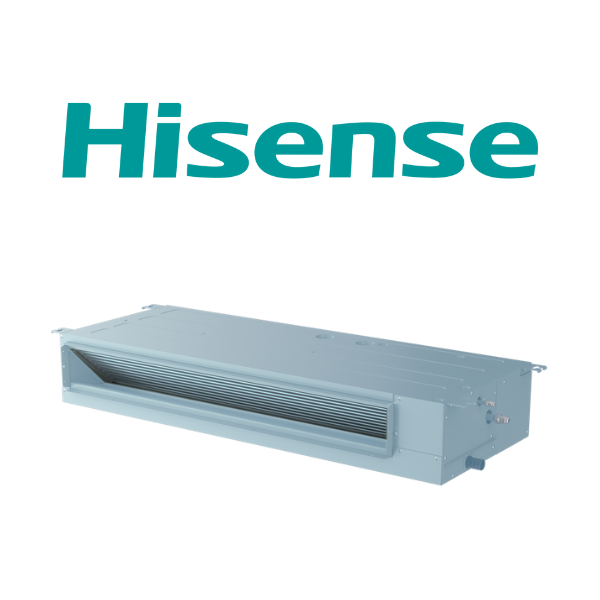

Hisense AMD-35UX4RBL4 3.6kW Indoor Only Multi Compact Bulkhead Air Conditioning Unit

Hisense-AMD-35UX4RBL4

*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

Hisense AMD-35UX4RBL4 3.6kW Indoor Only Multi Compact Bulkhead Air Conditioning Unit

Key Features:

Eco-friendly R32 Refrigerant – Ultra-low energy consumption, effective power saving, non-toxic and environmentally friendly.
Smart Home Voice Control – When the air conditioner is connected to Wi-Fi, you can operate it using voice control through Google Home or Amazon Alexa. This allows you to use verbal commands to set modes, adjust temperatures and more.
Wi-Fi Control – Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
Narrow Depth Design and Slim Height – Designed for narrow ceiling space, the duct unit is only 447mm in depth and 190mm in height, which provides great flexiblity and freedom for installation.
Inner High Lift Pump – The maximum lift pump components can be as high as 850mm. In order to ensure smooth drainage in long-term operation, the recommended drainage height is <800mm.

(AMD-35UX4RBL4)

Indoor Unit Name	AMD-25UX4RAL4	AMD-35UX4RBL4	AMD-50UX4RCL4	AMD-71UX4RCL4
Cooling Capacity (kW)	2.5	3.6	5.3	7.2
Heating Capacity (kW)	3.0	3.8	5.8	7.9
Power Supply (V/Hz/Ph)	220-240 / 50-60 / 1
Power Input (W)	40	25	32	40
Rated Current (A)	0.6	0.1	0.5	0.6
Airflow (m3/h)	140 / 122 / 108	166 / 134 / 111	250 / 214 / 180	278 / 194 / 136
External Static Pressure Pa	0~30	0~50		0~40
Sound Power dBA	49	50	57	58
Sound Pressure H/M/L dBA	35 / 33 / 31	36 / 33 / 30	41 / 37 / 33	39 / 35 / 32
Net Dimensions HxWxD (mm)	190 x 700 x 447	190 x 910 x 447	190 x 1180 x 447
Packing Dimensions HxWxD (mm)	565 x 870 x 285	285 x 1080 x 565	285 x 1350 x 565
Net Weight (kg)	15	18	22.5
Gross Weight (kg)	18	21.5	26
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52		6.35 / 12.7	9.52 / 15.88
Drain Diameter (mm)	32

SKU	AMD-35UX4RBL4
Brand	Hisense
Shipping Weight	21.5000kg
Shipping Width	0.285m
Shipping Height	0.565m
Shipping Length	1.080m
Shipping Cubic	0.173907000m3
Unit Of Measure	ea

Hisense offers a 5-Year Warranty on their Ducted Units
