Hisense AUD-125UX-SET 12.5kW Ducted 1 Phase Air Conditioning System

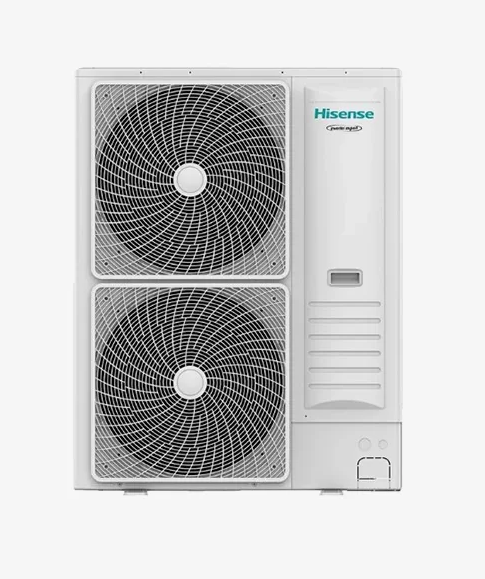

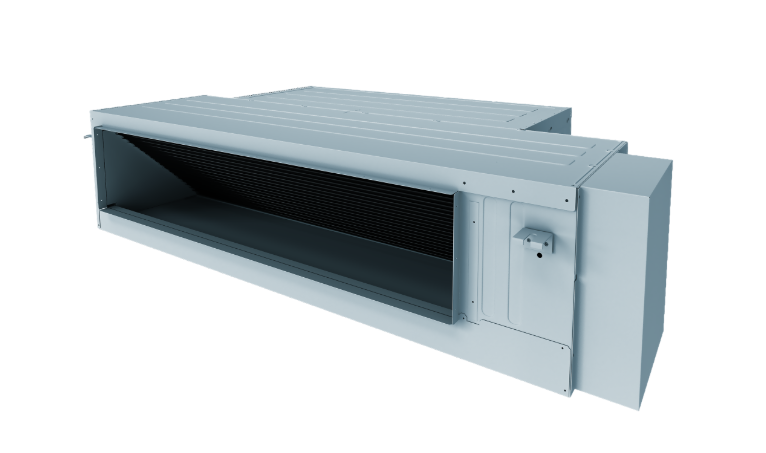

AUD-125UX4RSH1 / AUW-125U4RH1 Hisense Ducted System
$3,525.45 Excl GST

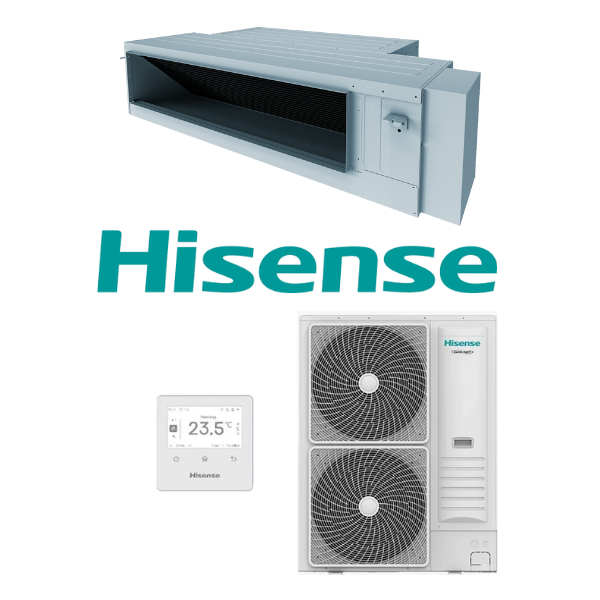

Hisense AUD-125UX-SET 12.5kW Ducted Single Phase System - Includes Programmable Zone Controller and Outdoor Unit AUW-125U4RH1
- Zone Control– Capability to control or customise the air conditioning in different zones or rooms.
- Large Airflow- Experience high airflow pressure with various piping options.
- Wi-Fi Control– Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
- Easy Installation– The design allows for convenient installation and maintenance.
(AUD-125UX-SET)
System | AUD-125UX-SET | AUD-140UX-SET | AUD-160UX-SET |
---|---|---|---|
Indoor Unit | AUD-125UX4RSH1 | AUD-140UX4RSH1 | AUD-160UX4RSH1 |
Outdoor Unit | AUW-125U4RH1 | AUW-140U4RH1 | AUW-160U4RH1 |
Rated Cooling Capacity (kW) | 12.5 | 14.0 | 16.0 |
Rated Heating Capacity (kW) | 15.0 | 17.0 | 18.9 |
Rated Input Power Cool/Heat (kW) | 3.61 / 3.78 | 4.09 / 4.25 | 4.78 / 4.87 |
Rated Input Current Cool/Heat (A) | 16.2 / 16.9 | 18.3 / 19.0 | 21.2 / 21.6 |
Power Supply | 1 Phase, 220-240V, 50Hz | ||
EER / COP | 3.60 / 4.10 | 3.55 / 4.00 | 3.35 / 3.88 |
Airflow (H/M/L) (L/s) | 1020 / 810 / 710 | 1120 / 920 / 780 | |
External Static Pressure (Pa) | 250 | ||
Indoor Sound Pressure Level @1.5m (H/M/L) (dBA) | 56 / 53 / 49 | 58 / 55 / 51 | |
Indoor Unit Net Dimensions (HxWxD) (mm) | 360 x 1520 x 820 | ||
Indoor Unit Shipping Dimensions (HxWxD) (mm) | 440 x 1650 x 1055 | ||
Outdoor Unit Net Dimensions (HxWxD) (mm) | 1460 x 975 x 330 | ||
Outdoor Unit Shipping Dimensions (HxWxD) (mm) | 1590 x 1040 x 435 | ||
Indoor Unit Net Weight (kg) | 60 | ||
Outdoor Unit Net Weight (kg) | 98 | ||
Refrigerant Type | R32 | ||
Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | ||
Supply Air Opening (mm) HxW | 245 x 1152 | ||
Return Air Opening (mm) HxW | 2 x 400 (Oval) | ||
Operating Range Cool/Heat (C) | -10 to 50 / -15 to 24 | ||
Outdoor Sound Pressure Level @1m (dBA) | 62 | ||
Outdoor Sound Power Level (dBA) | 77 | ||
Maximum Pipe Length (m) | 75 | ||
Maximum Height Drop (m) | 30 |
SKU | AUD-125UX-SET |
Brand | Hisense |
Shipping Weight | 164.0000kg |
Shipping Cubic | 1.502653000m3 |
Unit Of Measure | ea |
