Hisense AUD-160UX-SET 16.0kW Ducted 1 Phase Air Conditioning System

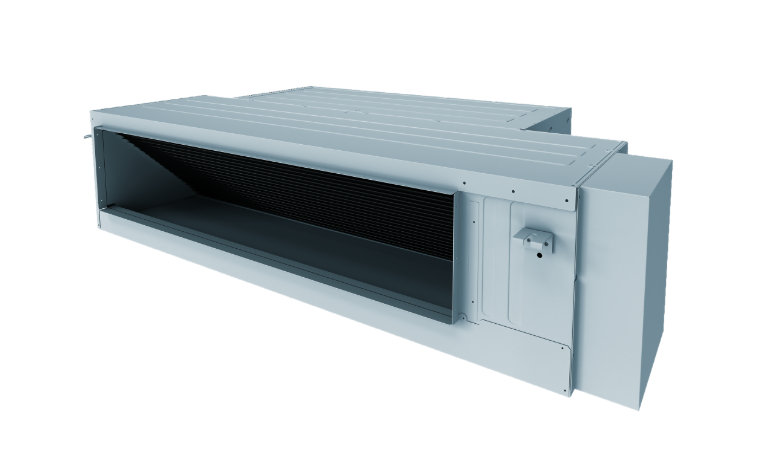

AUD-160UX4RSH1 / AUW-160U4RH1 Hisense Ducted System
$4,150.00 Excl GST

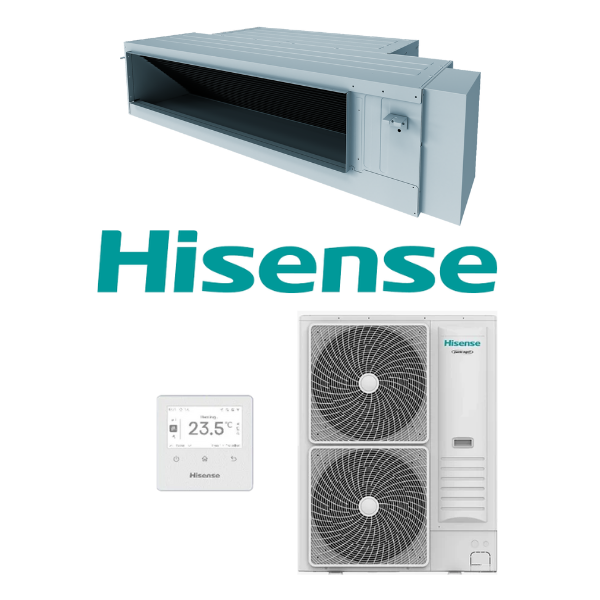

Hisense AUD-160UX-SET 16.0kW Ducted Single Phase System - Includes Programmable Zone Controller and Outdoor Unit AUW-160U4RH1
- Zone Control– Capability to control or customise the air conditioning in different zones or rooms.
- Large Airflow- Experience high airflow pressure with various piping options.
- Wi-Fi Control– Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
- Easy Installation– The design allows for convenient installation and maintenance.
(AUD-160UX-SET)
| System | AUD-125UX-SET | AUD-140UX-SET | AUD-160UX-SET | AUD-180UX-SET |
|---|---|---|---|---|
| Indoor Unit | AUD-125UX4RSH1 | AUD-140UX4RSH1 | AUD-160UX4RSH1 | AUD-180U4RSH1 |

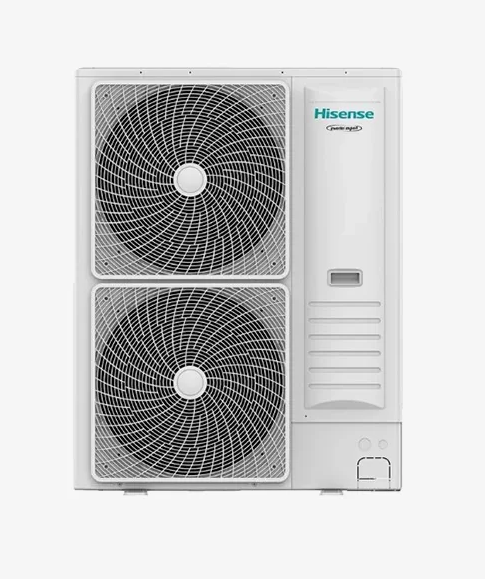

| Outdoor Unit | AUW-125U4RH1 | AUW-140U4RH1 | AUW-160U4RH1 | AUW-180U4RZ1 |
| Rated Cooling Capacity (kW) | 12.5 | 14.0 | 16.0 | 18.0 |
| Rated Heating Capacity (kW) | 15.0 | 17.0 | 18.9 | 21.0 |
| Rated Input Power Cool/Heat (kW) | 3.61 / 3.78 | 4.09 / 4.25 | 4.78 / 4.87 | 5.63 / 5.53 |
| Rated Input Current Cool/Heat (A) | 16.2 / 16.9 | 18.3 / 19.0 | 21.2 / 21.6 | 25.2 / 24.8 |
| Power Supply | 1 Phase, 220-240V, 50Hz | |||
| EER / COP | 3.60 / 4.10 | 3.55 / 4.00 | 3.35 / 3.88 | 3.20 / 3.80 |
| Airflow (H/M/L) (L/s) | 1020 / 810 / 710 | 1120 / 920 / 780 | 1150 / 920 / 780 | |
| External Static Pressure (Pa) | 250 | |||
| Indoor Sound Pressure Level @1.5m (H/M/L) (dBA) | 56 / 53 / 49 | 58 / 55 / 51 | ||
| Indoor Unit Net Dimensions (HxWxD) (mm) | 360x1526x820 | |||
| Indoor Unit Shipping Dimensions (HxWxD) (mm) | 440x1650x1055 | |||
| Outdoor Unit Net Dimensions (HxWxD) (mm) | 1460x975x330 | 1650x1100x390 | ||
| Outdoor Unit Shipping Dimensions (HxWxD) (mm) | 1590x1040x435 | 1810x1190x530 | ||
| Indoor Unit Net Weight (kg) | 66 | |||
| Outdoor Unit Net Weight (kg) | 98 | 132.5 | ||
| Refrigerant Type | R32 | |||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | 9.52 / 19.05 | ||
| Supply Air Opening (mm) HxW | 245 x 1152 | |||
| Return Air Opening (mm) HxW | 2 x 400 (Oval) | |||
| Operating Range Cool/Heat (C) | -10 to 50 / -15 to 24 | |||
| Outdoor Sound Pressure Level @1m (dBA) | 62 | 66 | ||
| Outdoor Sound Power Level (dBA) | 77 | |||
| Maximum Pipe Length (m) | 75 | |||
| Maximum Height Drop (m) | 30 | |||
| SKU | AUD-160UX-SET |
| Brand | Hisense |
| Shipping Weight | 164.0000kg |
| Shipping Width | 0.414m |
| Shipping Height | 1.460m |
| Shipping Length | 1.520m |
| Shipping Cubic | 1.485246000m3 |
| Unit Of Measure | ea |
Hisense Offer a 5-Year Warranty for their Ducted Systems.
