Hisense J-Series HAWJ28KR-SET 8.0kW Wall Split Wifi Air Conditioning System

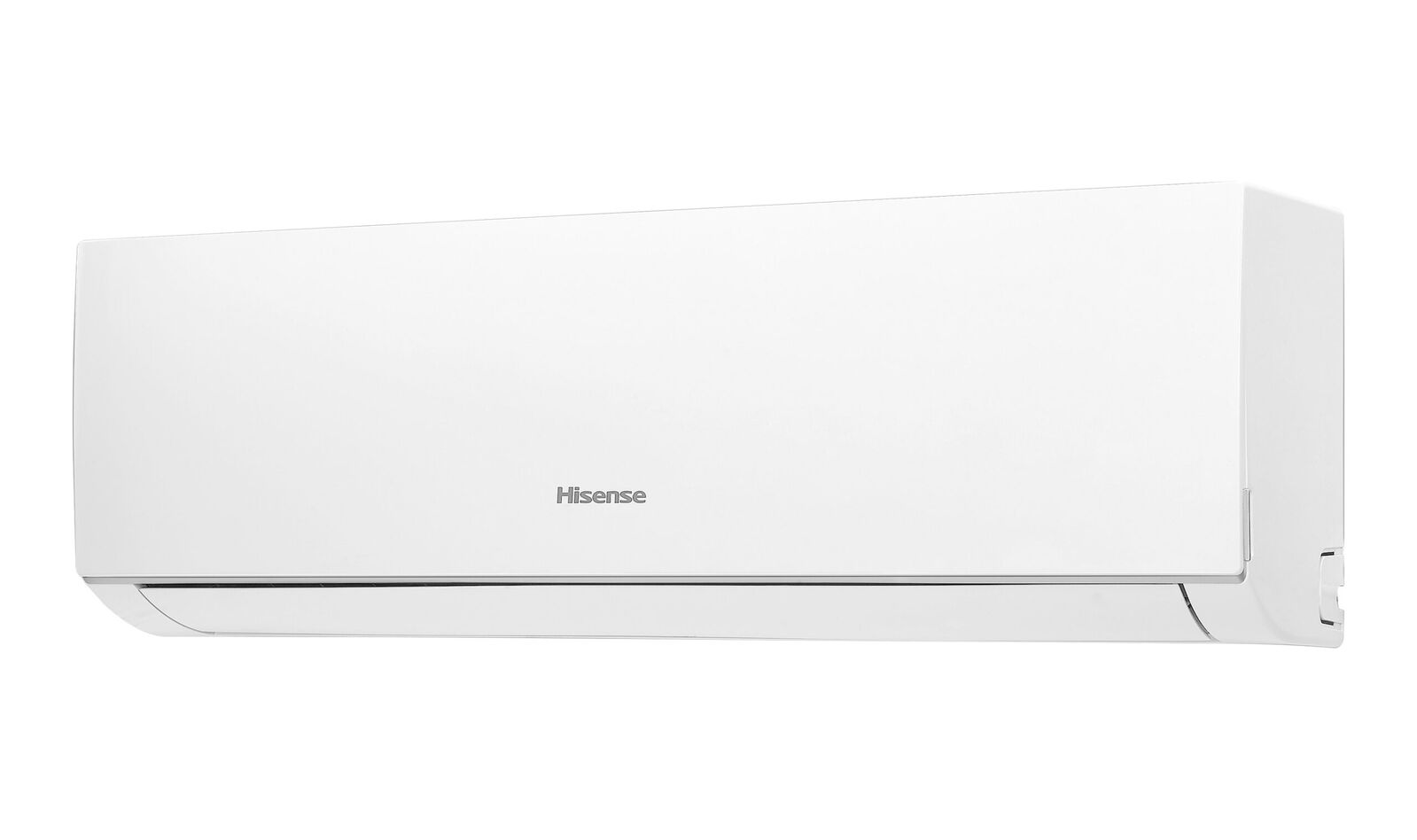

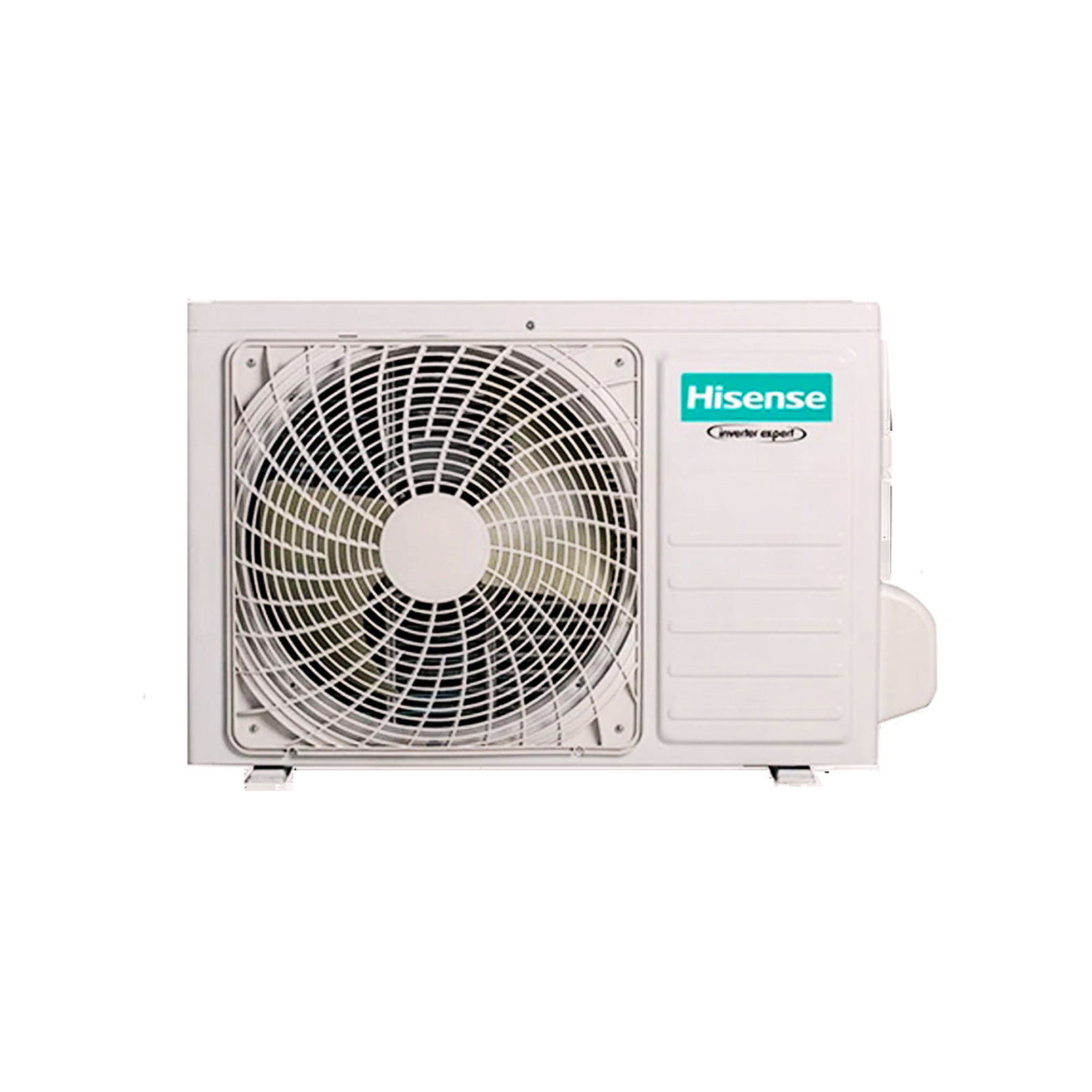

HAWJ28KR-I / HAWJ28KR-O Hisense Wall Split
$1,467.27 Excl GST
Hisense HAWJ28KR-SET 8.0kW J Series Reverse Cycle Split System (Built-In Wi-Fi) - Inlcudes Outdoor Unit and Wireless Controller
- Easy Installation– Equipped with a supporting bar and frame, that allows for seamless installation.
- Eco-friendly R32 Refrigerant– Ultra-low energy consumption, effective power saving, non-toxic and environmentally friendly.
- Voice Control– When the air conditioner is connected to Wi-Fi, you can operate it using voice control through Google Home or Amazon Alexa. This allows you to use verbal commands to set modes, adjust temperatures and more.

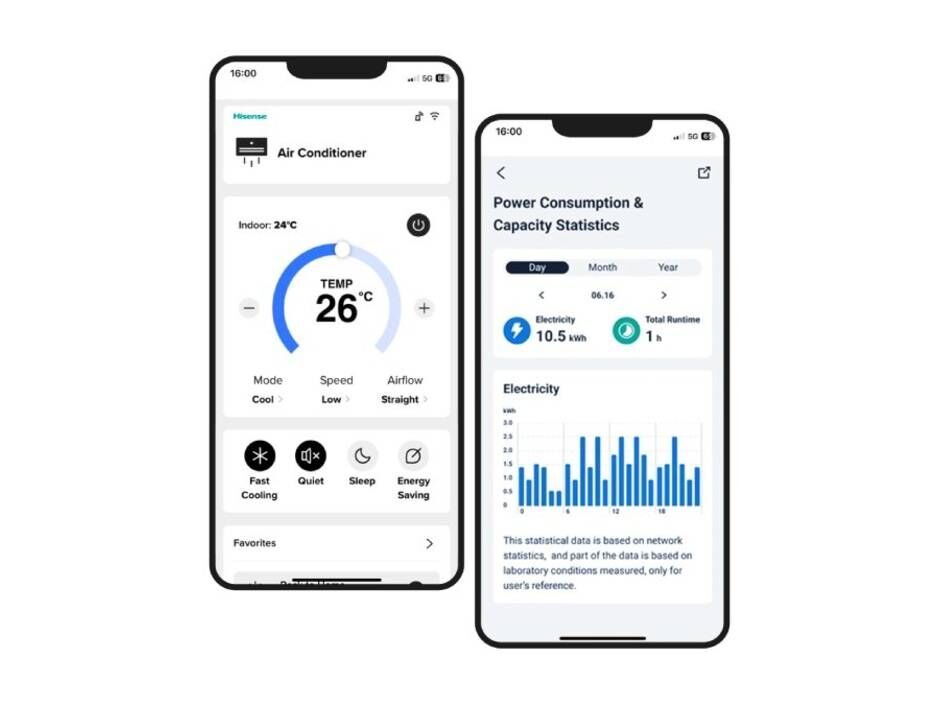

- Wi-Fi Control– Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
(HAWJ28KR-SET)
| System Names | HAWJ9KR-SET | HAWJ12KR-SET | HAWJ18KR-SET | HAWJ24KR-SET | HAWJ28KR-SET |
|---|---|---|---|---|---|
| Indoor Units | HAWJ9KR-I | HAWJ12KR-I | HAWJ18KR-I | HAWJ24KRP-I | HAWJ28KR-I |
| Outdoor Units | HAWJ9KR-O | HAWJ12KR-O | HAWJ18KR-O | HAWJ24KRP-O | HAWJ28KR-O |
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.3 | 7.1 | 8.0 |
| Rated Heating Capacity (kW) | 3.1 | 3.8 | 5.4 | 7.2 | 8.0 |
| Rated Input Cool/Heat (W) | 620 / 690 | 900 / 890 | 1590 / 1450 | 2150 / 2100 | 2460 / 2460 |
| Moisture Removal (L/H.r) | 0.9 | 2.0 | 2.5 | ||
| Airflow Distance (m) | 10 | 13 | 14 | ||
| EER/COP (W/W) | 4.03 / 4.49 | 3.89 / 4.27 | 3.33 / 3.72 | 3.30 / 3.43 | 3.25 / 3.25 |
| Outdoor Temperature Range Cool/Heat (C) | -15 to 46 / -15 to 24 | ||||
| Refrigerant Type/kg | R32 / 0.7 | R32 / 0.8 | R32 / 1.15 | R32 / 1.4 | R32 / 1.58 |
| Indoor Unit Noise Level (H/L/Fan Only) (dBA) | 39 / 25 / 19 | 41 / 25 / 19 | 44 / 32 / 19 | 48 / 35 / 19 | 47 / 32 / 19 |
| Outdoor Unit Noise Level (dBA) | 60 | 61 | 65 | 68 | |
| Power Supply | 1 Phase, 50Hz, 220-240V | ||||
| Rated Current (Cool/Heat) (A) | 2.8 / 3.1 | 4.1 / 4.1 | 7.2 / 6.5 | 9.6 / 9.4 | 11 / 11 |
| Expansion Device | Capillary | EEV (Electronic Expansion Valve) | |||
| Evaporator | Copper Tube and Aluminium Finish | ||||
| Condenser | Copper Tube and Aluminium Finish | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 1/4 + 3/8 | 1/4 + 1/2 | 3/8 + 5/8 | ||
| Max Vertical Height Diff between ODU IDU | 20/10 | 25/10 | 30/20 | 40/20 | |
| Pre-Charged Length (m) | 10 | 5 | |||
| Indoor Net Dimensions (HxWxD) (mm) | 270 x 815 x 212 | 315 x 915 x 235 | 315 x 1085 x 235 | ||
| Outdoor Net Dimensions (HxWxD) (mm) | 540 x 780 x 260 | 585 x 810 x 280 | 650 x 860 x 310 | 750 x 900 x 340 | |
| Indoor Package Dimensions (HxWxD) (mm) | 335 x 870 x 265 | 390 x 1000 x 315 | 390 x 1170 x 315 | ||
| Outdoor Package Dimensions (HxWxD) (mm) | 600 x 910 x 360 | 630 x 940 x 385 | 720 x 995 x 420 | 820 x 1060 x 450 | |
| Indoor Weight (Net/Gross) (kg) | 8.5 / 11 | 12.5 / 14.5 | 13.5 / 16 | 13 / 16 | |
| Outdoor Weight (Net/Gross) (kg) | 25.5 / 28 | 28 / 30 | 34 / 37 | 43.5 / 47.5 | 52 / 56 |
| SKU | HAWJ28KR-SET |
| Brand | Hisense |
| Shipping Weight | 72.0000kg |
| Shipping Cubic | 0.534875000m3 |
| Unit Of Measure | ea |
