LG Smart-Series WS18TWS 4.8kW Wall Split Wifi Air Conditioning System
WS18TWN / WS18TWU LG Wall Split
$1,065.45 Excl GST

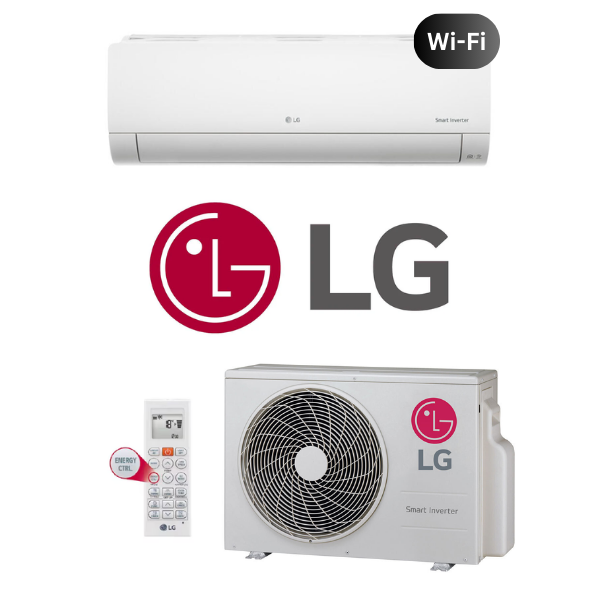

LG WS18TWS 4.8kW Smart Series Wall Mounted Split System (Built-In Wi-Fi) - Includes Outdoor Unit WS18TWU and Wireless Controller
Designed for the way you live, LG Air Conditioners are available in a wide range of styles - so you can create a space that’s cool, comfortable and stylish.
With LG Split System air conditioning products, you’ll also enjoy benefits such as:
- Embedded Wi-Fi - so that you can control your unit with your Smartphone, even when you’re not at home*.
- Active Energy Control - to help track your energy consumption.
- Low Noise - LG Air Conditioners operate at low sound levels.
For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.
(WS18TWS)
| System | WS09TWS | WS12TWS | WS18TWS | WS24SL |
|---|---|---|---|---|

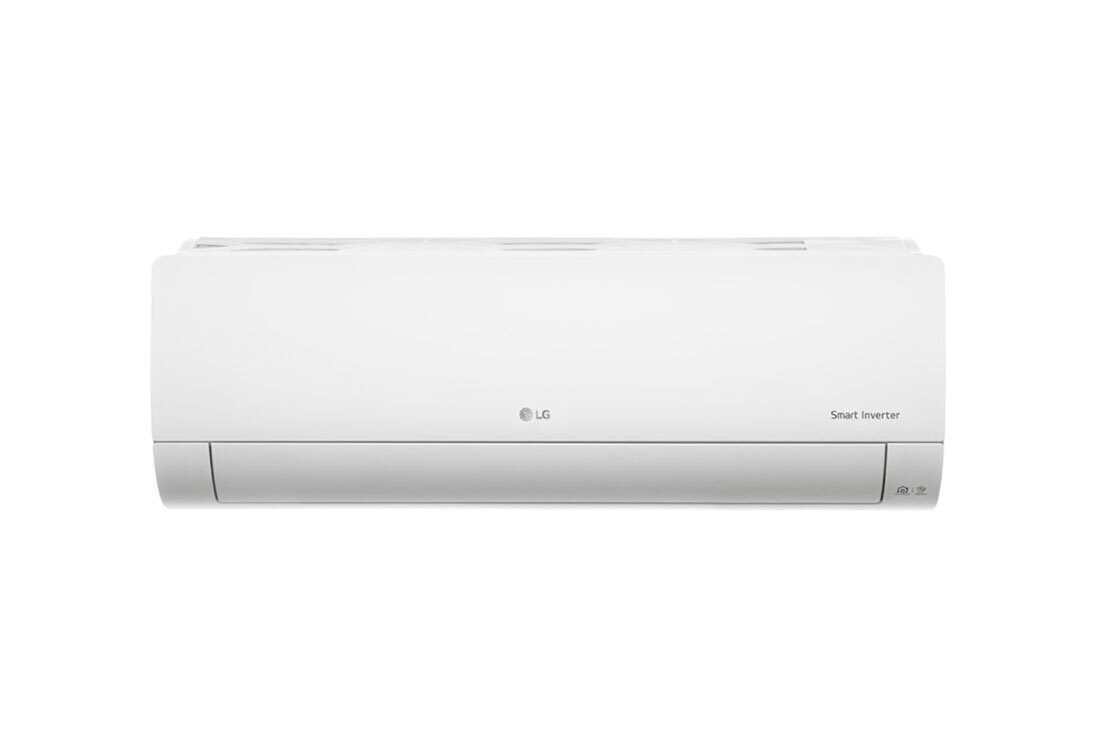

| Indoor Unit | WS09TWN | WS12TWN | WS18TWN | WS24SLN |

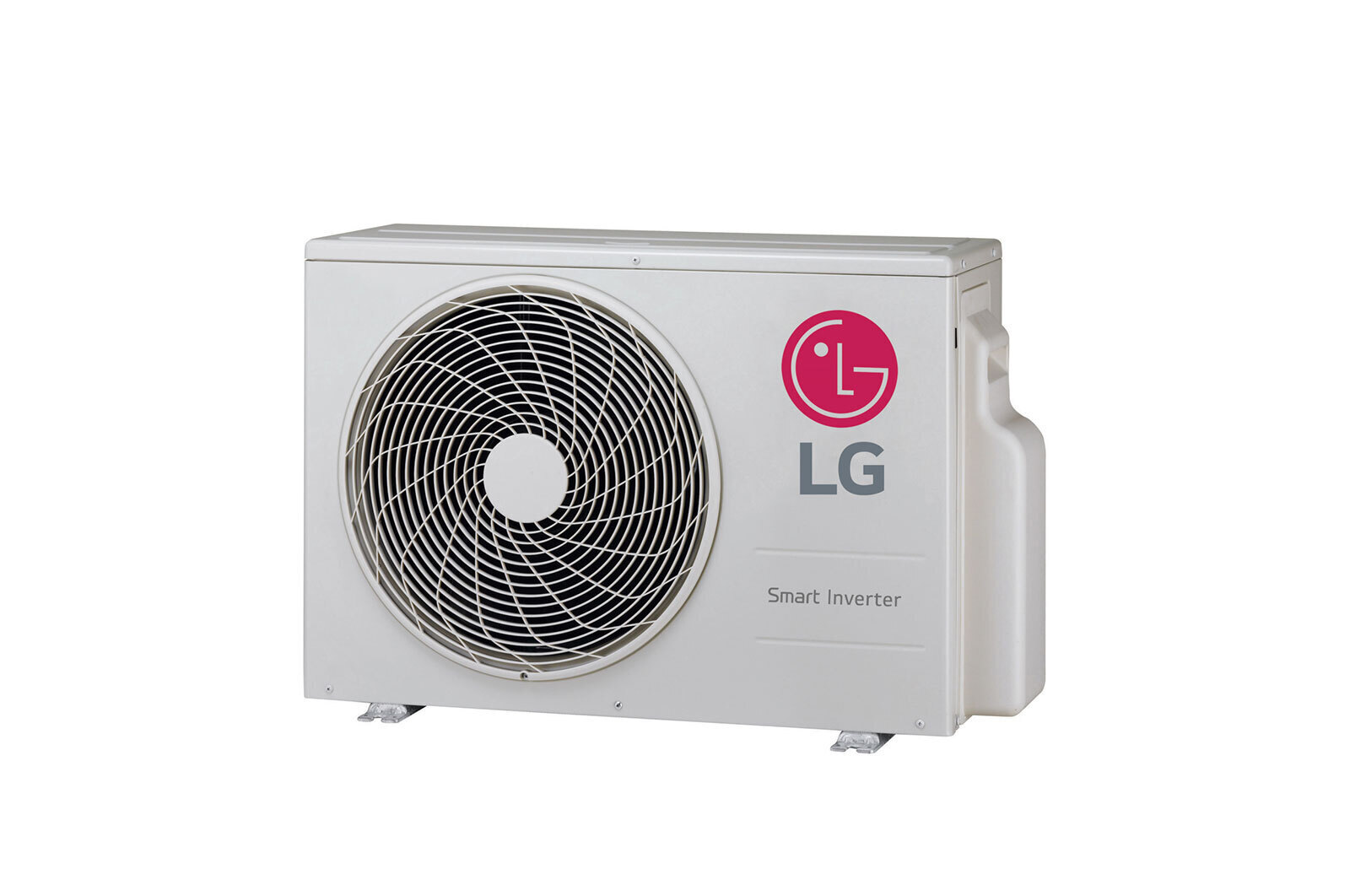

| Outdoor Unit | WS09TWU | WS12TWU | WS18TWU | WS24SLU |
| Rated Cooling Capacity (kW) | 2.6 | 3.4 | 4.8 | 7.1 |
| Rated Heating Capacity (kW) | 3.2 | 4.0 | 5.9 | 7.7 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||
| Capacity Range Cool/Heat (kW) | 0.89-3.70 / 0.89-5.00 | 0.89-4.04 / 0.89-6.00 | 0.90-5.50 / 0.90-6.40 | 1.00-8.00 / 1.00-8.50 |
| Rated Power Input Cool/Heat (kW) | 0.600 / 0.743 | 0.895 / 0.990 | 1.460 / 1.675 | 2.150 / 2.100 |
| Running Current (A) | 3.0 / 3.3 | 4.4 / 4.7 | 6.5 / 7.4 | 9.4 / 9.2 |
| EER/COP (W/W) | 4.33 / 4.31 | 3.80 / 4.04 | 3.29 / 3.52 | 3.30 / 3.67 |
| AEER/ACOP | 4.26 / 4.25 | 3.76 / 4.00 | 3.27 / 3.50 | 3.30 / 3.66 |
| Energy Label Grade (Cool) | 4.5 / 4.0 / 4.0 | 4.0 / 3.5 / 4.0 | 3.5 / 3.5 / 3.5 | 4.0 / 4.0 / 4.0 |
| Energy Label Grade (Heat) | 3.0 / 3.0 / 2.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.0 / 1.5 | 3.0 / 2.5 / 1.5 |
| Indoor Air Flow (Cool) (Max/H/M/L) (L/s) | 200 / 183 / 150 / 92 | 258 / 242 / 217 / 175 | 383 / 283 / 233 / 183 | |
| Indoor Air Flow (Heat) (Max/H/M/L) (L/s) | 208 / 183 / 150 / 108 | 308 / 267 / 225 / 183 | 433 / 333 / 283 / 233 | |
| Indoor Sound Pressure Level Cool (Max/H/M/L/SL) dB(A) | 48 / 42 / 37 / 27 / 19 | 49 / 44 / 39 / 34 / 31 | - / 46 / 41 / 36 / 27 | |
| Indoor Unit Dimensions (HxWxD) (mm) | 308 x 837 x 189 | 345 x 998 x 210 | 360 x 1060 x 265 | |
| Indoor Unit Net Weight (kg) | 9.1 | 11.7 | 16.6 | |
| Compressor | Twin Rotary | |||
| Condenser (Corrosion Protection) | Gold | |||
| Outdoor Sound Pressure Level Cool/Heat dB(A) | 49 / 51 | 53 / 55 | 49 / 52 | |
| Outdoor Sound Power Level dB(A) | 56 | 58 | 61 | 63 |
| Outdoor Unit Dimensions (HxWxD) (mm) | 545 x 770 x 288 | 650 x 870 x 330 | ||
| Outdoor Unit Net Weight (kg) | 35 | 45.7 | ||
| Outdoor Operating Range Cool/Heat (C) | -15 to 48 / -15 to 24 | -15 to 48 / -10 to 24 | -10 to 48 / -10 to 24 | |
| Field Connections | ||||
| Circuit Breaker (A) | 15 | 20 | ||
| Power Supply Cable (No. x mm2) | 3 x 1.0 | 3 x 1.5 | 3 x 2.5 | |
| Power and Communication Cable (No. x mm2) | 4 x 1.0 | |||
| Field Piping | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Connection Method IDU/ODU | Flared / Flared | |||
| Drain Hose Size IDU/ODU | 20 / 15 | |||
| Min-Max Piping Length (m) | 3 - 20 | 3 - 30 | ||
| Pre-Charge Length (m) | 7.5 | |||
| Max Elevation Difference (m) | 10 | 20 | ||
| Piping Connection Heat Insulation | Both Liquid and Gas Pipes | |||
| Refrigerant Type/Pre-Charge (g) | R32 / 800 | R32 / 1000 | R32 / 1300 | |
| Additional Charge (g/m) | 20 | |||
| Refrigerant Charge Control | Electronic Expansion Valve | |||
| SKU | WS18TWS |
| Brand | LG |
| Shipping Weight | 46.3000kg |
| Unit Of Measure | ea |
