LG UHS150SPLSET 15.2kW Three Phase Splittable High Static Ducted Air Conditioning System

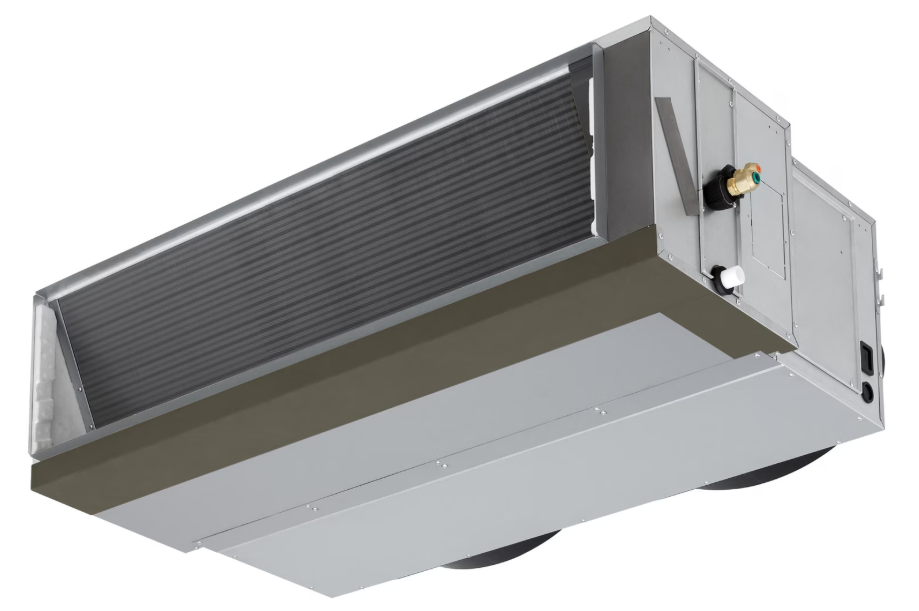

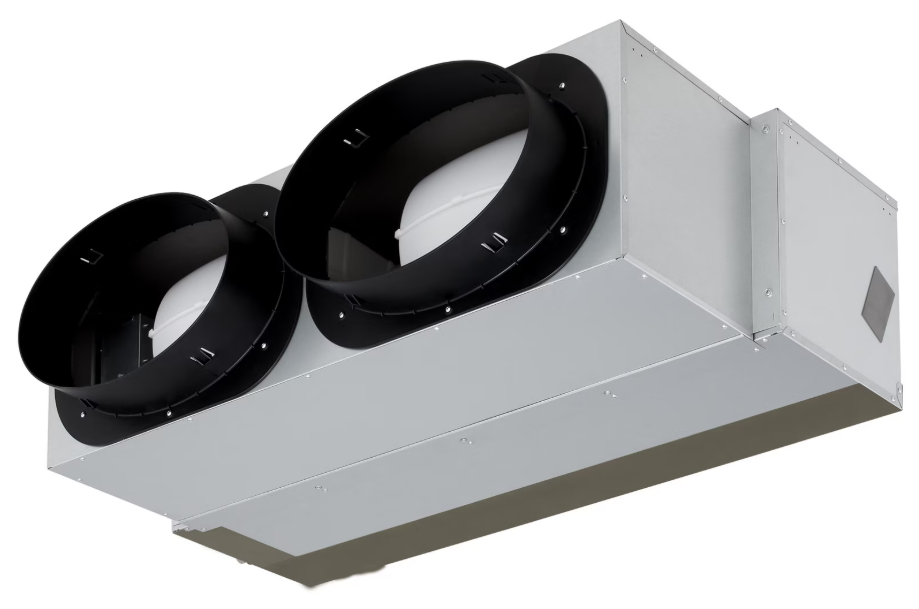

UHN150M3S / UU150WR3L LG High Static Splittable Ducted
$3,932.73 Excl GST

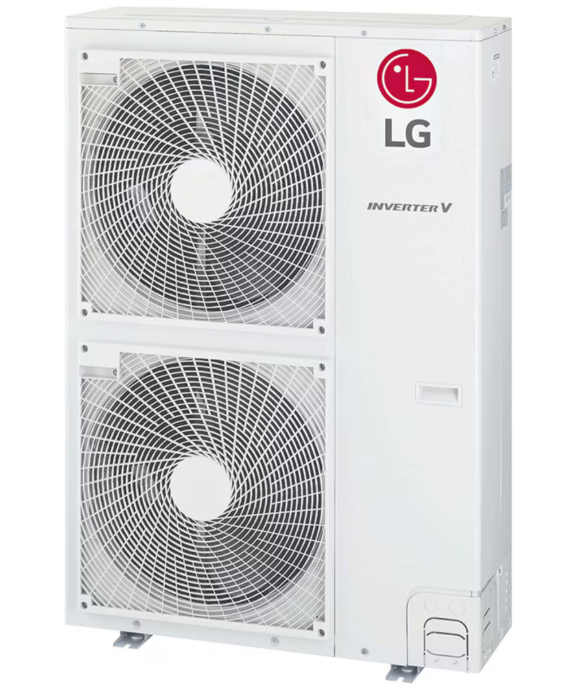

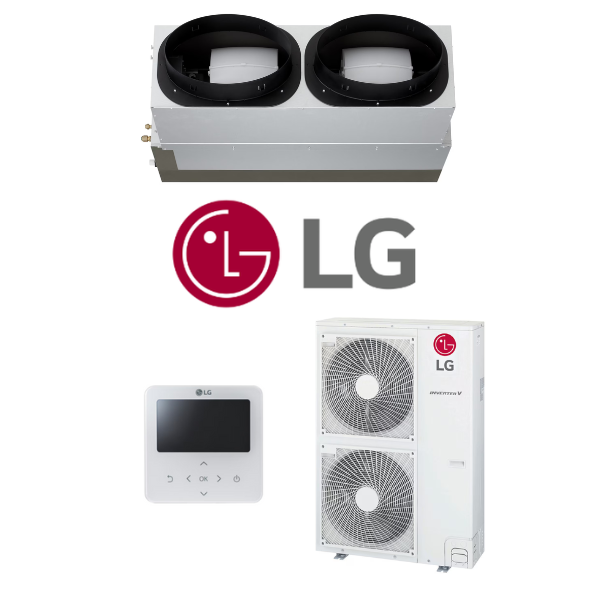

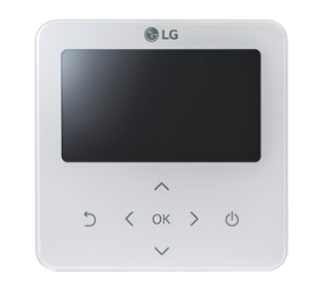

LG UHS150SPLSET 15.2kW Three Phase Splittable Ducted Unit - Includes Outdoor Unit and Wall Controller PREMTB100
Stay cool in the summer, warm in the winter – and comfortable all year long. With a ducted air conditioning unit from LG, you can control the temperature in your space with just the touch of a button. Life is a little more quiet, economical, and comfortable thanks to LG ducted air conditioners. Get the advanced technology you need – and provide your guests, clients and colleagues with the ultimate in comfort.
Key Features:
- Zone Control of up to 8 zones with the LG Premium Controller (Sold Separately)
- Optional Wi-Fi (Dongle module sold separately)
- Quiet Mode
- Compact Indoor unit helps make it easy to install in small spaces
- Built In Return Plenum
- Lighter and Splittable Structure
(UHS150SPLSET)
| System Name | UHS100SPLSET | UHS125SPLSET | UHS140SPLSET | UHS150SPLSET |
|---|---|---|---|---|
| Indoor Unit | UHN100M2S | UHN125M3S | UHN140M3S | UHN150M3S |
| Outdoor Unit | UU100WR3L | UU125WR3L | UU140WR3L | UU150WR3L |
| Cooling Capacity Rated/Min-Max (kW) | 10.0 (4.2-13.0) | 12.5 (5.1-14.3) | 14.0 (5.6-15.7) | 15.2 (6.1-16.4) |
| Heating Capacity Rated/Min-Max (kW) | 13.0 (5.2-13.9) | 15.0 (6.0-16.2) | 16.5 (6.6-17.0) | 18.0 (7.2-18.3) |
| Power Supply | 3 Phase, 50Hz, 380-415V | |||
| AEER / ACOP | 3.75 / 4.00 | 3.68 / 3.95 | 3.22 / 3.71 | 3.27 / 3.64 |
| Rated Current Cool/Heat (A) | 4.3 / 4.9 | 5.1 / 5.7 | 6.7 / 6.8 | 6.9 / 7.6 |
| Full Load Amps (A) | 14 | |||
| Air Flow Rate Rated/Min-Max (L/s) | 700 (377-893) | 833 (425-1035) | 900 (468-1073) | 950 (495-1123) |
| External Static Pressure Min-Max (Pa) | 39 - 137 | 49 - 157 | ||
| Indoor Unit Dimensions (H x W x D) (mm) | 270 x 1250 x 820 | 360 x 1250 x 820 | ||
| Outdoor Unit Dimension (H x W x D) (mm) | 1380 x 950 x 330 | |||
| Indoor Unit Weight (kg) | 42 | 47 | ||
| Outdoor Unit Weight (kg) | 89 | |||
| Indoor Cooling H/M/L (dBA) | 45 / 43 / 41 | 44 / 42 / 41 | 45 / 44 / 42 | 46 / 44 / 42 |
| Outdoor Cool/Heat @ 1.5m (dBA) | 50 / 50 | 51 / 52 | 52 / 53 | 54 / 56 |
| Compressor Type | Inverter Scroll | |||
| Fin Type | Wide Louver Plus | |||
| Refrigerant Type/Pre-Charge Length (m) | R32 / 20 | |||
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | |||
| Piping Length IDU-ODU (Rated/Max/Min) (m) | 7.5 / 85.0 / 5.0 | |||
| Max Height Difference IDU-ODU (m) | 30 | |||
| Return Air Vent (Oval) (mm) | 2 x 400 | |||
| Supply Air Vent (WxH, Flange) (mm) | 1148 x 245 | 1148 x 292 | ||
| Continuous Operation Cool/Heat (C) | -15 to 48 / -18 to 18 | |||
| Wi-Fi Compatible | Optional | |||
| SKU | UHS150SPLSET |
| Brand | LG |
| Shipping Weight | 136.0000kg |
| Shipping Cubic | 0.801630000m3 |
| Unit Of Measure | ea |
LG offers a 5-Year Parts and Labour Warranty on their Splittable Ducted Systems
