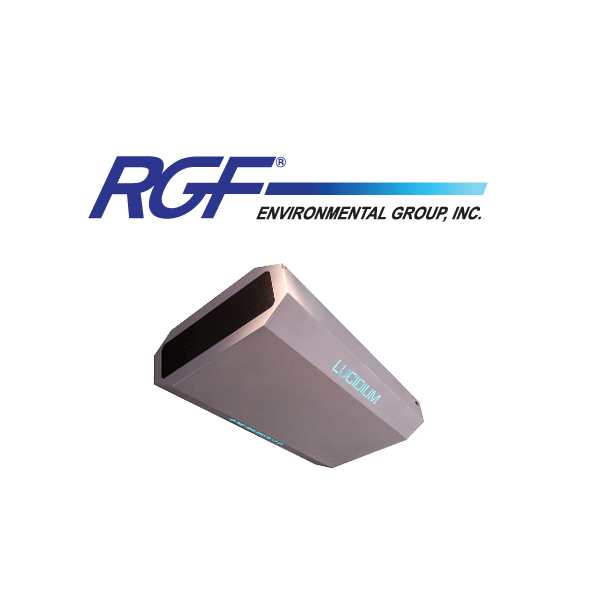

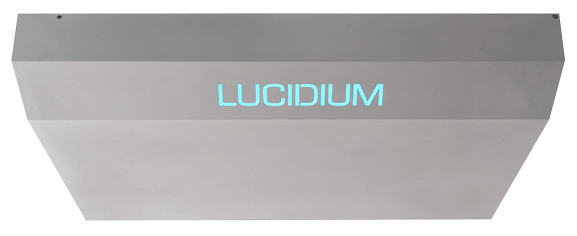

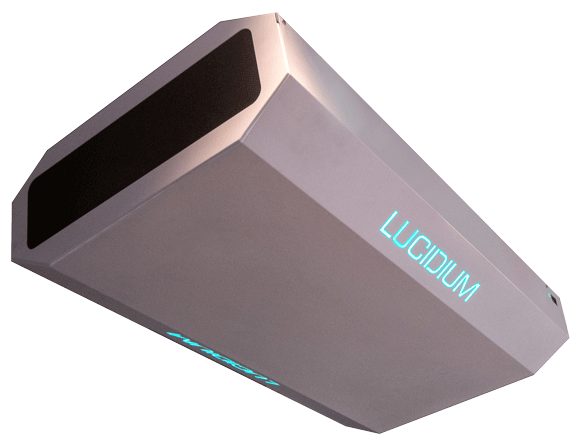

LUCIDIUM® FUSION 120CFM

LUCIDIUM® FUSION 120CFM

Price On Application

The Lucidium® Fusion incorporates over 130 years of UV science with modern materials creating the most effective, single pass, high flow Microbe reduction air purifier available. Lucidium® Fusion delivers the highest UV dose of any ceiling mounted unit av

Exceptional UV Performance with Low Operating Cost
Lucidium® Fusion provides HEPA level microbial reductions using less than a quarter of the electricity of similarly sized HEPA air purifiers. Fusion also eliminates frequent prefilter replacements needed to ensure HEPA units maintain air flow.

Quiet Operation
Lucidium® Fusion has been sound tested to <20 dB at 3 feet, making them a great option for all sensitive environments such as schools, hospitals, recovery centers, assisted living facilities, conference rooms and offices. In comparison most medical grade in-room HEPA systems are typically rated around 50 decibels. The current ANSI standard, and World Health Organization recommendation, for background noise in an unoccupied classroom is currently set at 35 decibels.

Flexible Operation
Lucidium® Fusion delivers single pass inactivation of for most common microbes and therefore can be sized the same as filter-based systems such as in-room HEPA. Unlike traditional upper-room UV systems, Lucidium® Fusion is fan powered to ensure the entire room is treated with a measured UV dose.

Universal Installation
Lucidium® Fusion can be installed with any ceiling height 8 feet or over. Systems are designed with knockouts for quick installation directly to ceiling joists, or can be quickly installed into drop ceilings using the Drop Ceiling Installation kit.

Maintenance
Lucidium® Fusion UV lamps offer 12,000 hours of reliable germ fighting energy. In typical commercial applications, Lucidium® Fusion UV lamps will operate for 2 to 4 years before requiring replacement. A swing down cover provides easy access for UV lamp replacements.

(LFUS-120)

  • Complies with CDC guidelines
  • Reduces viruses and bacteria in the air and on surfaces
  • Less than “whisper quiet” operation
  • HEPA equivalent performance
  • Low maintenance cost and energy consumption
ITEM # LFUS-120 LFUS-200
AIR FLOW (CFM) 120 200
TECHNOLOGY Single Pass UV-C
DIMENSIONS 48″L x 28.5″W x 11″H
REPLACEMENT LAMP PART # EL-146/4T-S
RECOMMENDED CELL REPLACEMENT 18 months (12,000 hours)
ELECTRICAL 120Vac, 1.5 A 50/60Hz / 240Vac 0.75A 50/60Hz / 277Vac 0.65A 50/60Hz
INSTALLATION Ceiling mounted / Drop Ceiling installation kit available
WARRANTY 1 year
SKU LFUS-120
Brand RGF Environmental Group
Shipping Width 0.724m
Shipping Height 0.279m
Shipping Length 1.212m
Shipping Cubic 0.244819152m3
