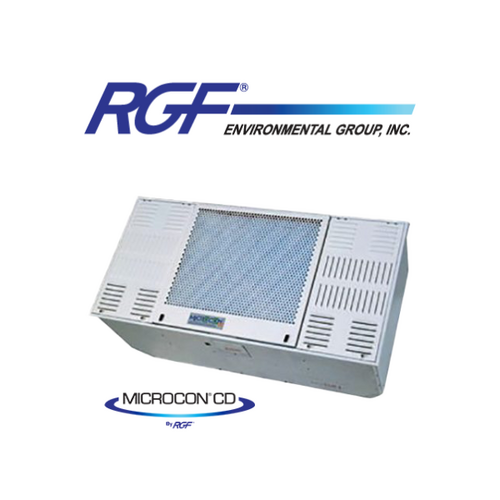

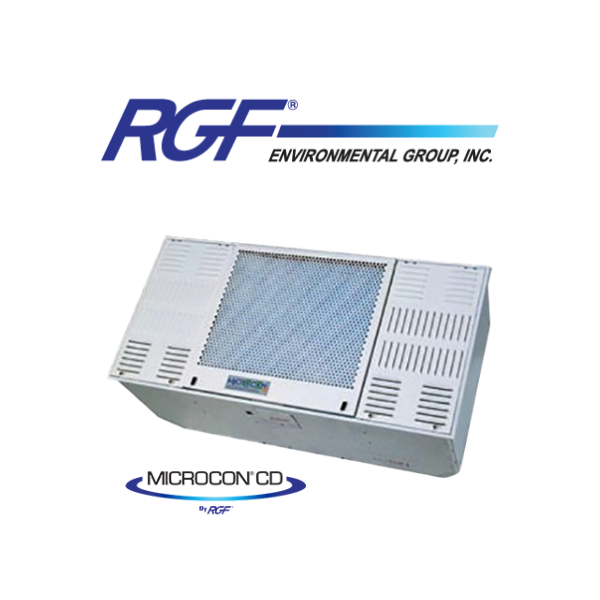

MICROCON™ CD Air Filtration System

The MICROCON™ CD air filtration system is specifically designed for the removal of airborne pollutants and gaseous contaminants from indoor environments. Ceiling mounted (CD), air is drawn through a high efficiency HEPA filter, past germicidal UV lamps before being exhausted through two activated carbon filter cells. Clean air, free of particulate and gaseous odors, is reintroduced to the room.

The MICROCON™ CD includes a three stage progressive filter system. The first stage is a 1″ synthetic pre-filter designed to contain larger size airborne particles thereby extending the life of the HEPA filter. The secondary filter is a hospital-grade, high efficiency HEPA filter capable of removing >99% of airborne particles in the sub-micron range. Since the removal of gas phase pollutants require a different capture mechanism a unique activated carbon composite cell is utilized as the last stage which allows for higher adsorbent loading at a lower pressure drop than comparable activated carbon cells. The germicidal UV lamps add another dimension to air purification.

(MICROCON-CD)

  • 99.7% efficiency on sub-micron particles
  • Progressive filtration system
  • Controls both airborne participate and gas-phase pollutants
  • Mounts flush with ceiling
  • Multidirectional exhaust louvers
  • Baked on white enamel finish
ITEM # MICROCON-CD
Weight 125 lbs. Total ( All Filters and Chassis )
Air Delivery 450-800 cfm (27,000 to 48,000 cubic feet per hour)
Power 120VAC@ 50/60Hz, 1 Phase 2.4A max. 240 W
Clearances min 20” above ceiling. Swing down door requires 24”
Dimensions (mm) (W) 600 (L) 1210 (D) 470
SKU MICROCON-CD
Brand RGF Environmental Group
Shipping Weight 57.0000kg
Shipping Width 0.600m
Shipping Height 0.470m
Shipping Length 1.210m
Unit Of Measure ea
