Mitsubishi Electric Compact Cassette SLZM35VALKIT 3.5kW 1 Phase Wireless Inverter Air Conditioning System

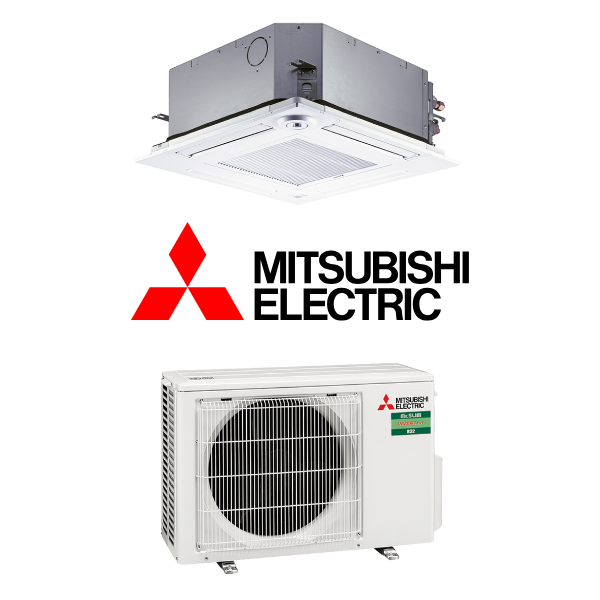

Mitsubishi Electric Compact Cassette SLZM35VALKIT 3.5kW Single Phase Air Conditioner - Includes Outdoor Unit and Wireless Remote Controller

Engineered for versatility and efficiency, the SLZ-M ceiling cassette air conditioner sets the standard in climate control. With its compact design and advanced features, this unit is ideal for those seeking a blend of style, functionality, and energy efficiency in their air conditioning needs.

Key Features:

Compact Design
Built-in Drain Pump
Horizontal Airflow
Set Airflow Height According to Ceiling Height
Weekly Timer
Outside Air Intake
Wireless Remote Controller

(SLZM35VALKIT)

System		SLZM25VALKIT	SLZM35VALKIT	SLZM50VALKIT	SLZM60VALKIT

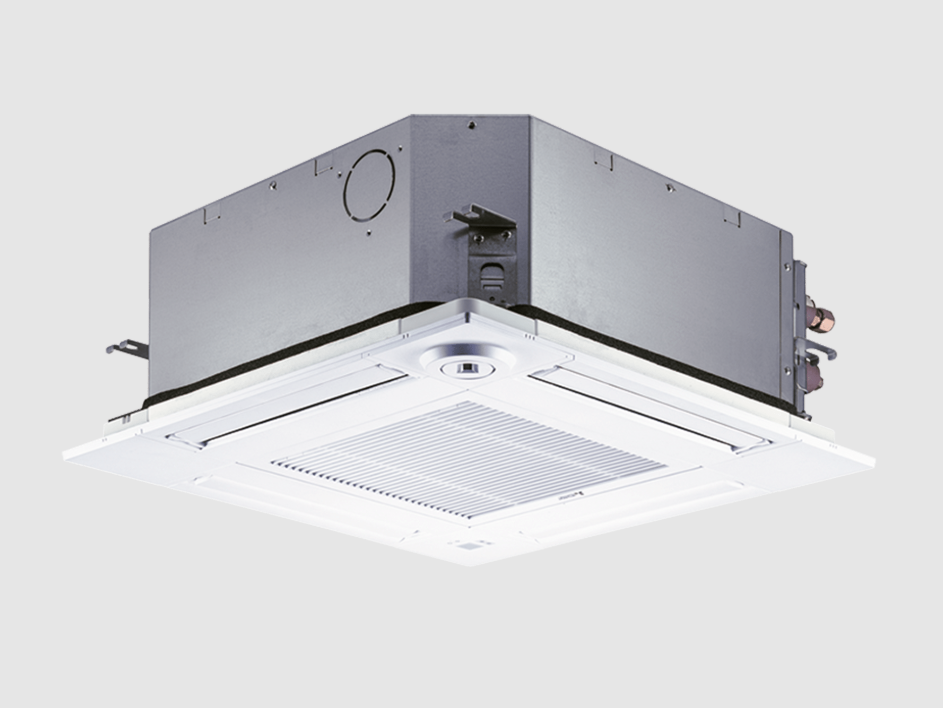

Indoor Unit		SLZ-M25FA-A.TH	SLZ-M35FA-A.TH	SLZ-M50FA-A.TH	SLZ-M60FA-A.TH

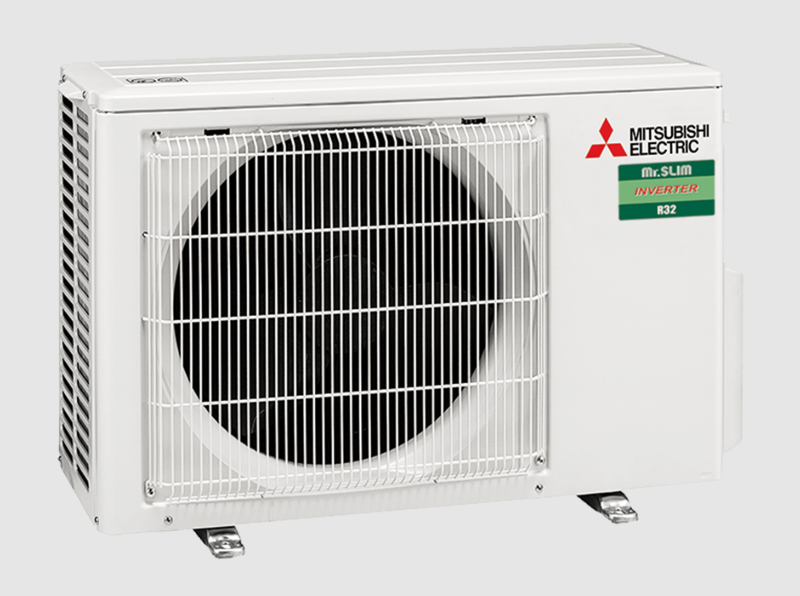

Outdoor Unit		SUZ-M25VAD-A.TH	SUZ-M35VAD-A.TH	SUZ-M50VAD-A.TH	SUZ-M60VAD-A.TH
Cooling Capacity Rated/Min-Max	kW	2.5 (1.5-3.5)	3.5 (1.5-4.0)	5.0 (2.3-5.5)	5.6 (2.3-6.7)
Heating Capacity Rated/Min-Max	kW	3.0 (1.3-4.1)	4.0 (1.3-5.0)	5.0 (1.7-5.5)	6.0 (2.5-7.6)
Power Supply		1 Phase, 230V, 50/60Hz
EER/COP		4.03 / 3.85	3.76 / 3.80	3.35 / 3.16	3.41 / 3.20
Total Input Rated Cool/Heat	kW	0.62 / 0.78	0.93 / 1.05	1.49 / 1.58	1.64 / 1.87
Star Rating Cool/Heat		3.5 / 2.5	3.0 / 2.5	2.0 / 1.5	2.0 / 1.5
Rated Running Current Cool/Heat	A	3.30 / 3.90	4.30 / 4.80	6.60 / 7.10	7.20 / 8.20
Sound Pressure Level In (Lo/Me/Hi) Cooling	dBA	25 - 28 - 31	25 - 33 - 39	27 - 34 - 39	32 - 40 - 43
Sound Pressure Level Out (PWL) Cooling		45(59)	48(62)	48(64)	49(65)
Sound Pressure Level In (Lo/Me/Hi) Heating		25 - 28 - 31	25 - 33 - 39	27 - 34 - 39	32 - 40 - 43
Sound Pressure Level Out (PWL) Heating		46(59)	48(63)	49(66)	51(68)
Air Volume (In) Lo/Me/Hi Cooling	L/s	108 - 125 - 142	108 - 150 - 192	117 - 150 - 192	125 - 192 - 217
Air Volume (In) Lo/Me/Hi Heating	L/s	108 - 125 - 142	108 - 150 - 192	117 - 150 - 192	125 - 192 - 217
Max Running Current	A	7.0	8.8	13.8	15.2
Indoor Unit Dimensions HxWxD	mm	245 x 570 x 570
Panel Dimensions HxWxD		10 x 625 x 625
Outdoor Unit Dimensions HxWxD		550 x 800 x 285		714 x 800 x 285	880 x 840 x 330
Indoor Unit Weight	kg	15
Panel Weight		3
Outdoor Unit Weight		30	35	41	54
Pipe Sizes (Liquid/Gas)	mm	6.35 / 9.52		6.35 / 12.7	6.35 / 15.88
Max. Piping Length/Height	m	20 / 12		30 / 30
Outdoor Operating Range Cool/Heat	C	-10 to 52 / -10 to 24		-15 to 52 / -10 to 24
Pre-Charge R32 Refrigerant	kg	0.65(7m)	0.90(7m)	1.20(7m)	1.25(7m)
Additional Refrigerant	g/m	20
