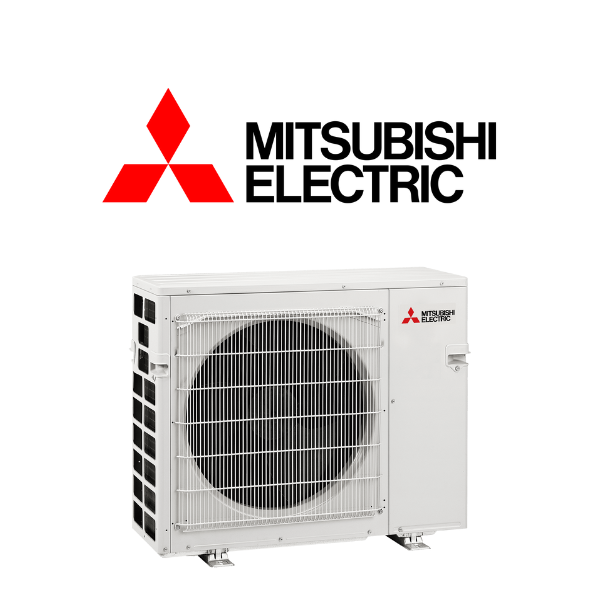

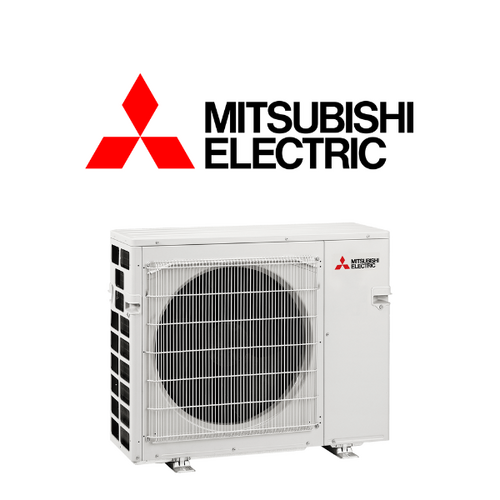

Mitsubishi Electric MXZ-5F100VGD-A1 10.0kW Outdoor Only 2-5 Port Multi R32 Air Conditioning Unit
Mitsubishi Electric Outdoor Multi Unit (2-5 Port)
$3,571.82 Excl GST
*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.
Mitsubishi Electric MXZ-5F100VGD-A1 10.0kW Outdoor 2 - 5 Port Multi R32 Air Conditioning Unit
The MXZ-5F100VGD 10kW multi split system connects up to five indoor units to a single outdoor system, providing air conditioned comfort across multiple rooms. This 5-port system delivers efficient heating and cooling for properties requiring air conditioning in bedrooms, living areas and studies. You can mix and match different indoor unit styles – including wall-mounted, floor-standing, ceiling cassette and ducted options – to suit each room’s specific requirements while maintaining consistent performance throughout your home.
Key Features:
- Capacity: 10.0 kW
- Energy efficient
- Wi-Fi Control
- Quiet operation
- Individual Temperature Control for Each Room
- Demand Response Capable
(MXZ-5F100VGD-A1)
| Outdoor Unit Name | MXZ-2F52VF-A1 | MXZ-2F52VGD-A1 | MXZ-3F54VGD-A1 | MXZ-4F71VGD-A1 | MXZ-4F80VGD-A1 | MXZ-5F100VGD-A1 | MXZ-6F120VGD-A1 |
|---|---|---|---|---|---|---|---|
| Power Supply | 1 Phase, 220-230V, 50-60Hz | ||||||
| Cooling Capacity (kW) | 5.2 | 5.2 | 5.4 | 7.1 | 8.0 | 10.0 | 12.0 |
| Heating Capacity (kW) | 6.1 | 6.1 | 7.0 | 8.0 | 8.8 | 10.0 | 13.2 |
| Indoor Unit Connection | 2 Units | 2 to 3 Units | 2 to 4 Units | 2 to 5 Units | 2 to 6 Units | ||
| Total Rated Input (Cool/Heat) (kW) | 1.38 / 1.49 | 1.38 / 1.45 | 1.25 / 1.43 | 1.79 / 1.67 | 1.98 / 1.68 | 2.84 / 2.07 | 3.30 / 3.00 |
| EER / COP | 3.77 / 4.09 | 3.77 / 4.21 | 4.32 / 4.90 | 3.97 / 4.79 | 4.04 / 5.24 | 3.52 / 4.83 | 3.64 / 4.40 |
| Sound Pressure Level (Cool/Heat) dB(A) | 46 / 50 | 48 / 54 | 49 / 51 | 52 / 56 | 53 / 57 | ||
| Max Running Current (A) | 12.2 | 18 | 21.4 | 29.8 | |||
| Pre-Charge Refrigerant | 1.0 | 2.4 | |||||
| Max Pipe Length (Total / Each) (m) | 30/20 | 40/20 | 50/25 | 60/25 | 70/25 | 80/25 | |
| Operating Range (Cool/Heat) (C) | Cooling: -10 to 46 / Heating: -15 to 24 | ||||||
| Unit Dimensions (HxWxD) (mm) | 550 x 800 x 285 | 710 x 840 x 330 | 796 x 950 x 330 | 1048 x 950 x 330 | |||
| Unit Weight (kg) | 37 | 57 | 58 | 59 | 61 | 62 | 87 |
| Pipe Sizes (mm) (Liquid/Gas) | (6.4/9.5)x2 | (6.4/9.5)x3 | (6.4/9.5)x3 + (6.4/12.7)x1 | (6.4/9.5)x4 + (6.4/12.7)x1 | (6.4/9.5)x5 + (6.4/12.7)x1 | ||
| SKU | MXZ-5F100VGD-A1 |
| Brand | Mitsubishi Electric |
| Shipping Weight | 62.0000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.796m |
| Shipping Length | 0.950m |
| Shipping Cubic | 0.249546000m3 |
| Unit Of Measure | ea |
