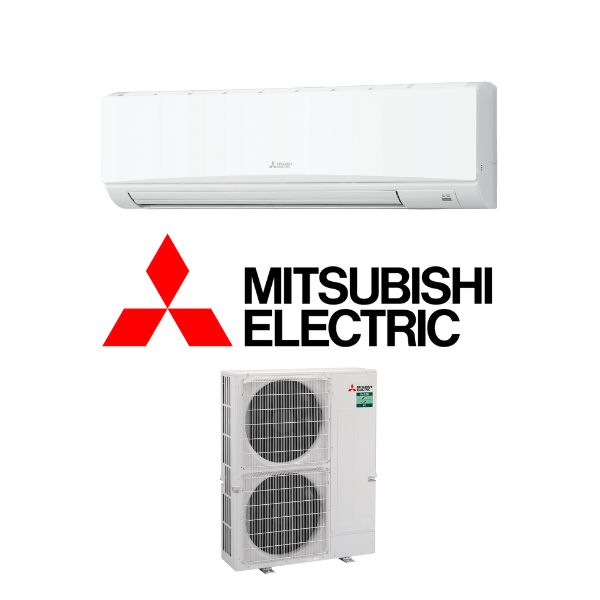

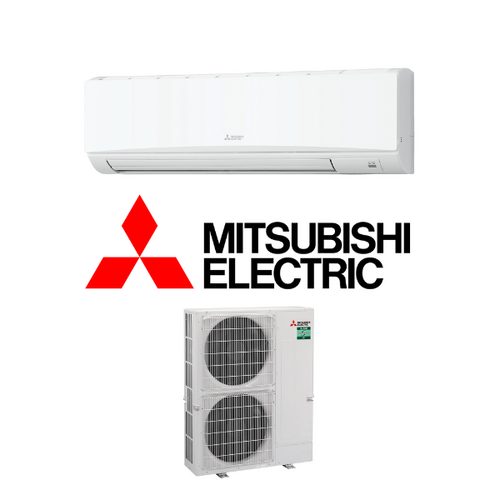

Mitsubishi Electric PKAZM100V2KIT 10.0kW Wall Split 1 Phase Air Conditioning System

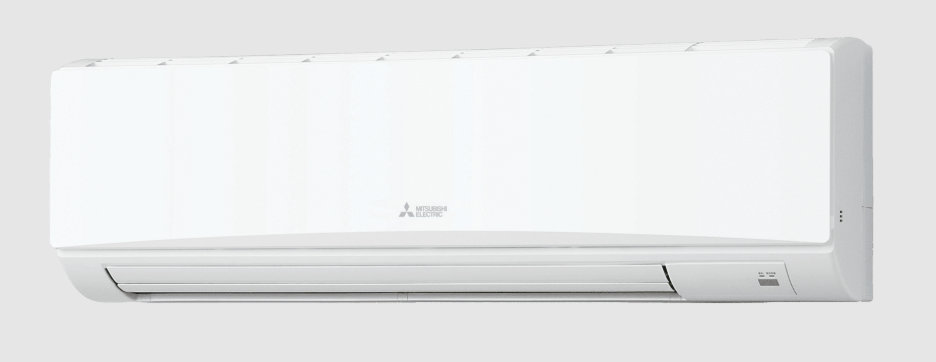

PKA-M100KAL3.TH / PUZ-ZM100VKA2-A.TH Wall Split
$4,979.09 Excl GST
Mitsubishi Electric PKAZM100V2KIT 10.0kW Single Phase Wall Mounted System - Includes Outdoor Unit PUZ-ZM100VKA2-A.TH
Features:
-
Flat Panel - A flat panel layout has been adopted for the PKA-M Series. Pursuing a design that harmonises with virtually any interior.
-
Quick Clean Grille - The intake grille filter can easily slide out completely. This allows easy cleaning without any special tools (can be washed in water).
-
Connects with PUZ-ZM Power Inverter Series - The Mitsubishi Electric PUZ-ZM outdoor units feature reduced power consumption and make it ideally suited to commercial applications.
-
Wi-Fi Control* - 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available
(PKAZM100V2KIT)
| System Name | PKAZM71V2KIT | PKAM100V2KIT | PKAZM100V2KIT | PKAZM100Y3KIT | |
|---|---|---|---|---|---|
| Indoor Unit | PKA-M71KAL3.TH | PKA-M100KAL3.TH | PKA-M100KAL3.TH | PKA-M100KAL3.TH | |
| Outdoor Unit | PUZ-ZM71VHA2.TH | PUZ-M100VKA2-A.TH | PUZ-ZM100VKA2-A.TH | PUZ-ZM100YKA3-A.TH | |
| Power Supply | 1 Phase, 230V, 50Hz | 3 Phase, 400V, 50Hz | |||
| Performance | Power Inverter | Standard Inverter | Power Inverter | ||
| Cooling Capacity (kW) | 7.1 | 10.0 | |||
| Heating Capacity (kW) | 8.0 | 11.2 | |||
| EER/COP | 3.81 / 3.77 | N/A | 3.55 / 3.61 | ||
| Refrigerant Type | R32 | ||||
| Max Pipe Length (m) | 50 | N/A | 75 | ||
| Outdoor Operating Range (Cool/Heat) | -15 ~ 52 / -20 ~ 21 | N/A | -15 ~ 52 / -20 ~ 21 | ||
| Indoor Dimensions (HxWxD) (mm) | 365 x 1170 x 295 | ||||
| Outdoor Dimensions (HxWxD) (mm) | 943 x 950 x 330(+25) | 981 x 1050 x 330(+40) | 1338 x 1050 x 330(+40) | ||
| Indoor Weight (kg) | 21 | ||||
| Outdoor Weight (kg) | 70 | 113 | 114 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||||
| SKU | PKAZM100V2KIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 134.0000kg |
| Shipping Cubic | 0.645793000m3 |
| Unit Of Measure | ea |
