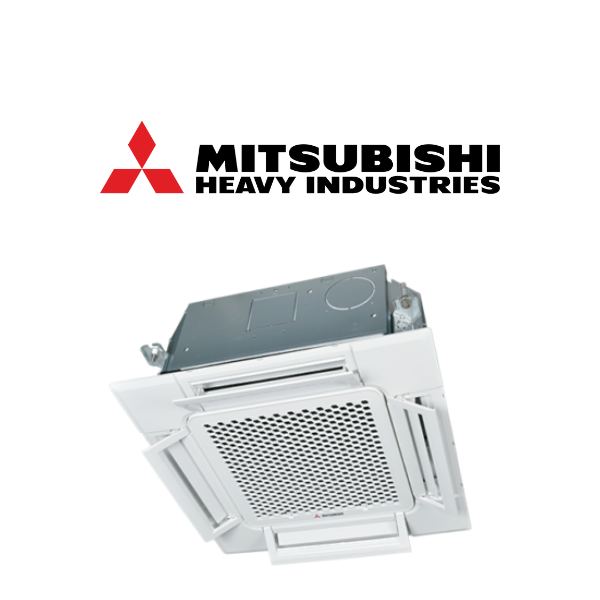

Mitsubishi Heavy Industries 2.5kW FDTC25VH1 Indoor Multi Compact Ceiling Cassette Air Conditioning Unit
MHI Indoor Multi Compact Cassette Unit
$1,282.73 Excl GST
Mitsubishi Heavy Industries 2.5kW FDTC25VH1 Multi Compact Ceiling Cassette Indoor Unit
With a compact design, quiet operation and Draught Control Technology, the FDTC series of compact ceiling cassettes offer the perfect solution for a range of commercial applications. At only 258mm high, the FDTC series is one of the most compact ceiling cassettes on the market, allowing for easy installation in spaces with minimal roof space. Optional motion sensor offers an energy saving solution by monitoring activity in the room and automatically switching to energy-saving mode at times of low activity. Fascia panel available in both honeycomb and grid design – see brochure for more info.
Key features:
- Compact design
- Draught control technology to deliver efficient airflow and prevent draughts
- Various timer functions for convenience
- Optional motion sensor for increased energy
- 600mm built-in drain pump
(FDTC25VH1)
| Indoor Unit Name | FDTC25VH1 | FDTC35VH1 | FDTC50VH | FDTC60VH |
|---|---|---|---|---|
| Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 |
| Heating Capacity (kW) | 3.4 | 4.5 | 5.8 | 6.8 |
| Sound Power Level (Cool/Heat) dB(A) | 51 / 52 | 52 / 54 | 59 / 59 | 60 / 60 |
| Sound Pressure Level H/M/L/UL (Cool) dB(A) | 38 / 34 / 30 / 27 | 49 / 36 / 32 / 29 | 44 / 40 / 35 / 27 | 46 / 42 / 38 / 31 |
| Sound Pressure Level H/M/L/UL (Heat) dB(A) | 39 / 36 / 32 / 28 | 41 / 38 / 34 / 30 | 44 / 40 / 35 / 27 | 46 / 42 / 38 / 31 |
| Indoor Airflow H/M/L/UL (Cool) (I/s) | 142 / 125 / 117 / 100 | 150 / 133 / 125 / 108 | 217 / 183 / 150 / 117 | 233 / 200 / 167 / 133 |
| Indoor Airflow H/M/L/UL (Heat) (I/s) | 158 / 142 / 125 / 108 | 167 / 150 / 133 / 117 | 217 / 183 / 150 / 117 | 233 / 200 / 167 / 133 |
| Unit Dimensions (HxWxD) (mm) | 248 x 570 x 570 | |||
| Unit Weight (kg) | 16 | 16.5 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Connectable Outdoor Units | SCM 40,45,50,60,71,80,100 ZS-W | SCM 50,60,71,80,100 ZS-W | SCM 60,71,80,100 ZS-W | |
| SKU | FDTC25VH1 |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 16.0000kg |
| Shipping Width | 0.570m |
| Shipping Height | 0.248m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.080575000m3 |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
