Mitsubishi Heavy Industries FDU100VNPWVH-RC-EXZ3A 10.0 kW Ducted System

FDU100VH/FDC100VNP-W 1PH Ducted Air Conditioner

$2,561.00 Incl GST
$2,328.18 Excl GST
In Stock

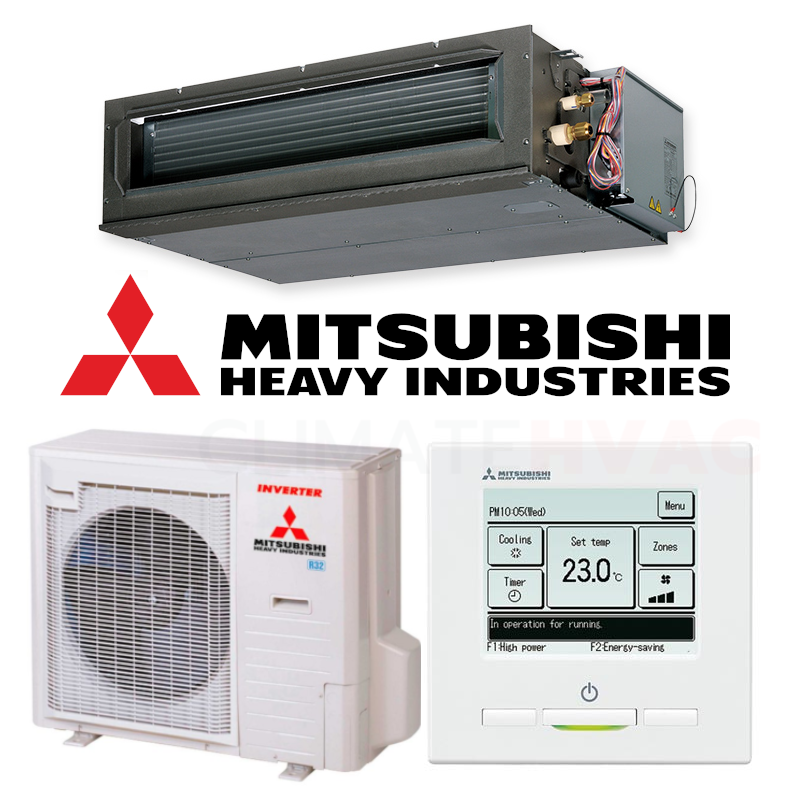

Mitsubishi Heavy Industries FDU100VNPWVH-RC-EXZ3A 10.0 kW Single Phase Ducted System - Includes Outdoor Unit FDC100VNP-W

Features:

  • Single phase model
  • Automatic operation Mode
  • Weekly / Sleep Timer
  • Silent operation

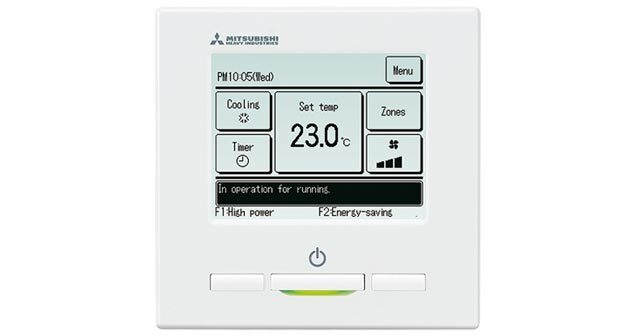

  • Wired and wireless control options

(FDU100VNPWVH-RC-EXZ3A)

Set FDU100VNPWVH-RC-EXZ3A

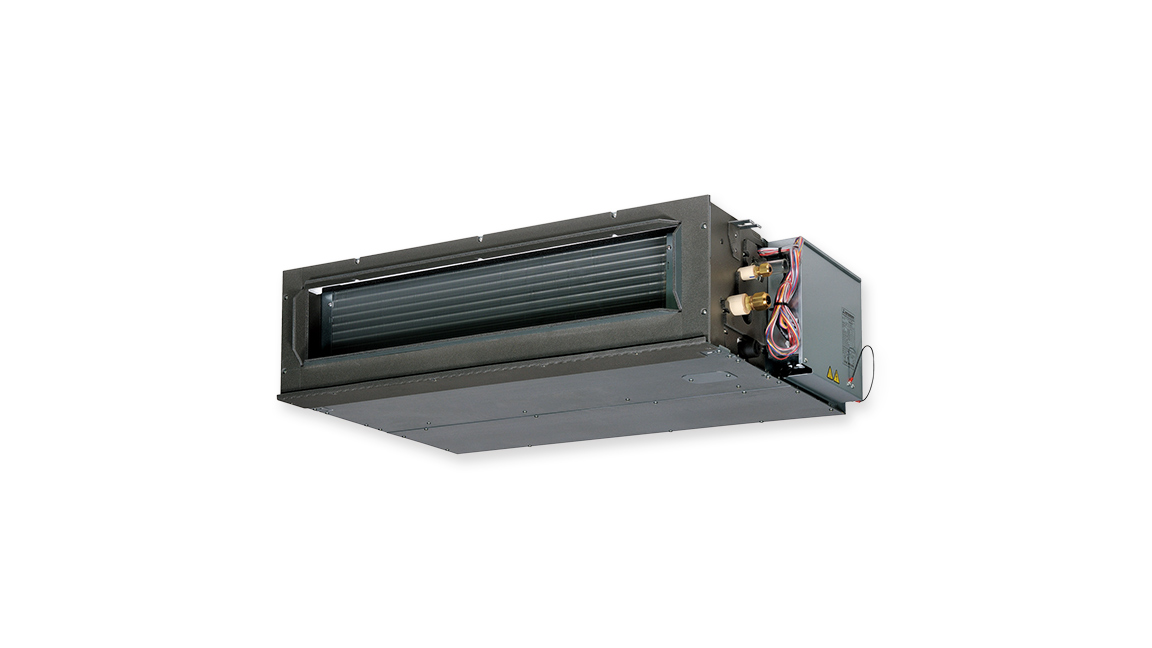

Indoor FDU100VH

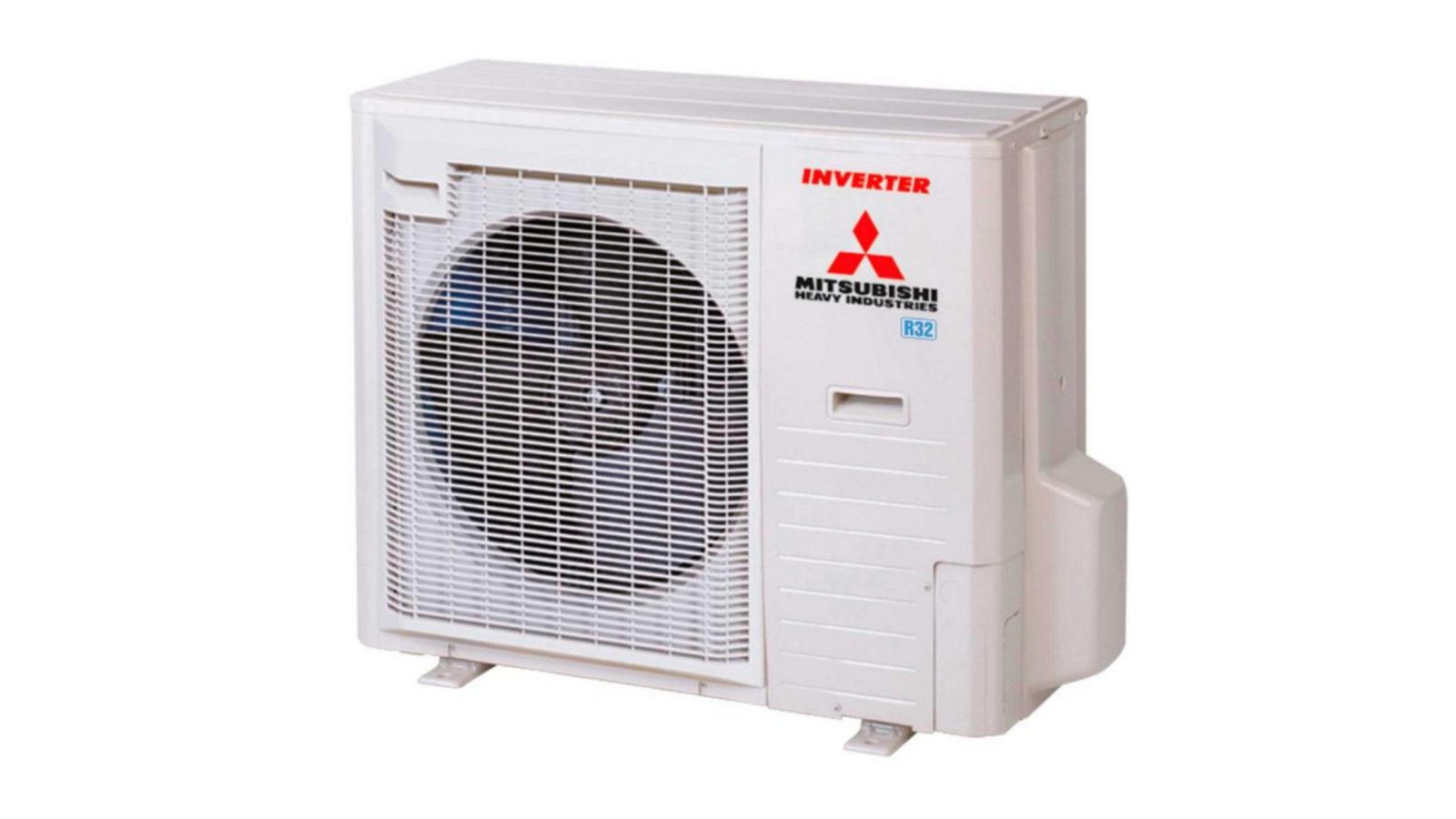

Outdoor FDC100VNP-W
Power Suppply 1 Phase 250V 50Hz
Capacity Cooling T1 kW 10 (2.1-10.2)
Heating H1 10 (1.7-10.4)
Input Cooling T1 kW 3.08
Heating H1 2.45
Max running current   A 19
EER Cooling T1   3.25
COP Heating H1   4.08
Sound Power Level (JIS C9612) Outdoor dB(A) 68
Sound Pressure Level (JIS C9612) Indoor (P-Hi/Hi/Me/Lo) dB(A) 44 / 38 / 36 / 30
Outdoor 56
Airflow Indoor (P-Hi/Hi/Me/Lo) l/s 600 / 467 / 417 / 317
External dimensions (HxWxD) Indoor mm 280 x 1370 x 740
Outdoor 750 x 880(+88) x 340
Net weight Indoor kg 54
Outdoor 57
Air Connection Supply mm 170 x 1200
Return 235 x 1280
Refrigerant Piping Liquid Line mm Ø6.35
Gas Line Ø15.88
Connection Method   Flare Connection
Refrigerant Type   R32
Quantity kg 1.7
Pre charged to pipe length m 15
Maximum pipe length  m 30
Max Vertical Height Difference O.U. above I.U. m 20
O.U. below I.U. 20
SKU FDU100VNPWVH-RC-EXZ3A
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 111.0000kg
Shipping Cubic 0.530704000m3
