Mitsubishi Heavy (MHI) Bronte SRK100AVSAWZR 10.0kW Wall Split 3 Phase Air Conditioning System
SRK100ZR-W / FDCA100VSA-W Mitsubishi Heavy (MHI) Split
$3,526.35 Excl GST
NOTE: This Product has been superseded by the SRK100AVSAWZRF Built In Wi-Fi Model.

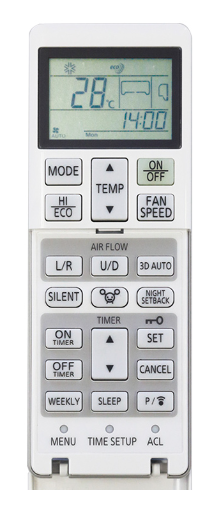

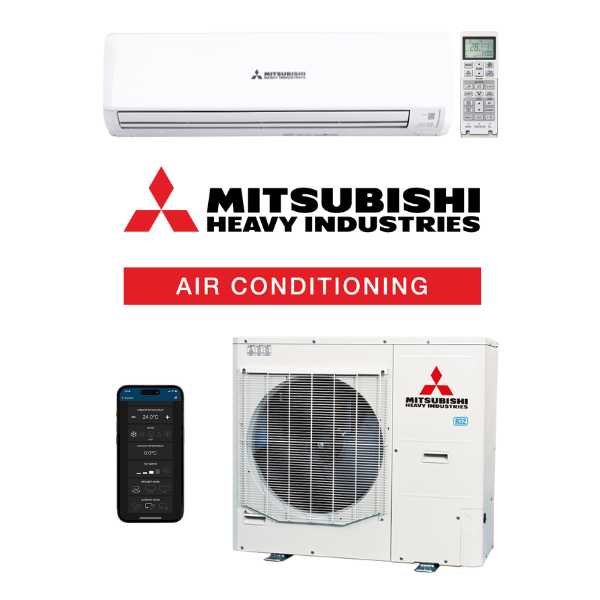

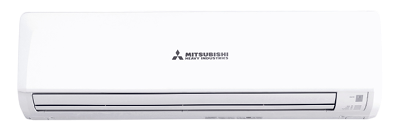

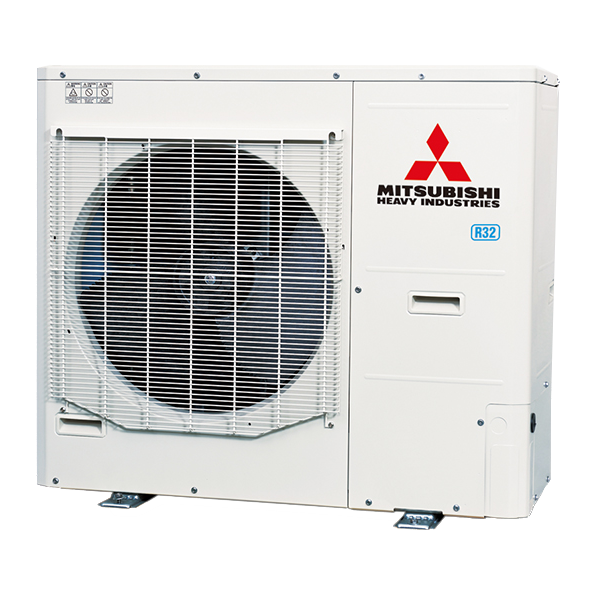

Mitsubishi Heavy Industries SRK100ZR-W 10.0kW Three Phase Reverse Cycle Split System (Optional Wi-Fi Controller) - Includes Outdoor Unit FDCA100VSA-W and Wireless Controller
Ideal for a large living or dining room or sitting room.
Features:
- Advanced jet air technology delivering long reach airflow
- Allergen clear system to capture and eliminate allergens
- Wide range of convenient timer functions
- Energy efficient R32 refrigerant

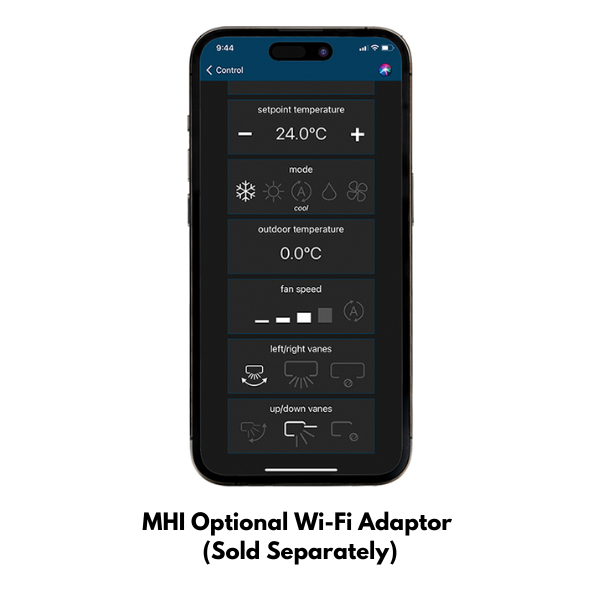

- Optional Wi-Fi control
(SRK100AVSAWZR)
System Name | DXK21ZRA-W-SET | DXK24ZRA-W-SET | SRK24YRA-W-SET | DXK28ZRA-W-SET | DXK33ZRA-W-SET | SRK100AVNAWZR | SRK100AVSAWZR |
---|---|---|---|---|---|---|---|
Indoor Unit | DXK21ZRA-W | DXK24ZRA-W | SRK24YRA-W | DXK28ZRA-W | DXK33ZRA-W | SRK100ZR-W | SRK100ZR-W |
Outdoor Unit | DXC21ZRA-W | DXC24ZRA-W | SRC24YRA-W | DXC28ZRA-W | DXC33ZRA-W | FDCA100VNA-W | FDCA100VSA-W |
Power Supply | 1 Phase, 240V, 50Hz | 3 Phase, 380 ~ 415V, 50Hz | |||||
Cooling Capacity (kW) | 6.3 | 7.1 | 7.1 | 8.0 | 9.5 | 10.0 | 10.0 |
Heating Capacity (kW) | 7.1 | 8.0 | - | 9.0 | 10.3 | 11.2 | 11.2 |
EER/COP | 3.99 / 4.44 | 3.86 / 3.96 | 3.86 / - | 3.60 / 3.75 | 3.71 / 3.90 | 3.13 / 3.68 | 3.13 / 3.68 |
Outdoor Sound Power dB(A) | 64 | 65 | 68 | 69 | |||
Refrigerant Type/Amount (kg) | R32 / 1.25 | R32 / 1.6 | R32 / 2.0 | R32 / 3.3 | |||
Max Pipe Length (m) | 30 | 50 | |||||
Max Level Difference (m) | I.D.U Higher 20 / O.D.U Higher 20 | I.D.U Higher 15 / O.D.U Higher 50 | |||||
Indoor Dimensions (HxWxD) (mm) | 339 x 1197 x 262 | ||||||
Outdoor Dimensions (HxWxD) (mm) | 640 x 800(+71) x 290 | 750 x 880(+88) x 340 | 845 x 970(+89) x 370 | ||||
Indoor Weight (kg) | 15.5 | 16.5 | |||||
Outdoor Weight (kg) | 45 | 58 | 70.5 | 77 | 78 | ||
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 12.7 | 6.35 / 15.88 | 9.52 / 15.88 |
SKU | SRK100AVSAWZR |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 94.5000kg |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
