Mitsubishi Heavy (MHI) FDU125AVSXWVH-RC-EXZ3A 12.5kW Ducted 3 Phase Air Conditioning System
FDU125VH / FDCA125VSX-W Mitsubishi Heavy (MHI) Ducted
$4,130.00 Excl GST

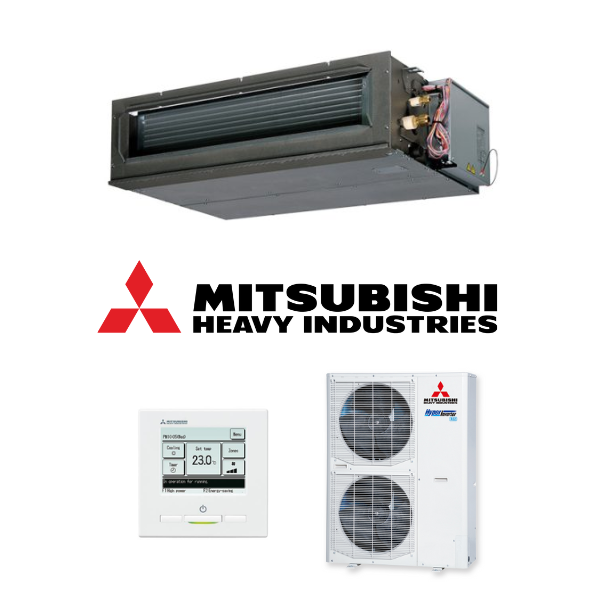

Mitsubishi Heavy Industries FDU125AVSXWVH 12.5kW Three Phase Ducted System - Includes Outdoor Unit FDCA125VSX-W
The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.
Key Features:
- Slimline design
- Three Phase Model
- High Power Mode for rapid cooling and heating
- Weekly & Sleep timers
- Silent operation
- Dry operation to reduce humidity
(FDU125AVSXWVH-RC-EXZ3A)
System Name | FDU100AVSAWVH | FDU125AVSXWVH | FDU140AVSXWVH | |||
---|---|---|---|---|---|---|

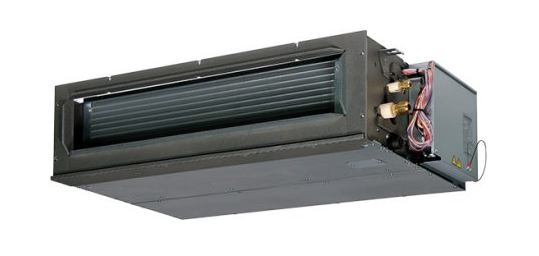

Indoor Unit | FDU100VH | FDU125VH | FDU140VH | |||

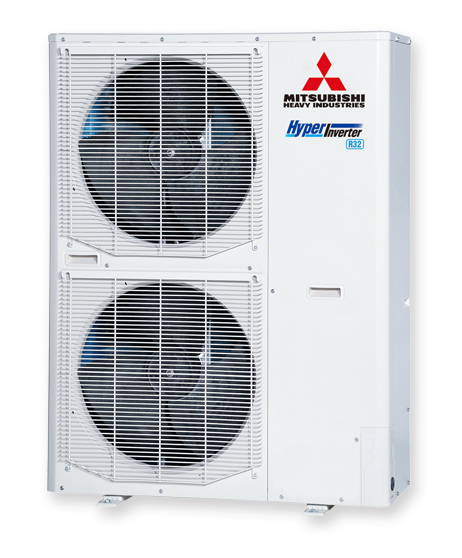

Outdoor Unit | FDCA100VSA-W | FDCA125VSX-W | FDCA140VSX-W | |||
Power Supply | 3 Phase, 380 ~ 415V, 50Hz | |||||
Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | |||
Heating Capacity (kW) | 11.2 | 14.0 | 16.0 | |||
Rated Power Input (Cool/Heat) (kW) | 2.99 / 2.66 | 3.49 / 3.61 | 4.22 / 4.22 | |||
EER/COP | 3.35 / 4.21 | 3.58 / 3.88 | 3.32 / 3.79 | |||
Duct Sizes (Supply/Return) (mm) | 170 x 1200 / 235 x 1280 | |||||
Max External Static Pressure (Pa) | 200 | |||||
Refrigerant Type/Amount (kg) | R32 / 3.3 | R32 / 4.0 | ||||
Max Pipe Length (m) | 50 | 100 | ||||
Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 50 | |||||
Indoor Dimensions (HxWxD) (mm) | 280 x 1370 x 740 | |||||
Outdoor Dimensions (HxWxD) (mm) | 845 x 970 x 370 | 1300 x 970 x 370 | ||||
Indoor Weight (kg) | 54 | |||||
Outdoor Weight (kg) | 78 | 99 | ||||
Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 |
SKU | FDU125AVSXWVH-RC-EXZ3A |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 153.0000kg |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
