Best Prices Mitsubishi Heavy (MHI) Lite SRF35ZS-W-Set 3.5kW AC Low Cost Installation

Mitsubishi Heavy (MHI) Lite SRF35ZS-W-Set 3.5kW Air Conditioning System

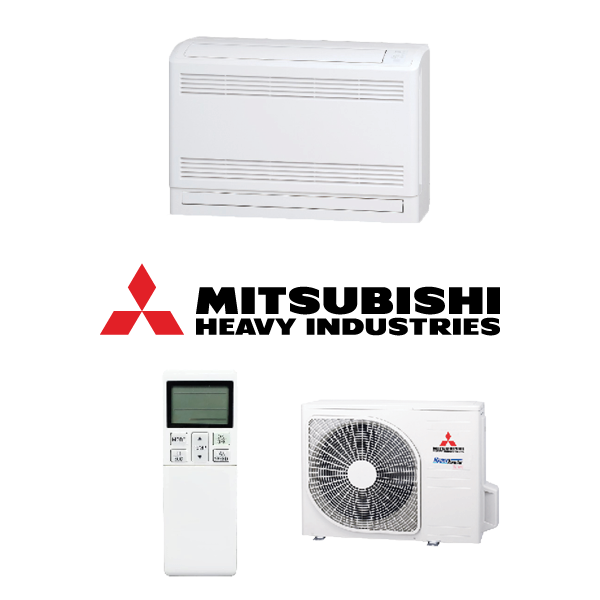

Mitsubishi Heavy Industries SRF35ZS-W 3.5 kW Floor Standing Splite System??- Includes Outdoor Unit??SRC35ZSA-W

Powerful yet quiet, the Wera??? floor standing heat pump is perfect for rooms where wall space is limited.

With the ability to select air outlet, high performance in low temps and hi power mode to deliver rapid heating and cooling, the Wera??? series is perfect solution for keeping small, limited spaces comfortable in all seasons.

Features:

Reverse Cycle model
Air Outlet selection for ultimate airflow control
Clean air with Allergen Clear Filter
Hi Power mode for rapid heating and cooling
Optional Wi-Fi control

(SRF35ZS-W-Set)

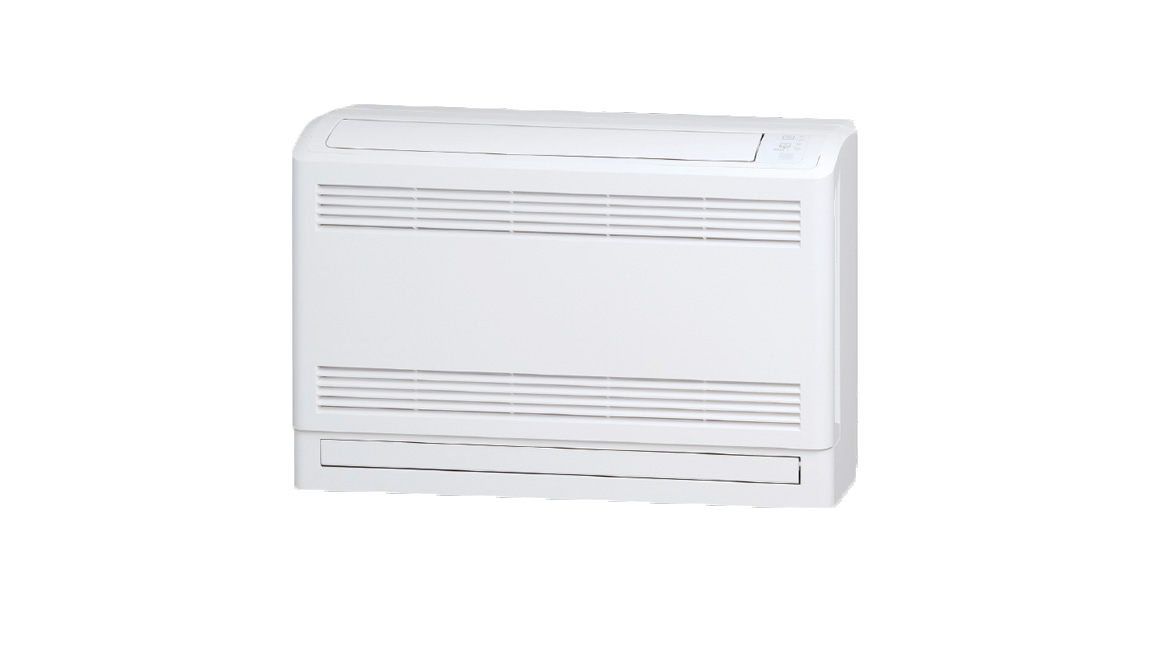

Indoor Unit

SRF35ZS-W

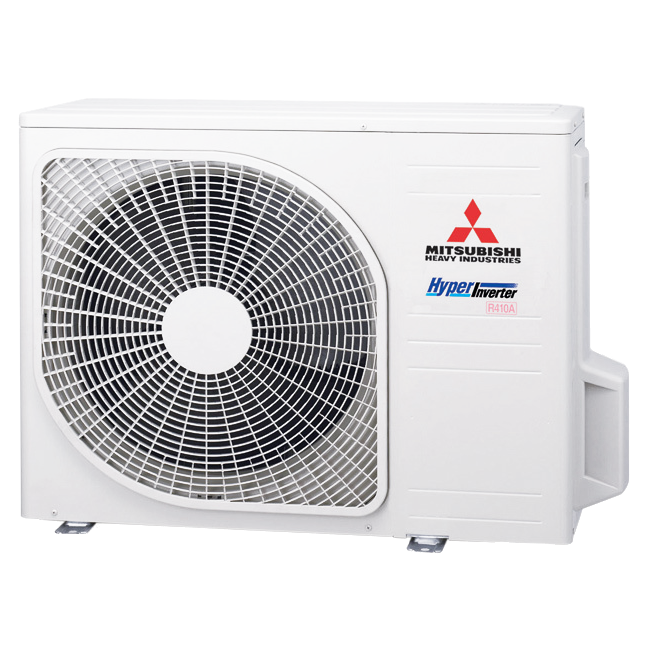

Outdoor Unit

SRC35ZSA-W

Power Supply

1 Phase, 220 ~ 240v, 50Hz

Rated Capacity

Cool (kW)	3.5
Heat (kW)	4.5

Capacity Range

Cool (kW)	0.9 - 4.1
Heat (kW)	0.8 - 5.2

Power Input (Rated)

Cool (kW)	0.82
Heat (kW)	1.12

Running Current

Cool (A)	3.70
Heat (A)	4.90

EER/COP

4.27 / 4.02

Energy Star Ratings

Cool	4.0 / 3.5 / 3.5
Heat	3.0 / 2.5 / 2.0

Dimensions (HxWxD)

Indoor (mm)	600 x 860 x 238
Outdoor (mm)	540 x 842 x 290

Weight

Indoor (kg)	19
Outdoor (kg)	34.5

Refrigerant Type

R32

Refrigerant Amount

(kg)

0.78

Pre-Charged to Pipe

(m)

Max Pipe Length

(m)

Max Level Difference

Indoor Higher (m)	10
Outdoor Higher (m)	10

Pipe Sizes

Liquid (mm)	6.35
Gas (mm)	9.52

Connection Type

Flare

Indoor Airflow Rate

Cool (l/s)	153 / 130 / 121 / 106
Heat (l/s)	178 / 138 / 135 / 123

Indoor Sound Pressure Level (H/SL)

(dBA)

40 / 35 / 33 / 29

Outdoor Sound Pressure Level (H/SL)

(dBA)

Outdoor EPA Sound Power Level (H)

(dBA)

SKU	SRF35ZS-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	53.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
