Panasonic S-100PF1E5B 10.0kW Slimline 1 Phase Ducted System

S-100PF1E5B/U-100PZ2R5 Ducted System Air Conditioner

$3,981.00 Incl GST
$3,619.09 Excl GST
In Stock

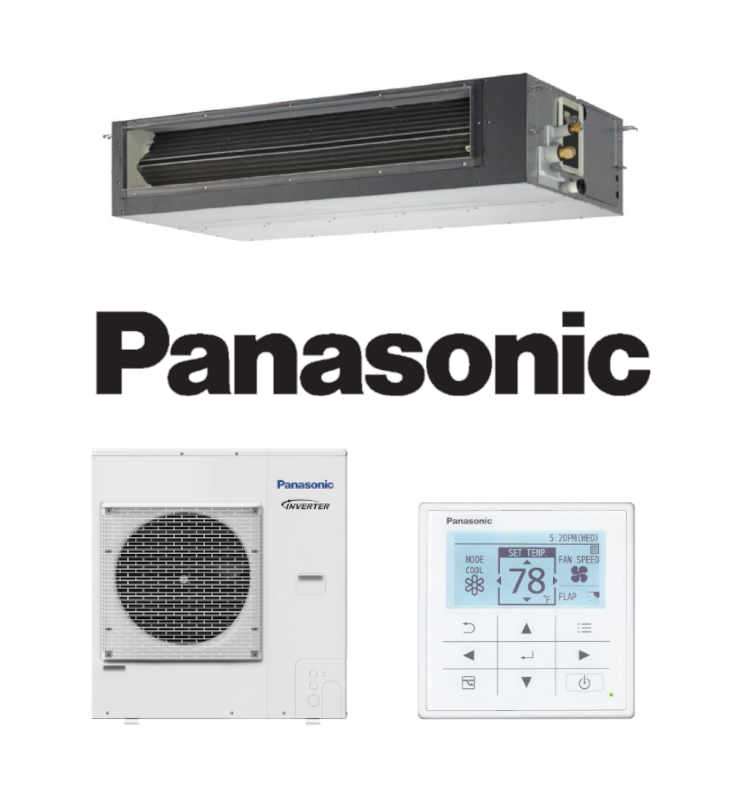

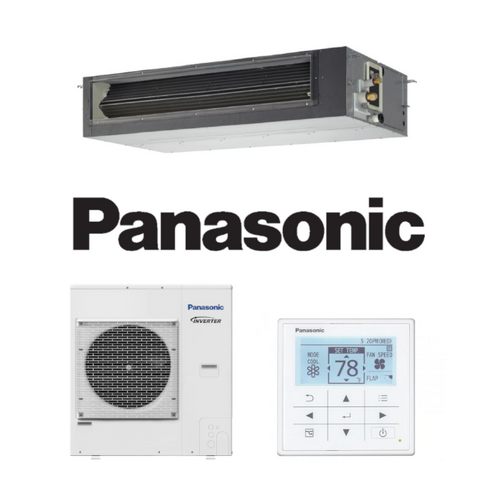

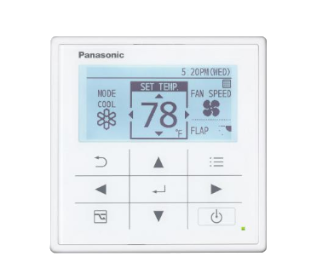

Panasonic S-100PF1E5B 10.0kW Slimline Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-100PZ2R5

Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.

Features:

  • Variable external static pressure control
  • System example
  • More powerful drain pump

(S-100PF1E5B)

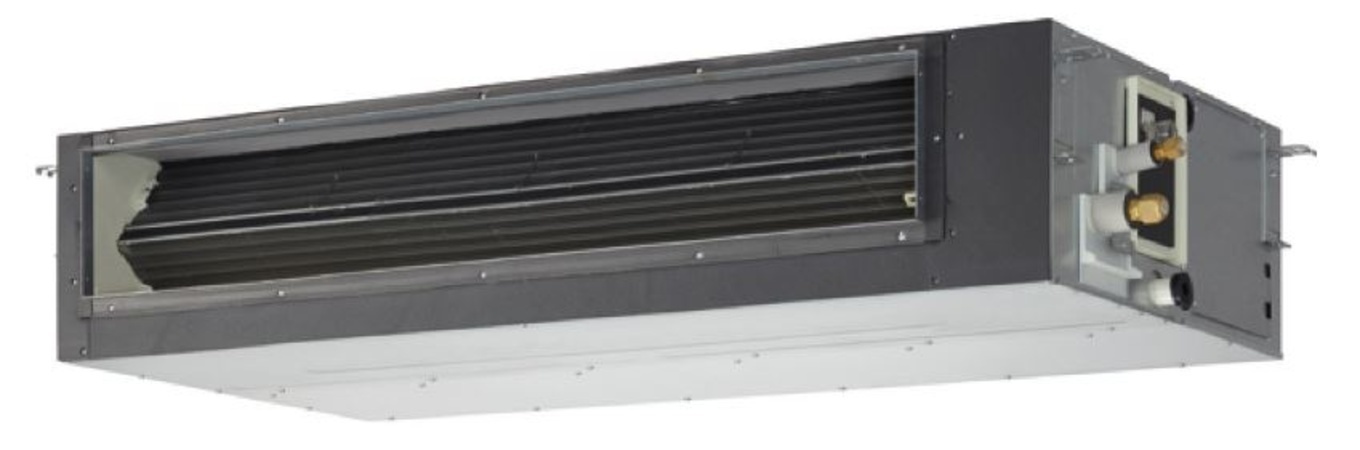

INDOOR UNIT S-100PF1E5B

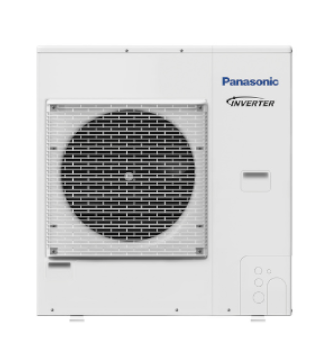

OUTDOOR UNIT U-100PZ2R5
Rated Capacity Cool (kW) 10.0
Heat (kW) 10.0
Capacity Range Cool (kW) (3.0 - 11.5)
Heat (kW) (3.0 - 14.0)
Power Input (Rated) Cool (kW) 2.73
Heat (kW) 2.32
E.E.R./C.O.P. Cool/Heat 3.55/4.31
Air Flow Rate (Rated) I/S 533
Indoor Sound Level (H/M/L) dBA 60/56/53
Piping Length (m) 5 - 50
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 290 x 1400 x 700
Outdoor (mm) 996 x 980 x 370
Weight Indoor(kg) 45
Outdoor(kg) 90
Power Supply V/Hz 1 Phase, 240V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
Gas (mm)
SKU S-100PF1E5B
Brand Panasonic
Shipping Weight 135.0000kg
Shipping Cubic 0.645350000m3
