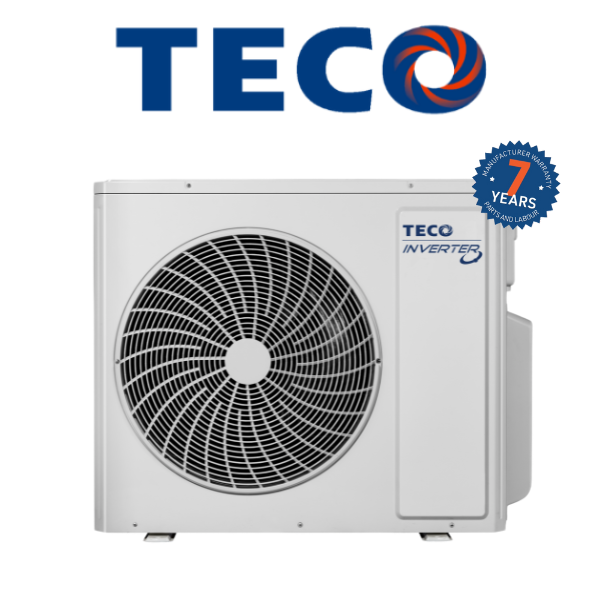

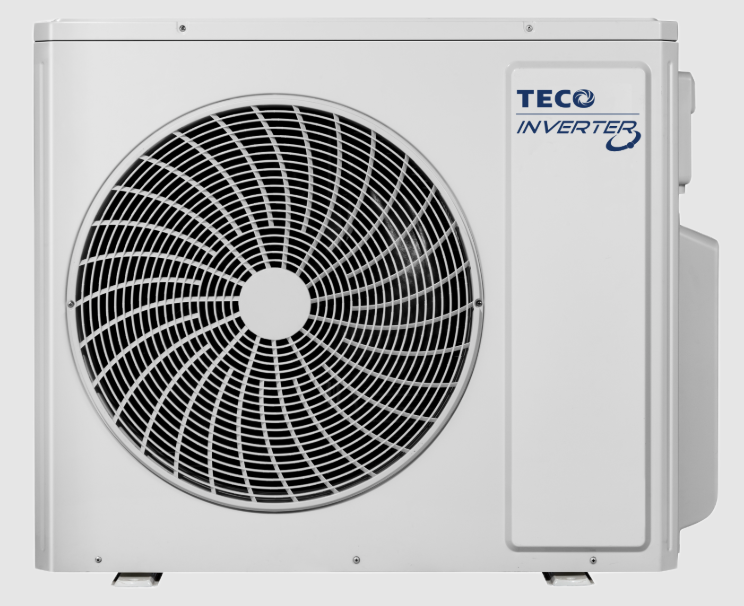

TECO TSOM73HVAG3 7.3kW Outdoor Only Multi R32 Inverter Air Conditioning Unit (1 ~ 3 Connectable Units)
TECO Outdoor Multi Unit (1 - 3 Connectable Units)
$1,394.54 Excl GST
*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.
TECO TSOM73HVAG3 7.3kW Outdoor Only Multi R32 Inverter Air Conditioning Unit
The TSOM73HVAG3 (7.3kW) Multi-Split System is a powerful and flexible climate solution that connects up to 3 indoor units for individual zone control. Designed for performance and reliability, it operates efficiently across a wide voltage range (160V–276V) even in outdoor temperatures as low as -15°C. It suits smart homes and energy-conscious environments with built-in WiFi, optional wired controller compatibility, and DRED compliance. Comfort is further enhanced by the Dehumidify mode, the Turbo fan function, and the I Feel sensor for precise temperature targeting. The pre-heat function prevents cold air drafts by delaying the fan start up until the Evaporator Coil heats up in Winter , while the ion generator actively improves indoor air quality. For lasting durability, it features a Black Fin-coated condenser coil, triple-coated PCB for protection against moisture and dust , and built-in Auto-Restart and Self-Diagnosis functions to deliver consistent and dependable performance.
Key Features:
- 7 Years Warranty (Domestic Application)
- 2 Years Warranty (Commercial Application)
- Blackfin Coating on Condenser Coil
- DRED Enabled
- Wide Operating Temp and Voltage Range
- Auto Restart Function
- Outdoor Anti-Corrosion Housing
- Triple-Coated PCB
- Self-Diagnosis Capability
(TSOM73HVAG3)
| Outdoor Unit | TSOM73HVAG3 | TSOM82HVAG4 | TSOM106HVAG4 | TSOM123HVAG5 |
|---|---|---|---|---|
| Power Supply (V - Hz - Phase) | 220-240 / 50 / 1 | |||
| Cool Capacity Rated/Min-Max (kW) | 7.3 (2.3-9.2) | 8.2 (2.3-11.0) | 10.6 (2.6-12.0) | 12.3 (2.6-15.2) |
| Heat Capacity Rated/Min-Max (kW) | 8.3 (2.8-9.2) | 8.8 (2.8-10.25) | 11.4 (3.0-14.0) | 12.6 (3.0-15.5) |
| Power Input Cool/Heat (kW) | 1.96 / 2.0 | 1.88 / 2.12 | 2.65 / 2.85 | 3.1 / 3.2 |
| Current Input Cool/Heat (A) | 8.696 / 8.873 | 8.341 / 9.406 | 11.757 / 12.644 | 13.75 / 14.2 |
| Standby Power Consumption (W) | 8.1 | 10 | 10.5 | 12 |
| EER / COP | 3.72 / 4.15 | 4.36 / 4.15 | 4.00 / 4.00 | 3.97 / 3.94 |
| AEER / ACOP | 3.67 / 4.09 | 4.28 / 4.09 | 3.95 / 3.95 | 3.92 / 3.89 |
| Star Rating (Cold/Mix/Hot) - Cool | 3 / 3 / 3.5 | 3.5 / 3.5 / 4 | ||
| Energy Consumption (Cold/Mix/Hot) kWh Cool | 396 / 623 / 1797 | 408 / 1262 / 1814 | 524 / 827 / 2386 | 601 / 953 / 2748 |
| Star Rating (Cold/Mix/Hot) - Heat | 2 / 3 / 3.5 | |||
| Energy Consumption (Cold/Mix/Hot) kWh Heat | 2481 / 1021 / 156 | 3032 / 1087 / 333 | 3840 / 1390 / 210 | 4170 / 1495 / 223 |
| Airflow Volume (m3/h) | 3800 | 5800 | ||
| Sound Pressure Level Cool/Heat (dBA) | 57 / 58 | 58 | 60 | |
| Sound Power Level (dBA) | 66.4 | 68.8 | 69.1 | 71.4 |
| Min/Max Voltage | 198 / 264 | |||
| Operating Range (Temp) Cool/Heat | -15 to 52 / -22 to 24 | |||
| Maximum No. of Indoor Units | 3 | 4 | 5 | |
| Refrigerant Type/Charge (kg) | R32 / 1.7 | R32 / 1.8 | R32 / 2.4 | |
| Pipe Sizes Liquid/Gas (mm) | (6.35 + 9.52)x3 | (6.35 + 9.52)x4 | (6.35 + 9.52)x5 | |
| Connection Pipe Max Total Length (m) | 60 | 70 | 80 | 100 |
| Connection Pipe Max Height Difference (m) | 15 | 25 | ||
| Unit Dimensions (HxWxD) (mm) | 660 x 964 x 402 | 826 x 1020 x 427 | ||
| Package Dimensions (HxWxD) (mm) | 805 x 1040 x 463 | 955 x 1095 x 500 | ||
| Net Weight (kg) | 47.5 | 51 | 72 | 73 |
| Gross Weight (kg) | 60 | 63.5 | 85 | 86 |
| SKU | TSOM73HVAG3 |
| Brand | TECO |
| Shipping Weight | 60.0000kg |
| Shipping Width | 0.463m |
| Shipping Height | 0.805m |
| Shipping Length | 1.040m |
| Shipping Cubic | 0.387623600m3 |
| Unit Of Measure | ea |
TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
