TECO TWS-TSO52H3DVJT 5.2kW Wall Split Wifi Air Conditioning System

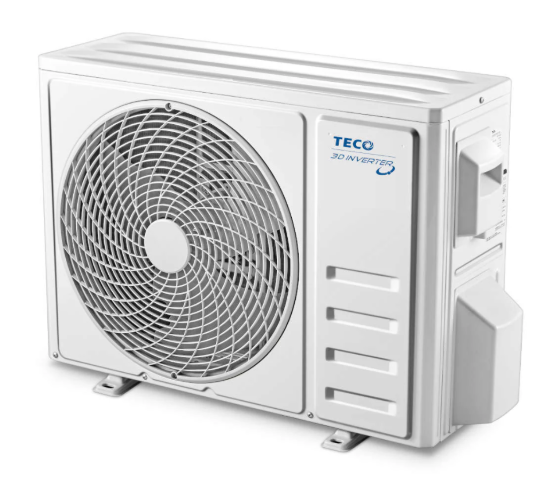

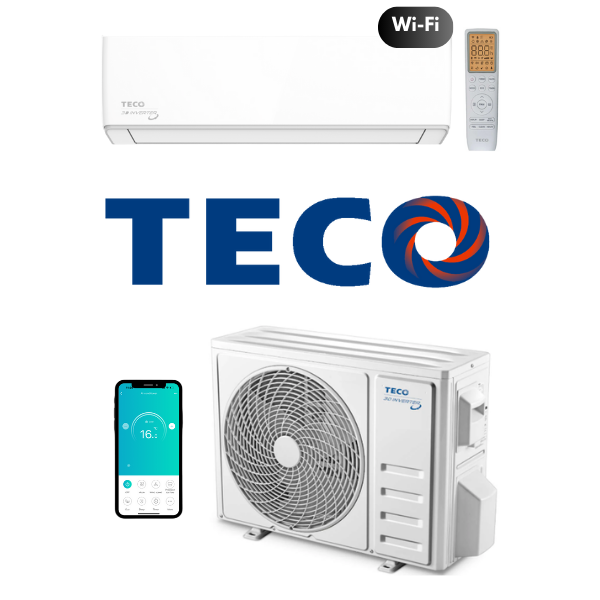

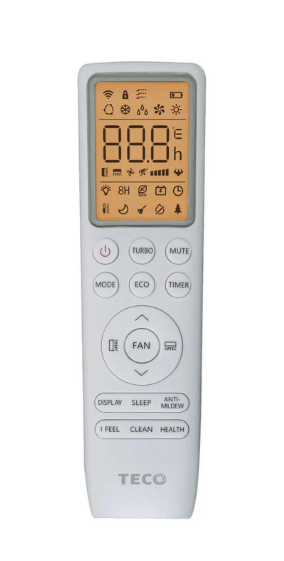

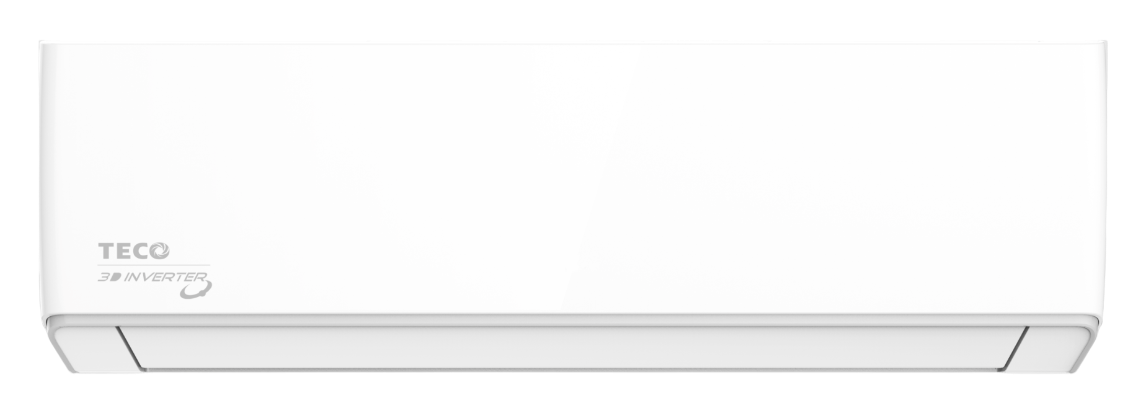

TECO Platinum 3D TWS-TSO52H3DVJT 5.2kW Wall Split System (Built-In Wi-Fi) - Inlcudes Outdoor Unit and Wireless Controller

The spectacular Platinum 3D range is the latest and most efficient range of DC inverter split systems that TECO have to offer. Engineered to perform in some of the harshest Australian conditions, the Platinum 3D range is a smart choice when designing for energy reductions at an affordable price. Registered and approved under the latest determination of the Minimum Energy Performance standards, the Platinum 3D range offers high efficiency compared to other TECO models, regardless of the climate zone you reside in.

Key Features:

Exceptional Efficiency performance
Gold Fin Protection

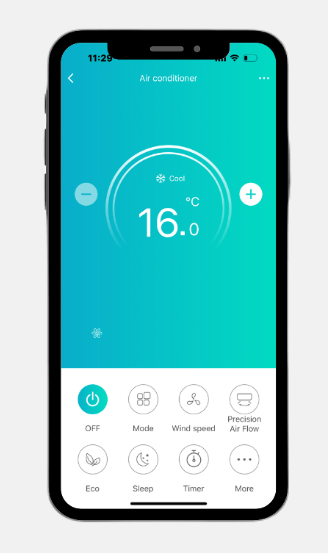

Built-In Wi Fi Control
Catechin Filters
High Density Filters
I-FEEL Follow Me Mode
Self-Clean Indoor
Anti-Mildew Function

(TWS-TSO52H3DVJT)

System Names	TWS-TSO26H3DVKT	TWS-TSO35H3DVJT	TWS-TSO52H3DVJT	TWS-TSO72H3DVJT	TWS-TSO88H3DVJT
Indoor Unit	TWS26H3DVKT	TWS35H3DVJT	TWS52H3DVJT	TWS72H3DVJT	TWS88H3DVJT
Outdoor Unit	TSO26H3DVKT	TSO35H3DVJT	TSO52H3DVJT	TSO72H3DVJT	TSO88H3DVJT
Rated Cooling Capacity (kW)	2.64	3.5	5.2	7.0	8.8
Rated Heating Capacity (kW)	4.05	4.5	5.2	7.0	8.8
Running Current Rated/Min-Max (A) - Cool	4.3 (1.3 - 6.6)	3.6 (1.5 - 7.8)	6.5 (1.5 - 12.0)	8.8 (1.5 - 14.5)	10.9 (1.8 - 15.5)
Running Current Rated/Min-Max (A) - Heat	4.6 (1.3 - 7.4)	4.6 (1.5 - 8.2)	5.3 (1.5 - 13.0)	9.1 (1.5 - 15.0)	9.9 (1.8 - 15.5)
Power Input Rated/Min-Max (W) - Cool	595 (290 - 1450)	800 (290 - 1400)	1500 (400 - 1850)	2010 (350 - 2600)	2500 (350 - 3100)
Power Input Rated/Min-Max (W) - Heat	985 (290 - 1580)	1070 (290 - 1990)	1200 (400 - 1800)	2090 (350 - 2500)	2250 (350 - 3340)
AEER/ACOP	4.34 / 4.06	4.30 / 4.15	3.42 / 4.27	3.45 / 3.32	3.49 / 3.88
Star Rating (Zone) Hot/Med/Cold - Cool	9.5 / 5.5 / 6.0	5.5 / 4.5 / 4.5	3.5 / 3.0 / 3.0	3.0 / 3.0 / 3.0
Star Rating (Zone) Hot/Med/Cold - Heat	3.5 / 2.5 / 2.0	3.0 / 2.5 / 2.0		3.0 / 2.5 / 1.5	3.0 / 2.5 / 2.0
Moisture Removal (L/Hr)	0.8	1.1	1.8	2.4	3.2
Indoor Fan Speeds	8
Indoor Air Flow (Max) Cool/Heat (L/s)	172 / 172	161 / 172	305 / 305		375 / 375
Compressor Type	Rotary
Indoor/Outdoor Max Sound Power Level (dBA)	47 / 58	48 / 60	52 / 62	53 / 64	54 / 64
Refrigerant Type	R32
Pipe Sizes Liquid/Gas (mm)	6.35 + 9.52		6.35 + 12.7		6.35 / 15.9
Max Pipe Length (m)	15
Max Height Difference (m)	10
Pipe Connection Method	Flare
Indoor Unit Dimensions (H x W x D) (mm)	292 x 811 x 203		315 x 1010 x 220		360 x 1191 x 258
Outdoor Unit Dimension (H x W x D) (mm)	549 x 810 x 305		602 x 863 x 349	602 x 927 x 380	803 x 978 x 421
Indoor Unit Weight (kg)	10	10	13	13.5	18
Outdoor Unit Weight (kg)	22	26	32	37	46.5
Ambient Temperature (C)	-15 / 50		-15 / 52

SKU	TWS-TSO52H3DVJT
Brand	TECO
Shipping Weight	45.0000kg
Shipping Cubic	0.251308000m3
Unit Of Measure	ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
