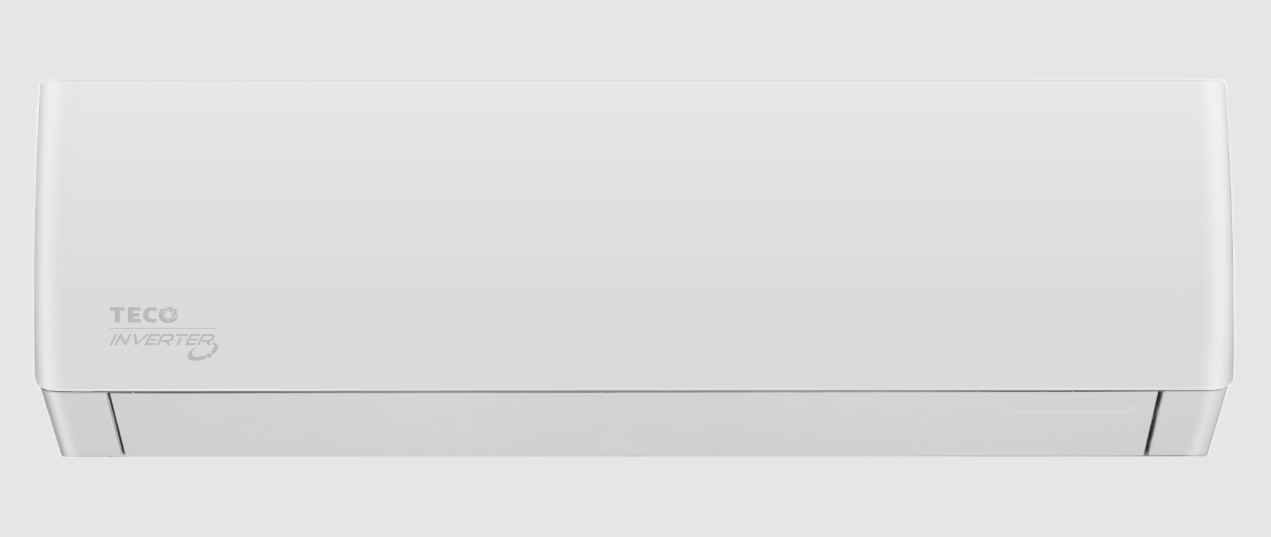

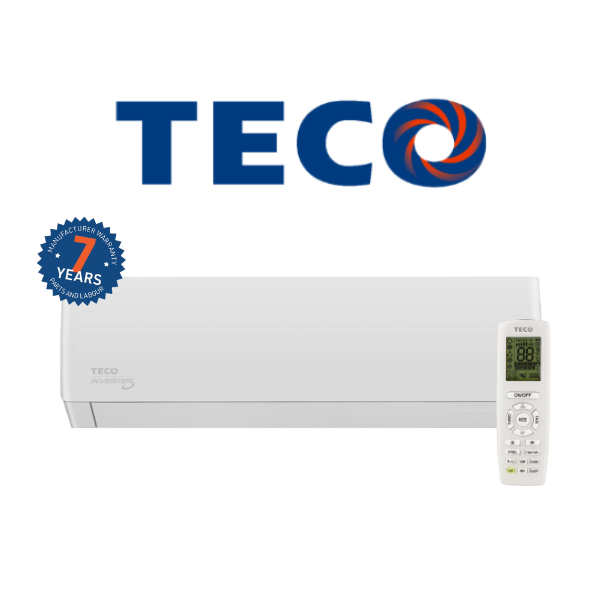

TECO TWSM22HVAG 2.25kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi R32)
TECO Indoor Multi High Wall Split Unit
$306.36 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
TECO TWSM22HVAG 2.2kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi)

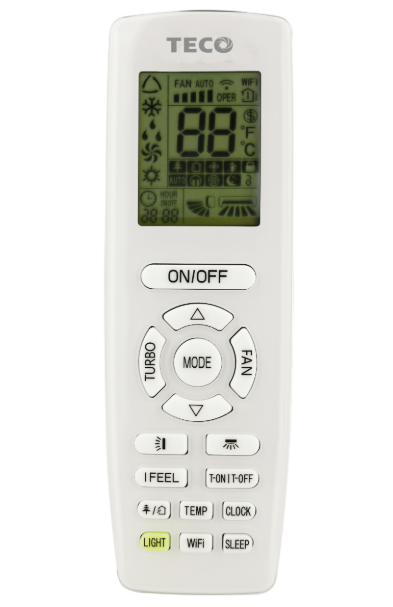

The TWSM22HVAG 2.2kW High Wall Mounted Indoor Unit is a sleek and efficient air conditioning solution, ideal for smaller rooms such as bedrooms, home offices, and compact living spaces. Designed for whisper-quiet operation, it ensures minimal disruption while delivering powerful cooling and heating performance. Equipped with Plasmacluster Ion Sterilisation, it actively improves air quality by neutralising airborne bacteria and allergens. The Goldfin-coated heat exchanger enhances durability and efficiency, protecting against corrosion in humid environments. With WiFi connectivity and intuitive remote control, this unit offers seamless comfort and smart home integration. Additionally, it can be controlled by an optional wall-mounted controller for enhanced usability and precise temperature adjustments.
Key Features:
- 7 Years Warranty (Domestic Application)
- 2 Years Warranty (Commercial Application)
- Built-in Wi-Fi
- Dehumidify Mode
- I Feel Function
- Ion Generator
- Dry Anti-Mildew Design
- Turbo Fan Mode
- Pre-Heat Function
- Gold Fin Coating - Evaporator Coil
(TWSM22HVAG)
| Indoor Unit | TWSM22HVAG | TWSM26HVAG | TWSM35HVAG | TWSM50HVAG | TWSM64HVAG | TWSM71HVAG |
|---|---|---|---|---|---|---|
| Power Supply (V - Hz - Phase) | 220-240 / 50 / 1 | |||||
| Cool Capacity Rated/Min-Max (kW) | 2.25 (0.35-3.05) | 2.65 (0.45-3.7 | 3.52 (0.55-4.4) | 5.2 (1.0-6.5) | 6.3 (1.6-8.6) | 7.1 (1.1-8.8) |
| Heat Capacity Rated/Min-Max (kW) | 2.7 (0.75-3.75) | 3.2 (1.1-3.85) | 4.0 (1.1-5.4) | 6.0 (1.4-6.9) | 7.4 (2.0-9.06) | 8.0 (2.0-9.5) |
| Power Input Rated/Min-Max Cool (W) | 600 (110-1100) | 575 (110-1250) | 830 (190-1500) | 1290 (220-2100) | 1542 (400-2600) | 1844 (450-3100) |
| Power Input Rated/Min-Max Heat (kW) | 720 (150-1250) | 745 (150-1350 | 980 (190-1650) | 1460 (210-2300) | 1805 (400-3000) | 2050 (370-3200) |
| Min/Max Voltage | 198 / 264 | |||||
| Air Flow Volume L/s |
144 / 131 / 125 / 117 / 86 / 81 / 69 |
206 / 175 / 156 / 136 / 117 / 108 / 100 |
200 / 172 / 156 / 136 / 119 / 108 / 89 |
292 / 253 / 242 / 231 / 214 / 183 / 167 |
361 / 306 / 392 / 264 / 250 / 236 / 222 |
361 / 292 / 278 / 250 / 228 / 208 / 181 |
| Application Area (m2) | 10 - 16 | 12 - 18 | 16 - 24 | 23 - 34 | 27 - 42 | 27 - 42 |
| Set Temperature Range (C) | 16 ~ 30 | |||||
| Sound Pressure Level (dBA) |
39 / 36 / 32 / 32 / 28 / 23 / 22 |
42 / 37 / 36 / 32 / 28 / 24 / 20 |
44 / 38 / 36 / 34 / 31 / 28 / 23 |
46 / 41 / 39 / 37 / 35 / 32 / 27 |
49 / 43 / 41 / 38 / 35 / 33 / 29 |
50 / 44 / 43 / 40 / 36 / 34 / 32 |
| Sound Power Level (dBA) |
55 / 52 / 50 / 48 / 44 / 39 / 38 |
57 / 52 / 51 / 47 / 43 / 39 / 35 |
59 / 53 / 51 / 49 / 46 / 43 / 38 |
62 / 57 / 55 / 53 / 51 / 48 / 43 |
62 / 55 / 53 / 50 / 47 / 45 / 41 |
66 / 60 / 59 / 56 / 52 / 50 / 48 |
| Pipe Sizes Liquid/Gas (mm) | 6.35 + 9.52 | 6.35 + 12.7 | 6.35 + 15.88 | |||
| Unit Dimensions (HxWxD) (mm) | 260 x 704 x 185 | 293 x 825 x 196 | 311 x 982 x 221 | 333 x 1075 x 246 | ||
| Package Dimensions (HxWxD) (mm) | 332 x 753 x 258 | 365 x 875 x 268 | 385 x 1044 x 297 | 414 x 1133 x 333 | ||
| Net Weight (kg) | 7.5 | 9.5 | 13 | 16 | ||
| Gross Weight (kg) | 9 | 11.5 | 15.5 | 19 | ||
| SKU | TWSM22HVAG |
| Brand | TECO |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.258m |
| Shipping Height | 0.332m |
| Shipping Length | 0.753m |
| Shipping Cubic | 0.064498968m3 |
| Unit Of Measure | ea |
TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
