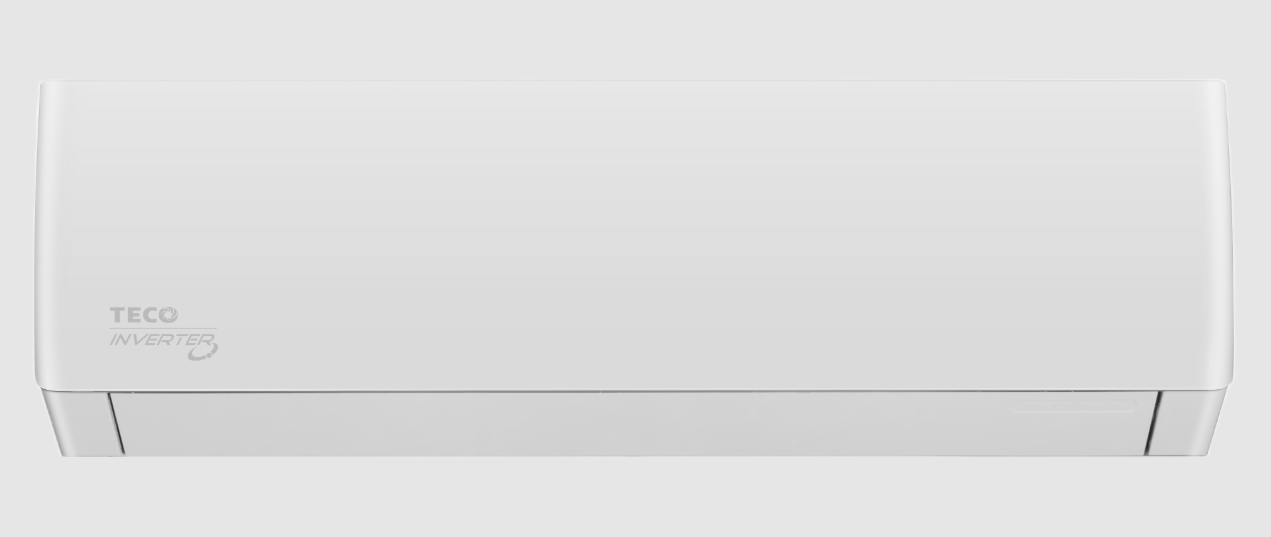

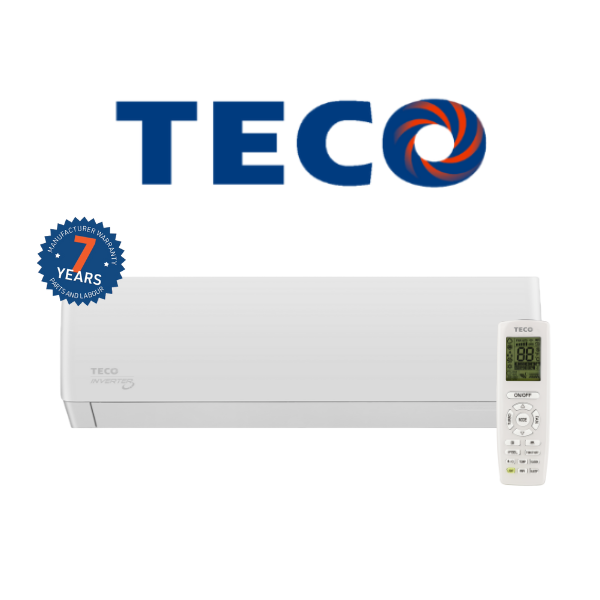

TECO TWSM50HVAG 5.0kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)
TECO Indoor Multi High Wall Split Unit
$460.00 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
TECO TWSM50HVAG 5.0kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi)
The TWSM50HVAG 5.0kW High Wall Mounted Indoor Unit is a powerful yet compact climate control solution, ideal for medium-sized rooms such as larger bedrooms, small living areas, and home offices. With Plasmacluster Ion Sterilisation, it actively purifies indoor air, reducing airborne pollutants and allergens for a healthier environment. Designed for energy efficiency, it integrates inverter technology to provide precise temperature regulation while minimising power consumption. The Goldfin-coated heat exchanger ensures durability and long-term reliability, even in humid conditions. With WiFi connectivity and an optional wall-mounted controller, users can enjoy seamless operation, smart home integration, and enhanced comfort.
Key Features:
- 7 Years Warranty (Domestic Application)
- 2 Years Warranty (Commercial Application)
- Built-in Wi-Fi
- Dehumidify Mode
- I Feel Function
- Ion Generator
- Dry Anti-Mildew Design
- Turbo Fan Mode
- Pre-Heat Function
- Gold Fin Coating - Evaporator Coil
(TWSM50HVAG)
| Indoor Unit | TWSM22HVAG | TWSM26HVAG | TWSM35HVAG | TWSM50HVAG | TWSM64HVAG | TWSM71HVAG |
|---|---|---|---|---|---|---|
| Power Supply (V - Hz - Phase) | 220-240 / 50 / 1 | |||||
| Cool Capacity Rated/Min-Max (kW) | 2.25 (0.35-3.05) | 2.65 (0.45-3.7 | 3.52 (0.55-4.4) | 5.2 (1.0-6.5) | 6.3 (1.6-8.6) | 7.1 (1.1-8.8) |
| Heat Capacity Rated/Min-Max (kW) | 2.7 (0.75-3.75) | 3.2 (1.1-3.85) | 4.0 (1.1-5.4) | 6.0 (1.4-6.9) | 7.4 (2.0-9.06) | 8.0 (2.0-9.5) |
| Power Input Rated/Min-Max Cool (W) | 600 (110-1100) | 575 (110-1250) | 830 (190-1500) | 1290 (220-2100) | 1542 (400-2600) | 1844 (450-3100) |
| Power Input Rated/Min-Max Heat (kW) | 720 (150-1250) | 745 (150-1350 | 980 (190-1650) | 1460 (210-2300) | 1805 (400-3000) | 2050 (370-3200) |
| Min/Max Voltage | 198 / 264 | |||||
| Air Flow Volume L/s |
144 / 131 / 125 / 117 / 86 / 81 / 69 |
206 / 175 / 156 / 136 / 117 / 108 / 100 |
200 / 172 / 156 / 136 / 119 / 108 / 89 |
292 / 253 / 242 / 231 / 214 / 183 / 167 |
361 / 306 / 392 / 264 / 250 / 236 / 222 |
361 / 292 / 278 / 250 / 228 / 208 / 181 |
| Application Area (m2) | 10 - 16 | 12 - 18 | 16 - 24 | 23 - 34 | 27 - 42 | 27 - 42 |
| Set Temperature Range (C) | 16 ~ 30 | |||||
| Sound Pressure Level (dBA) |
39 / 36 / 32 / 32 / 28 / 23 / 22 |
42 / 37 / 36 / 32 / 28 / 24 / 20 |
44 / 38 / 36 / 34 / 31 / 28 / 23 |
46 / 41 / 39 / 37 / 35 / 32 / 27 |
49 / 43 / 41 / 38 / 35 / 33 / 29 |
50 / 44 / 43 / 40 / 36 / 34 / 32 |
| Sound Power Level (dBA) |
55 / 52 / 50 / 48 / 44 / 39 / 38 |
57 / 52 / 51 / 47 / 43 / 39 / 35 |
59 / 53 / 51 / 49 / 46 / 43 / 38 |
62 / 57 / 55 / 53 / 51 / 48 / 43 |
62 / 55 / 53 / 50 / 47 / 45 / 41 |
66 / 60 / 59 / 56 / 52 / 50 / 48 |
| Pipe Sizes Liquid/Gas (mm) | 6.35 + 9.52 | 6.35 + 12.7 | 6.35 + 15.88 | |||
| Unit Dimensions (HxWxD) (mm) | 260 x 704 x 185 | 293 x 825 x 196 | 311 x 982 x 221 | 333 x 1075 x 246 | ||
| Package Dimensions (HxWxD) (mm) | 332 x 753 x 258 | 365 x 875 x 268 | 385 x 1044 x 297 | 414 x 1133 x 333 | ||
| Net Weight (kg) | 7.5 | 9.5 | 13 | 16 | ||
| Gross Weight (kg) | 9 | 11.5 | 15.5 | 19 | ||
| SKU | TWSM50HVAG |
| Brand | TECO |
| Shipping Weight | 15.5000kg |
| Shipping Width | 0.297m |
| Shipping Height | 0.385m |
| Shipping Length | 1.044m |
| Shipping Cubic | 0.119376180m3 |
| Unit Of Measure | ea |
TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
