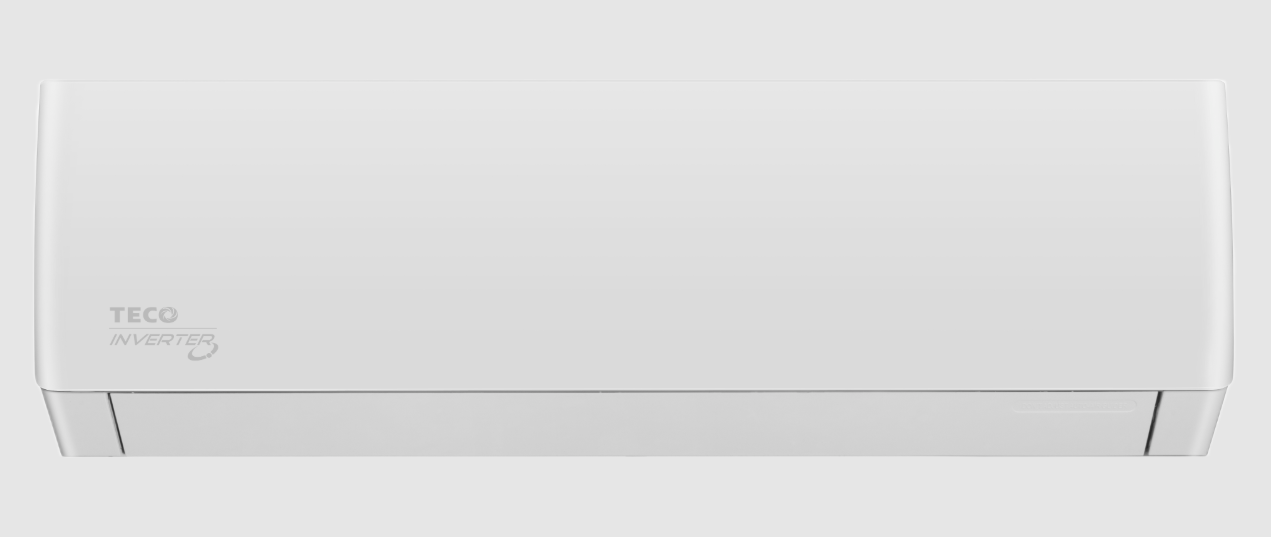

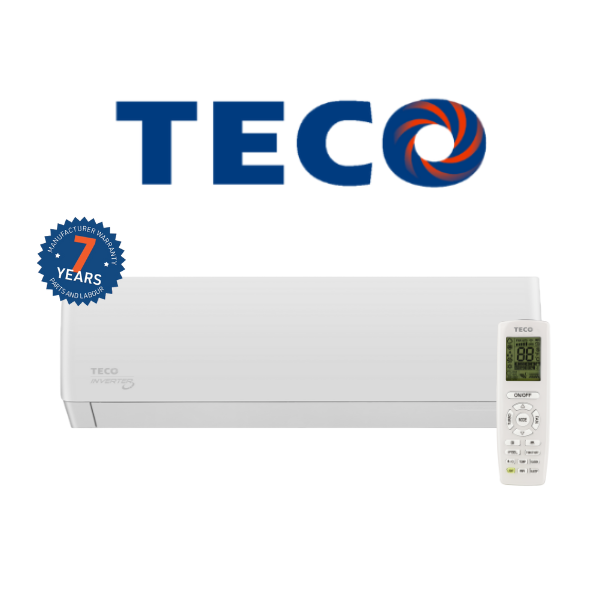

TECO TWSM71HVAG 7.1kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)
TECO Indoor Multi High Wall Split Unit
$569.09 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
TECO TWSM71HVAG 7.1kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi)
The TWSM71HVAG 7.1kW High Wall Mounted Indoor Unit is engineered for large residential and commercial spaces, offering powerful cooling and heating performance with energy-efficient operation. Designed to maintain a comfortable indoor climate in open-plan areas, large bedrooms, and office spaces, this unit integrates Plasmacluster Ion Sterilisation to actively purify air and enhance indoor air quality. Advanced inverter technology ensures stable and precise temperature control while reducing energy consumption. The Goldfin-coated heat exchanger provides superior durability and corrosion resistance, making it ideal for humid or coastal environments. With WiFi connectivity and an optional wall-mounted controller, this system offers convenient control, smart home integration, and reliable year-round comfort.
Key Features:
- 7 Years Warranty (Domestic Application)
- 2 Years Warranty (Commercial Application)
- Built-in Wi-Fi
- Dehumidify Mode
- I Feel Function
- Ion Generator
- Dry Anti-Mildew Design
- Turbo Fan Mode
- Pre-Heat Function
- Gold Fin Coating - Evaporator Coil
(TWSM71HVAG)
| Indoor Unit | TWSM22HVAG | TWSM26HVAG | TWSM35HVAG | TWSM50HVAG | TWSM64HVAG | TWSM71HVAG |
|---|---|---|---|---|---|---|
| Power Supply (V - Hz - Phase) | 220-240 / 50 / 1 | |||||
| Cool Capacity Rated/Min-Max (kW) | 2.25 (0.35-3.05) | 2.65 (0.45-3.7 | 3.52 (0.55-4.4) | 5.2 (1.0-6.5) | 6.3 (1.6-8.6) | 7.1 (1.1-8.8) |
| Heat Capacity Rated/Min-Max (kW) | 2.7 (0.75-3.75) | 3.2 (1.1-3.85) | 4.0 (1.1-5.4) | 6.0 (1.4-6.9) | 7.4 (2.0-9.06) | 8.0 (2.0-9.5) |
| Power Input Rated/Min-Max Cool (W) | 600 (110-1100) | 575 (110-1250) | 830 (190-1500) | 1290 (220-2100) | 1542 (400-2600) | 1844 (450-3100) |
| Power Input Rated/Min-Max Heat (kW) | 720 (150-1250) | 745 (150-1350 | 980 (190-1650) | 1460 (210-2300) | 1805 (400-3000) | 2050 (370-3200) |
| Min/Max Voltage | 198 / 264 | |||||
| Air Flow Volume L/s |
144 / 131 / 125 / 117 / 86 / 81 / 69 |
206 / 175 / 156 / 136 / 117 / 108 / 100 |
200 / 172 / 156 / 136 / 119 / 108 / 89 |
292 / 253 / 242 / 231 / 214 / 183 / 167 |
361 / 306 / 392 / 264 / 250 / 236 / 222 |
361 / 292 / 278 / 250 / 228 / 208 / 181 |
| Application Area (m2) | 10 - 16 | 12 - 18 | 16 - 24 | 23 - 34 | 27 - 42 | 27 - 42 |
| Set Temperature Range (C) | 16 ~ 30 | |||||
| Sound Pressure Level (dBA) |
39 / 36 / 32 / 32 / 28 / 23 / 22 |
42 / 37 / 36 / 32 / 28 / 24 / 20 |
44 / 38 / 36 / 34 / 31 / 28 / 23 |
46 / 41 / 39 / 37 / 35 / 32 / 27 |
49 / 43 / 41 / 38 / 35 / 33 / 29 |
50 / 44 / 43 / 40 / 36 / 34 / 32 |
| Sound Power Level (dBA) |
55 / 52 / 50 / 48 / 44 / 39 / 38 |
57 / 52 / 51 / 47 / 43 / 39 / 35 |
59 / 53 / 51 / 49 / 46 / 43 / 38 |
62 / 57 / 55 / 53 / 51 / 48 / 43 |
62 / 55 / 53 / 50 / 47 / 45 / 41 |
66 / 60 / 59 / 56 / 52 / 50 / 48 |
| Pipe Sizes Liquid/Gas (mm) | 6.35 + 9.52 | 6.35 + 12.7 | 6.35 + 15.88 | |||
| Unit Dimensions (HxWxD) (mm) | 260 x 704 x 185 | 293 x 825 x 196 | 311 x 982 x 221 | 333 x 1075 x 246 | ||
| Package Dimensions (HxWxD) (mm) | 332 x 753 x 258 | 365 x 875 x 268 | 385 x 1044 x 297 | 414 x 1133 x 333 | ||
| Net Weight (kg) | 7.5 | 9.5 | 13 | 16 | ||
| Gross Weight (kg) | 9 | 11.5 | 15.5 | 19 | ||
| SKU | TWSM71HVAG |
| Brand | TECO |
| Shipping Weight | 19.0000kg |
| Shipping Width | 0.333m |
| Shipping Height | 0.414m |
| Shipping Length | 1.133m |
| Shipping Cubic | 0.156197646m3 |
| Unit Of Measure | ea |
TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
