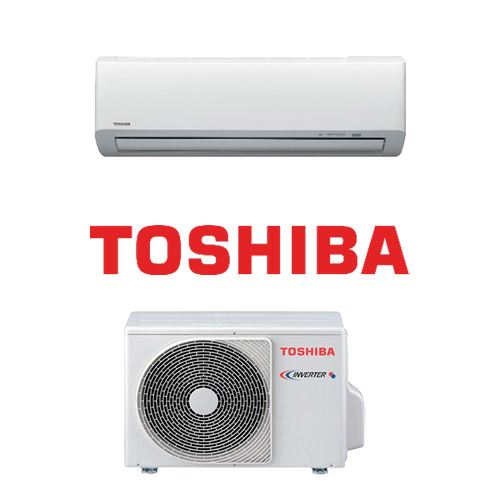

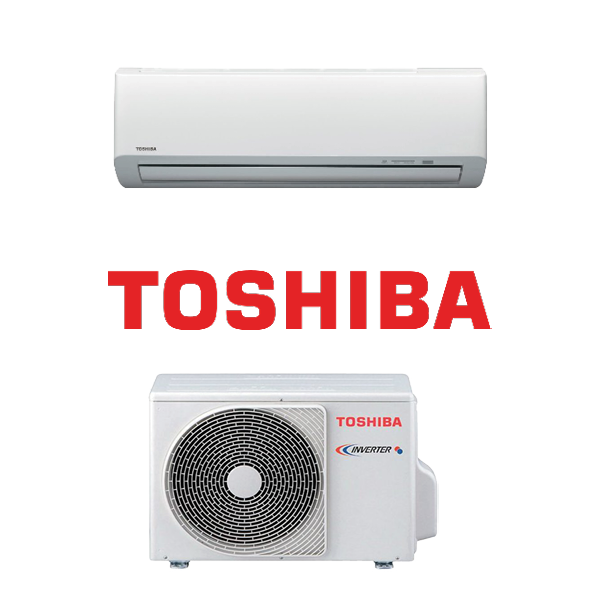

Toshiba RAS-24N3KV2-A 7.1kW Inverter Wall Mounted Split System

RAS-24N3KV2-A/RAS-24N3AV2-A 1PH Split Air Conditioner

$1,866.00 Incl GST
$1,696.36 Excl GST
In Stock


Toshiba RAS-24N3KV2-A 7.1kW Inverter - Includes Outdoor Unit RAS-24N3AV2-A

The Toshiba RAS-24N3KV2-A is an efficient 7.1kW inverter system. This Wall Mounted Split Unit has a cooling capacity ranging from 1.5kW up to 7.7kW and a heating capacity ranging from 1.6kW up to 9.0kW.

Wall-mounted split system air conditioners are an exceptional choice for those wanting a neat unit that blends unobtrusively with its surroundings. The same advanced technology that makes the indoor unit so compact also makes it powerful, yet extremely quiet, and kind on energy costs. The pleasing design of the high wall air conditioner also has functional appeal. The smooth surface of the flat panel models can be wiped clean and the flat panel easily removed for more thorough cleaning. Air purifying filters and innovative air flow systems ensure that fresh, conditioned air flows to every corner of the room.

(RAS-24N3KV2-A)

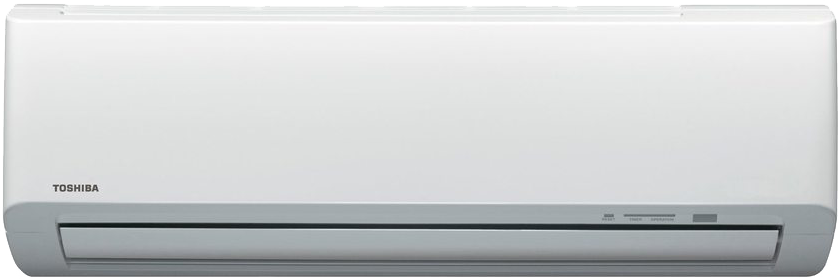

Indoor Unit RAS-24N3KV2-A

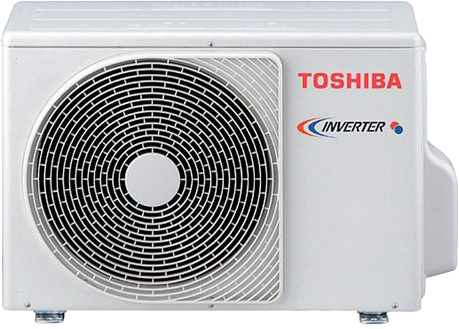

Outdoor Unit RAS-24N3AV2-A
Cooling Capacity - Rated kW 7.1
Cooling Capacity - Range kW 1.5 - 7.7
Power Input - Cooling (min - rated - max) kW 0.30 - 2.25 - 2.90
Operating Current - Cooling (min - rated - max) A 1.78 - 10.30 - 12.85
EER - Cooling (min - rated - max)   2.66 - 3.16 - 5.00
AEER - Cooling   3.12
Heating Capacity - Rated kW 8.1
Heating Capacity - Range kW 1.6 - 9.0
Power Input - Heating (min - rated - max) kW 0.30 - 2.45 - 3.30
Operating Current - Heating (min - rated - max) A 1.81 - 11.20 - 14.62
COP - Heating (min - rated - max)   2.73 - 3.31 - 5.33
ACOP - Heating   3.28
INDOOR UNIT Airflow Volume - Cooling (h-l) L/s 280 - 183
Moisture removal L/hr 3.8
Sound Pressure - Cooling (h/l) dB(A) 45 - 36
Dimensions (HxWxD) mm 320 x 1050 x 243
Net Weight kg 13
Sound Power - Cooling (h) dB(A)
SKU RAS-24N3KV2-A
Brand Toshiba
Shipping Weight 78.0000kg
