Fujitsu ARTG09LLLB 2.6 kW 1 Phase Bulkhead Ducted System

ARTG09LLLB/AOTG09LBCB Bulkhead Ducted Air Conditioner

$1,733.00 Incl GST
$1,575.45 Excl GST
In Stock


Fujitsu ARTG09LLLB 2.6 kW 1 Phase Bulkhead Ducted Unit - Includes Outdoor Unit AOTG09LBCB

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.

Features:

  • Automatic Air Flow Adjustment
  • Economy Mode
  • Control Port
  • Auto Restart
  • Weekly Timer
  • Fresh Air Intake

(SET-ARTG09LLLB)

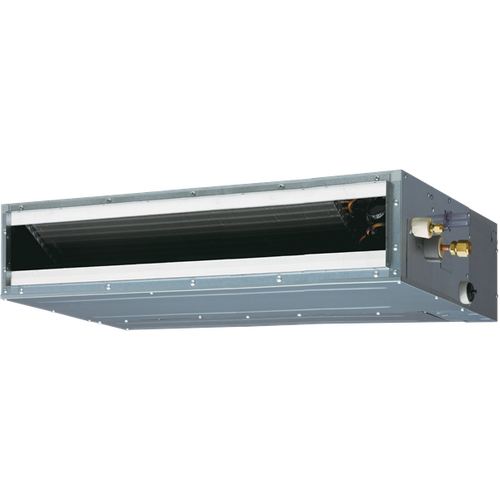

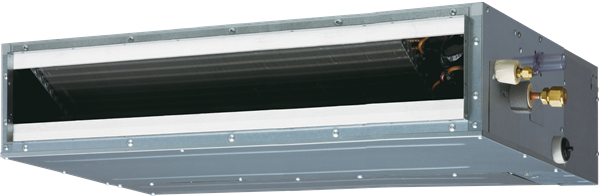

Indoor Unit ARTG09LLLB
Outdoor Unit AOTG09LBCB
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 2.6
Heat (kW) 3.5
Capacity Range
Cool (kW) 0.9 ~ 3.8
Heat (kW) 0.9 ~ 5.5
Power Input (Rated)
Cool (kW) 0.66
Heat (kW) 0.83
Max Power
Cool (kW) 1.5
Heat (kW) 1.9
Running Current
Cool (A) 3.10
Heat (A) 3.90
EER / COP 3.94 / 4.22
Energy Star Ratings
Cool 3.0 / 2.0 / 2.0
Heat 3.5 / 3.0 / 2.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.627 / 3.741 / 3.629
HSPF (Hot/Average/Cold) 5.022 / 4.557 / 4.123
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.070 / 4.828 / 5.000
HSPF (Hot/Average/Cold) 5.023 / 4.742 / 4.362
Dimensions (HxWxD)
Indoor (mm) 198 x 700 x 620
Outdoor (mm) 620 x 790 x 290
Weight
Indoor (kg) 18
Outdoor (kg) 39
Refrigerant Type R410a
Refrigerant Amount (kg) 1.20
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 90
Indoor Airflow Rate
Cool (l/s) 167
Heat (l/s) 167
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 28 / 25
Heat (dBA) 28 / 24
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 41
Heat (dBA) 46
Outdoor EPA Sound Power Level (H)
(dBA) 59
SKU SET-ARTG09LLLB
Brand Fujitsu
Shipping Weight 57.0000kg
