Fujitsu ARTG12LLLB 3.5 kW 1 Phase Bulkhead Ducted System

ARTG12LLLB/AOTG12LBCB Bulkhead Ducted Air Conditioner

$1,795.00 Incl GST
$1,631.82 Excl GST
In Stock


Fujitsu ARTG12LLLB 3.5 kW 1 Phase Bulkhead Ducted Unit - Includes Outdoor Unit AOTG12LBCB

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.

Features:

  • Automatic Air Flow Adjustment
  • Economy Mode
  • Control Port
  • Auto Restart
  • Weekly Timer
  • Fresh Air Intake

(SET-ARTG12LLLB)

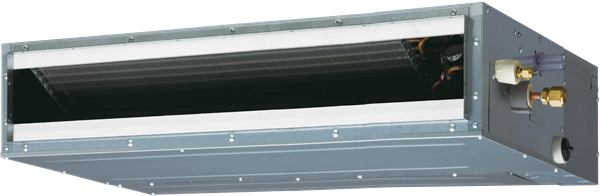

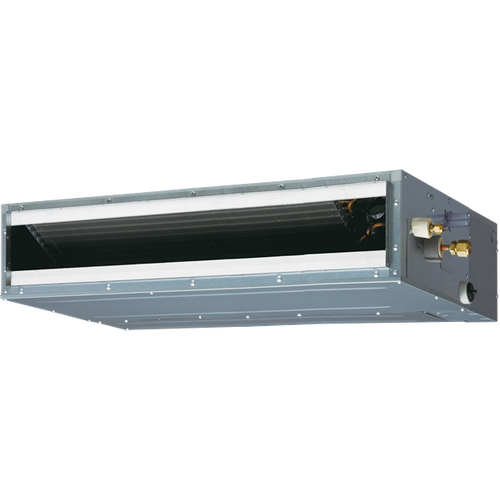

Indoor Unit ARTG12LLLB
Outdoor Unit AOTG12LBCB
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 3.5
Heat (kW) 4.5
Capacity Range
Cool (kW) 0.9 ~ 4.2
Heat (kW) 0.9 ~ 6.0
Power Input (Rated)
Cool (kW) 0.94
Heat (kW) 1.19
Max Power
Cool (kW) 1.5
Heat (kW) 2.1
Running Current
Cool (A) 4.30
Heat (A) 5.30
EER / COP 3.72 / 3.78
Energy Star Ratings
Cool 3.0 / 2.0 / 2.0
Heat 3.0 / 2.5 / 2.0
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.555 / 3.850 / 3.803
HSPF (Hot/Average/Cold) 4.830 / 4.258 / 3.700
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.950 / 4.812 / 5.028
HSPF (Hot/Average/Cold) 4.839 / 4.493 / 4.010
Dimensions (HxWxD)
Indoor (mm) 198 x 700 x 620
Outdoor (mm) 620 x 790 x 290
Weight
Indoor (kg) 18
Outdoor (kg) 39
Refrigerant Type R410a
Refrigerant Amount (kg) 1.20
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 20
Max Level Difference
(m) 15
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 9.52
Ambient Temperature
Cool (°C) -10 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 90
Indoor Airflow Rate
Cool (l/s) 181
Heat (l/s) 181
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 29 / 26
Heat (dBA) 29 / 24
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 49
Heat (dBA) 49
Outdoor EPA Sound Power Level (H)
(dBA) 62
SKU SET-ARTG12LLLB
Brand Fujitsu
Shipping Weight 57.0000kg
