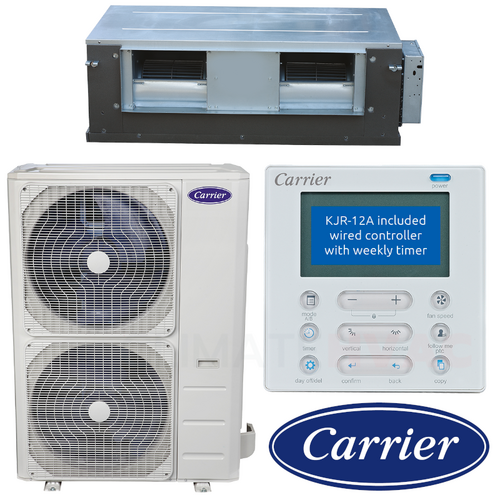

Carrier 42QSH140D8S-SET 14.0kW Ducted System

42QSH140D8S/38QSH140D8S Ducted Air Conditioner

$4,029.00 Incl GST
$3,662.73 Excl GST
In Stock

Carrier High Static 42QSH140D8S-SET 14.0kW Ducted System

High static ducted AC systems are ideal for residential applications where ducts will be run to numerous outlets. With ducted air conditioning there is an indoor unit, which is hidden in the roof and ducts positioned throughout the home to distribute the air. Drawing in the air is the outdoor unit that is located outside the home.

Key features

  • Concealed and flexible installation
  • A high static system allows for more ducts to be installed
  • Single phase which allows for greater flexibility and minimises installation cost
  • Reverse cycle system
  • DC inverter system, designed to use electricity efficiently and effectively
  • Quiet operation
  • Easy to install and maintain
  • 5 year warranty

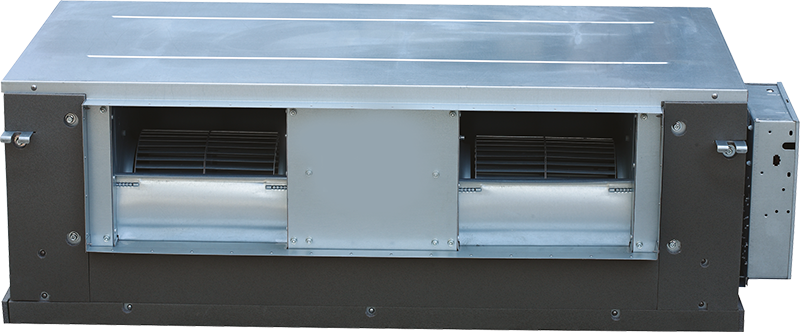

Indoor Unit 42QSH140D8S

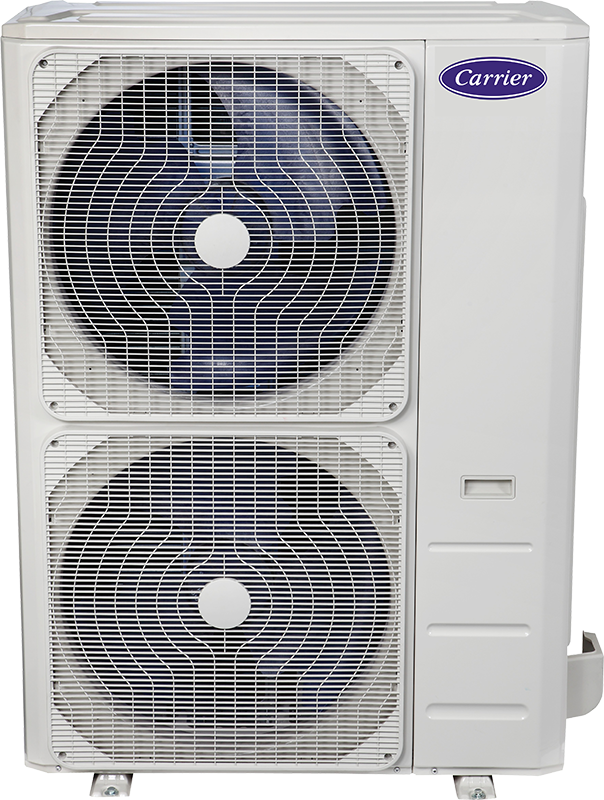

Outdoor Unit 38QSH140D8S
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 13.6
Heat (kW) 14.0
Dimensions (HxWxD)
Indoor (mm) 380 x 1200 x 625
Outdoor (mm) 1333 x 952 x 415
Indoor (kg) 56
Outdoor (kg) 101
Refrigerant Type R32
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 75
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Brand Carrier
Shipping Weight 157.0000kg
Shipping Cubic 0.811641640m3
