Carrier 42QSM090D8S-SET 9.0kW Ducted System

42QSM090D8S/38QSM090D8S Ducted Air Conditioner

$2,822.00 Incl GST
$2,565.45 Excl GST
In Stock

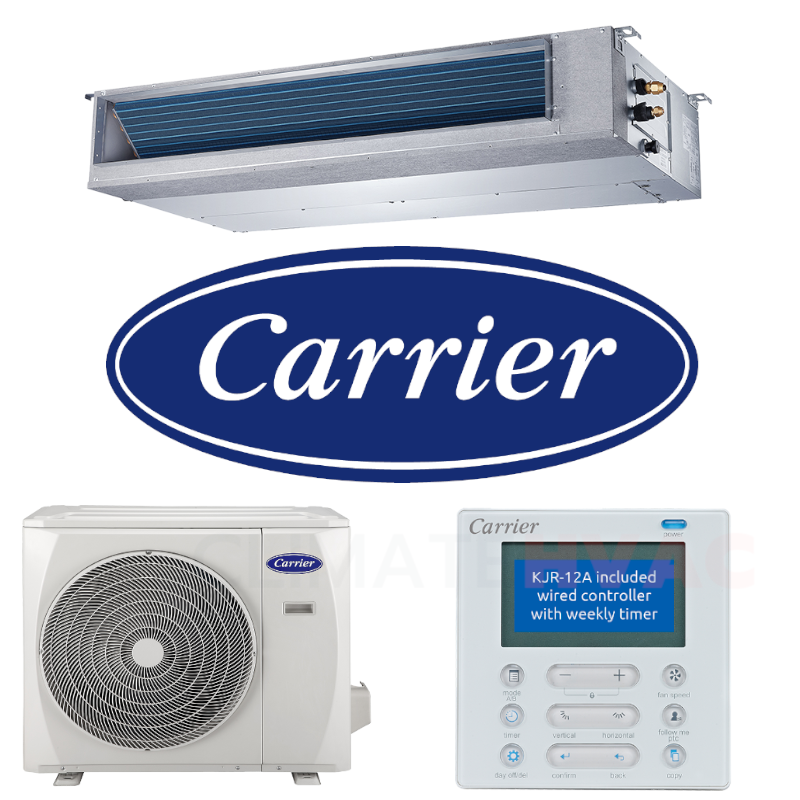

Carrier Slimline 42QSM090D8S-SET 9.0kW Ducted System

A slimline ducted unit will fit most light commercial ceiling spaces making it ideal for apartment, hotel, office and connected bulkhead application. These units have a compact design to allow for a perfectly concealed installation. Easy to use and maintain, these units provide both a quite and efficient solution to any small commercial space.

Key features

  • Perfect choice for applications with minimal ceiling space
  • Compact in design in order to fit into most ceiling spaces keeping install discreet
  • Very effective static pressure for low profile mid static ducted, resulting in better airflows and air distribution
  • Reverse cycle system
  • DC inverter system, designed to use electricity efficiently and effectively
  • Quiet operation
  • Easy to install and maintain
  • 5 year warranty

(42QSM090D8S-SET)

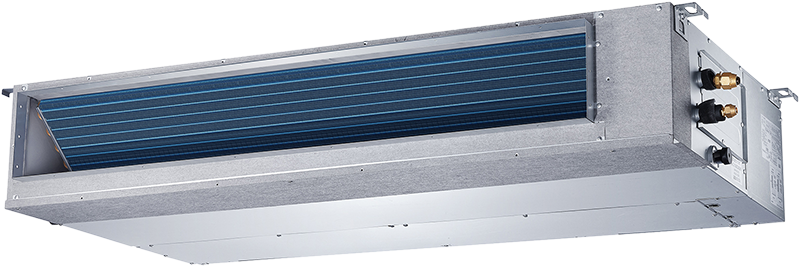

Indoor Unit 42QSM090D8S

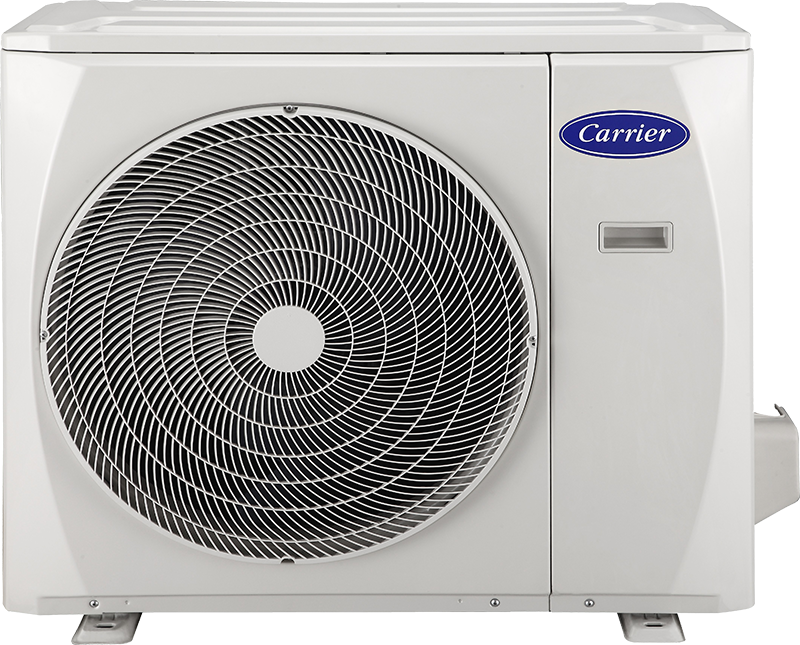

Outdoor Unit 38QSM090D8S
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 8.7
Heat (kW) 9.3
Dimensions (HxWxD)
Indoor (mm) 249 x 1360 x 774
Outdoor (mm) 810 x 946 x 410
Weight
Indoor (kg) 40
Outdoor (kg) 69
Refrigerant Type R32
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 75
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
SKU 42QSM090D8S-SET
Brand Carrier
Shipping Weight 109.0000kg
