Daikin Cora FTXV20A 2.0kW Wall Split Air Conditioning Wi-Fi System
FTXV20AVMA / RXV20AVMA Daikin Wall Split
$935.45 Excl GST

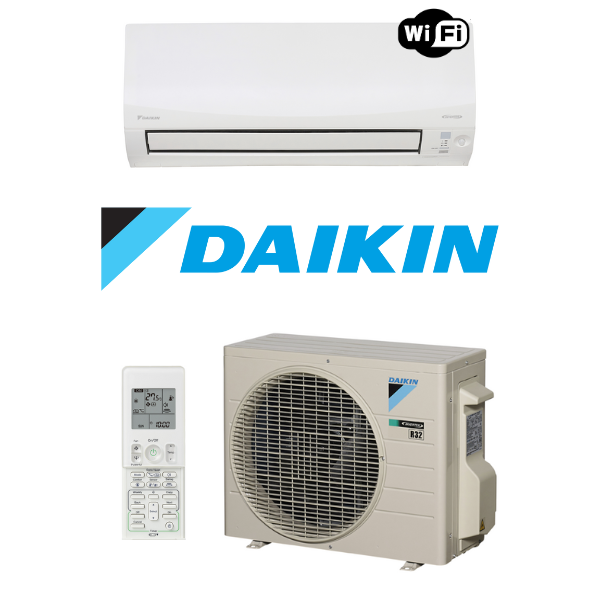

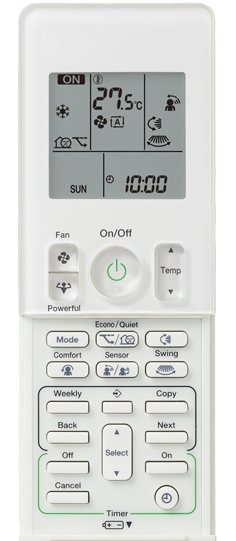

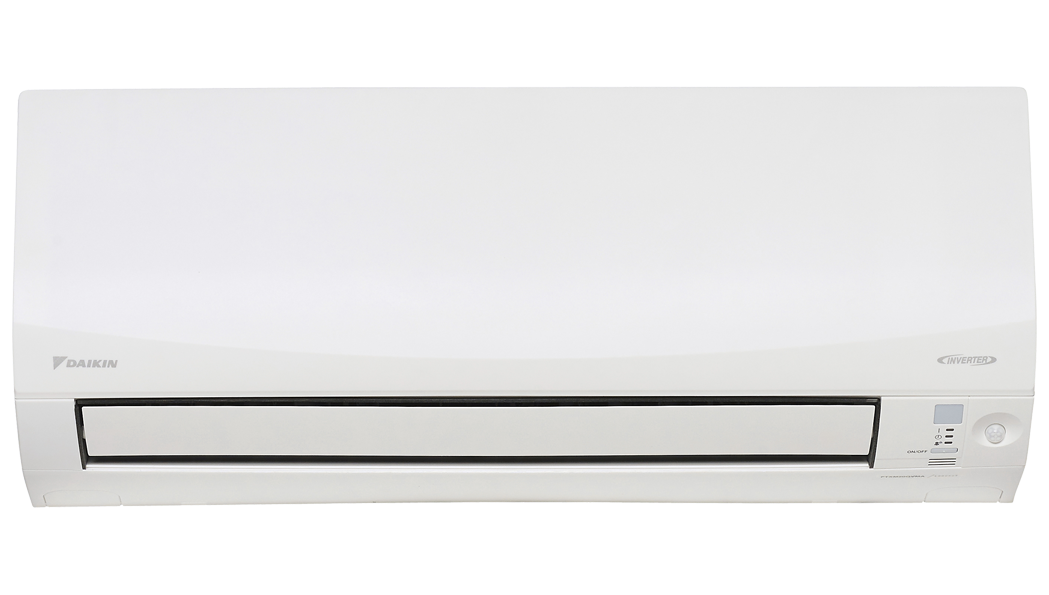

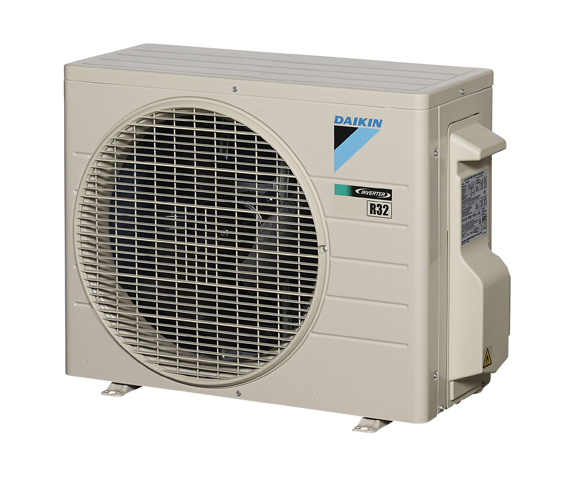

Daikin Cora Series FTXV20A 2.0kW Wall Split System (with Wi-Fi Control) - Includes Outdoor Unit RXV20AVMA and Wireless Controller
Delivered in understated confidence, the Daikin Cora series features whisper quiet operation, industry leading energy efficiency and superior comfort levels without compromising on style. Able to blend in harmoniously with modern bedrooms and living areas with its smooth contours and flat panel design in a high quality matte white finish, nothing compares to creating that ideal family sanctuary that makes you feel right at home all year round.
Key Features
It's the unique features of Daikin products that makes us the world leader.

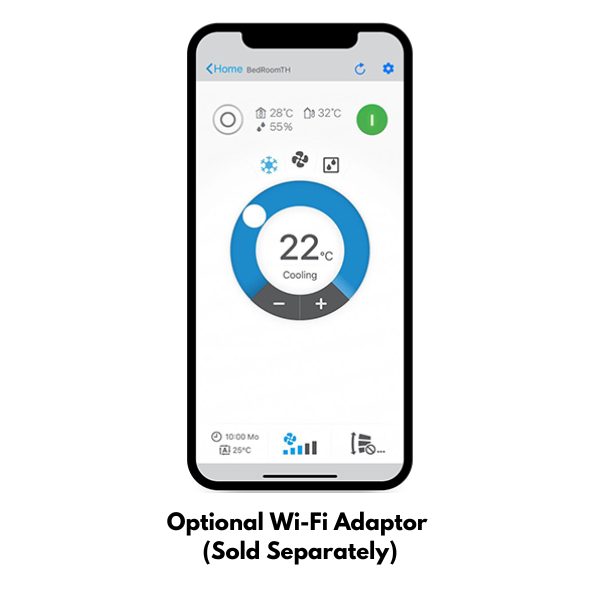

- Wi-Fi Control: Built-in Wi-Fi gives users convenient control through Daikin's Mobile Controller
- R32 Refrigerant: Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.
- Higher Outdoor Operation Limits
- Mould-Proof Operation: helps prevent mould growth on internal components
- Intelligent Eye Energy Savings: helps reduce energy use when the room is unoccupied for 20 minutes.
- Coanda Airflow for improved comfort.
- Enzyme Blue Deodorising Air Purification Filter
(FTXV20A)
| System | FTXV20A | FTXV25A | FTXV35A | FTXV46A | FTXV50A | FTXV60A | FTXV71A |
|---|---|---|---|---|---|---|---|
| Indoor Unit | FTXV20AVMA | FTXV25AVMA | FTXV35AVMA | FTXV46AVMA | FTXV50AVMA | FTXV60AVMA | FTXV71AVMA |
| Outdoor Unit | RXV20AVMA | RXV25AVMA | RXV35AVMA | RXV46AVMA | RXV50AVMA | RXV60AVMA | RXV71AVMA |
| Rated Cooling Capacity (kW) | 2.0 | 2.5 | 3.5 | 4.6 | 5.0 | 6.0 | 7.1 |
| Rated Heating Capacity (kW) | 2.7 | 3.2 | 3.7 | 4.7 | 6.0 | 7.2 | 8.0 |
| Indoor Airflow Rate (Cool/Heat) (I/s) | 158 / 175 | 183 / 185 | 190 / 202 | 200 / 207 | 273 / 310 | 313 / 362 | 330 / 362 |
| Indoor Fan Speeds | 5 Steps, Quiet and Automatic | ||||||
| ZERL Star Rating (Hot/Avg/Cold) Cool | 5.5 / 5 / 5 | 6 / 5.5 / 6 | 5.5 / 4.5 / 5 | 4 / 3.5 / 4 | 5 / 4.5 / 5 | 4 / 4 / 4 | 3.5 / 3 / 3.5 |
| ZERL Star Rating (Hot/Avg/Cold) Heat | 4 / 3.5 / 3 | 3 / 2.5 / 2.5 | 3.5 / 3 / 2.5 | 3 / 2.5 / 2 | |||
| Front Panel Colour | White | ||||||
| Power Supply | 1 Phase, 220-240V, 50Hz | ||||||
| Power Input Rated Cool/Heat (kW) | 0.4 / 0.51 | 0.49 / 0.66 | 0.81 / 0.87 | 1.14 / 1.15 | 1.14 / 1.29 | 1.52 / 1.63 | 2.05 / 1.94 |
| E.E.R / C.O.P | 5.0 / 5.29 | 5.15 / 4.85 | 4.32 / 4.25 | 4.04 / 4.09 | 4.39 / 4.65 | 3.95 / 4.42 | 3.46 / 4.12 |
| TCSPF (Residential) (Hot/Avg/Cold) | 7.43/6.67/6.87 | 7.96/7.28/7.53 | 7.05/6.47/6.88 | 5.72/5.41/5.62 | 6.94/6.47/6.88 | 5.96/5.64/6.0 | 5.37/4.95/5.22 |
| HSPF (Residential) (Hot/Avg/Cold) | 5.89/5.44/4.99 | 5.87/5.32/4.86 | 5.92/5.12/4.54 | 4.95/4.47/4.06 | 5.12/4.74/4.26 | 5.0/4.57/4.02 | 4.92/4.43/3.91 |
| A.E.E.R / A.C.O.P | 4.94 / 5.25 | 5.1 / 4.81 | 4.3 / 4.23 | 4.02 / 4.07 | 4.37 / 4.63 | 3.94 / 4.4 | 3.44 / 4.09 |
| Indoor Unit Dimensions HxWxD (mm) | 285x770x223 | 295x990x263 | |||||
| Outdoor Unit Dimension HxWxD (mm) | 595x845x300 | 695x930x350 | |||||
| Indoor Unit Weight (kg) | 9 | 13 | |||||
| Outdoor Unit Weight (kg) | 36 | 50 | 52 | 56 | |||
| Compressor Type | Hermatically Sealed Swing Type | ||||||
| Refrigerant Type | R32 | ||||||
| Max Pipe Length (m) | 20 | 30 | |||||
| Max Level Difference (m) | 15 | 20 | |||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.4 / 9.5 | 6.4 / 12.7 | |||||
| Outdoor Operating Range (Cool/Heat) | -10 to 50 / -15 to 18 | ||||||
| Indoor Sound Level (H/SL) Cool (dBA) | 38 / 19 | 42 / 19 | 44 / 26 | 45 / 28 | 48 / 29 | 49 / 30 | |
| Indoor Sound Level (H/SL) Heat (dBA) | 39 / 20 | 40 / 20 | 42 / 20 | 43 / 26 | 45 / 28 | 48 / 29 | 49 / 30 |
| Outdoor Sound Level (H/SL) Cool (dBA) | 48 / 44 | 49 / 45 | 47 / 44 | 49 / 45 | 53 / 49 | ||
| Outdoor Sound Level (H/SL) Heat (dBA) | 50 / 45 | 48 / 45 | 51 / 45 | 52 / 45 | 54 / 49 | ||
| Outdoor Sound Power Level Cool/Heat (dBA) | 60 / 62 | 61 / 62 | 59 / 60 | 59 / 62 | 61 / 64 | 65 / 66 | |
| SKU | FTXV20A |
| Brand | Daikin |
| Shipping Weight | 45.0000kg |
| Shipping Width | 0.365m |
| Shipping Height | 0.550m |
| Shipping Length | 0.770m |
| Shipping Cubic | 0.199769000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
