Rinnai DINLR18B1SA-SET 17.0kW Ducted 1 Phase Air Conditioning System
DINLR18B1SA / DONSR18B1TA Rinnai Ducted System
$4,718.18 Excl GST

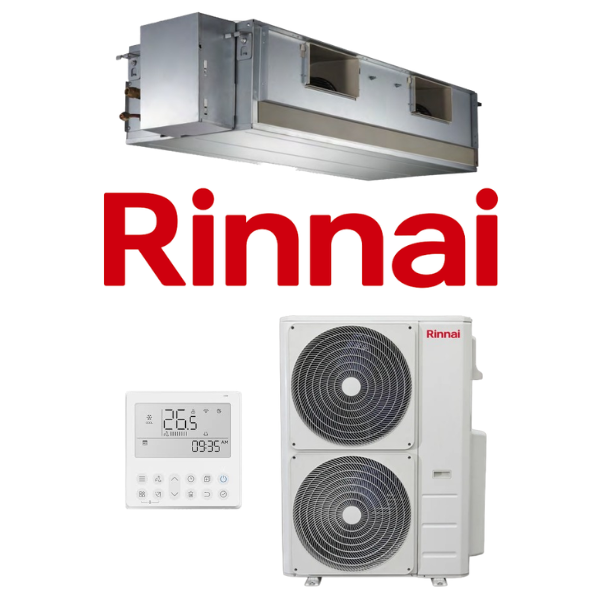

Rinnai DINLR18B1SA-SET 17.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit DONSR18B1TA
The smarter way to comfort every room. Engineered for comfort and efficiency, this 18.0kW (Twin Fan outdoor unit) ducted air conditioning system delivers powerful whole-home climate control with advanced inverter performance, flexible zoning, smart connectivity, and dependable whisper-quiet operation.
Key Features:
- Flexible 8 Zone Climate Control - Enjoy personalised comfort with independent control of up to eight zones, allowing you to switch each zone on or off and adjust temperatures directly from the main controller.
- Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
- Flexible Installation Made Simple - The innovative splittable design allows the unit to be transported in separate sections and assembled on-site, making installation faster and easier in homes with limited roof space. (Available in 15.0kW, 18.0kW, 20.0kW, and 24.0kW models)
- Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
- Eco-Friendly R32 Refrigerant
- Wi-Fi Control and Remote Schedules
- Humidity Control - Manage room humidity with Dry Mode for balanced comfort
- Quiet Operation
(DINLR18B1SA-SET)
| System | DINLR15B1SA-T-SET | DINLR18B1SA-SET | DINLR20Z1SA-SET | DINLR24Z1SA-SET |
|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 14.0 | 17.0 | 20.0 | 24.0 |
| Rated Heating Capacity (kW) | 17.0 | 18.0 | 20.0 | 26.0 |
| Power Supply (V / Ph / Hz) | 220-240 / 1 / 50 | 380-415 / 3 / 50 | ||
| AEER / ACOP | 3.56 / 4.04 | 3.31 / 3.92 | 3.3 / 3.8 | 3.5 / 3.7 |

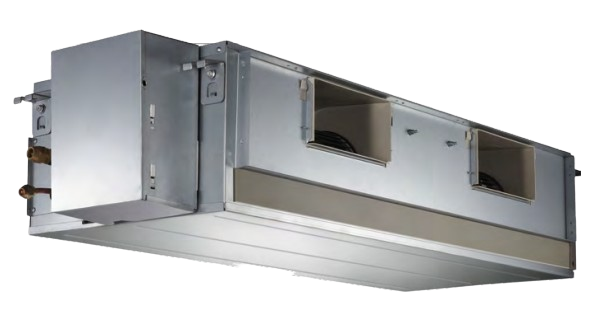

| Indoor Unit | DINLR15B1SA | DINLR18B1SA | DINLR20Z1SA | DINLR24Z1SA |
| Rated Input Power Cool/Heat (W) | 631 | 642 | 700 | 840 |
| Rated Input Current Cool/Heat (A) | 3.38 | 3.44 | 3.18 | 3.82 |
| Max Airflow (L/s) | 922 | 925 | 1333 | 1444 |
| Maximum External Static Pressure (Pa) | 200 | 280 | ||
| Sound Pressure Level (dBA) | 50 / 46.5 / 44 / 42 / 36 | 51 / 49 / 47 / 43 / 36 | 50 / 48 / 44 / 43 / 41 / 40 | 51 / 49 / 47 / 45 / 44 / 42 / 41 |
| Net Dimensions (HxWxD) (mm) | 380x1400x870 | 477x1300x910 | ||
| Shipping Dimensions (HxWxD) (mm) | 477x1650x1065 | 665x1580x1090 | ||
| Net/Gross Weight (kg) | 65.0 / 80.9 | 67.0 / 81.9 | 82 / 120 | |
| Supply Air Duct Connection HxW (mm) | 295x1152 | 350x1120 | ||
| Return Air Duct Connection HxW (mm) | 400x2 (Oval) | 393x1118 | ||
| Controller Type | Wired Programmable Controller with Wi-Fi Control | Wired Programmable Controller CNTRLDRCI86TW (Wi-Fi) | ||
| Operating Range Cool/Heat (C) | 16 to 32 / 0 to 30 | 15 - 32 | ||

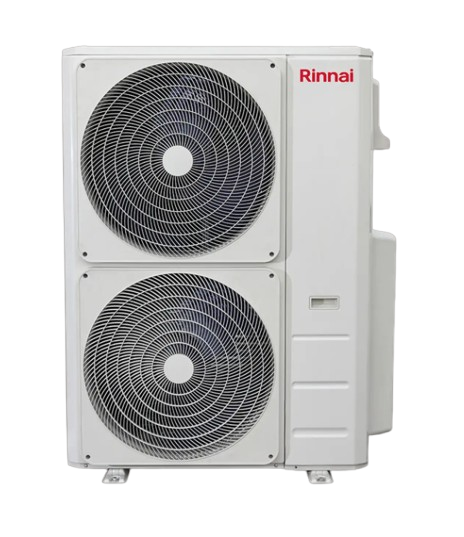

| Outdoor Unit | DONSR15B1TA | DONSR18B1TA | DONSR20Z3TA | DONSR24Z3TA |
| Sound Pressure Level @1m (dBA) | 65 | 63 | 58 | 59 |
| Sound Power Level (dBA) | 70 | 72 | 78 | |
| Net Dimensions (HxWxD) (mm) | 1333x952x415 | 1558x1120x528 | ||
| Shipping Dimensions (HxWxD) (mm) | 1500x1095x495 | 1720x1305x565 | ||
| Net/Gross Weight (kg) | 93 / 109.6 | 94 / 110.1 | 144 / 160 | 145 / 161 |
| Refrigerant Type/Charged Volume (kg) | R32 / 3.6 | R32 / 3.8 | R410A / 7.7 | |
| Pre-Charged Piping Length (m) | 20 | |||
| Liquid/Gas Piping Connections (mm) | 9.5 / 15.9 | 9.5 / 19.0 | 12.7 / 19.0 | 12.7 / 22.2 |
| Maximum Pipe Length (m) | 75 | 50 | ||
| Maximum Vertical Separation (m) | 30 | 20 | ||
| Operating Range Cool/Heat (C) | -15 to 50 / -20 to 24 | -5 to 48 / -20 to 24 | ||
| SKU | DINLR18B1SA-SET |
| Brand | Rinnai |
| Shipping Weight | 192.0000kg |
| Shipping Cubic | 1.651246000m3 |
| Unit Of Measure | ea |
