Best Prices Daikin FDYQN250LB-LY 23.5kW Home Air Conditioner Low Cost Installation Brisbane Sydney

Daikin FDYQN250LB-LY 23.5kW Ducted R410A 3 Phase Air Conditioning System

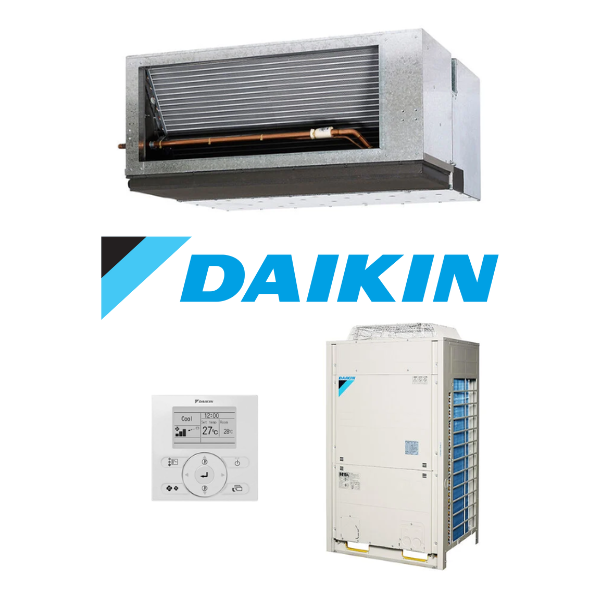

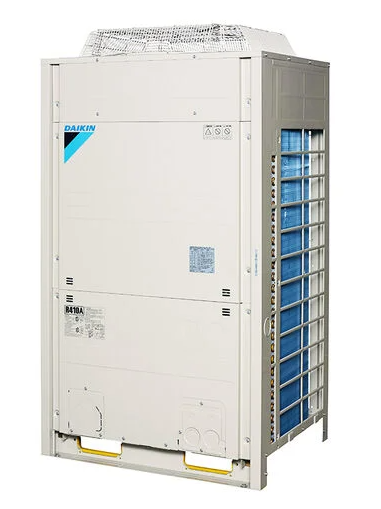

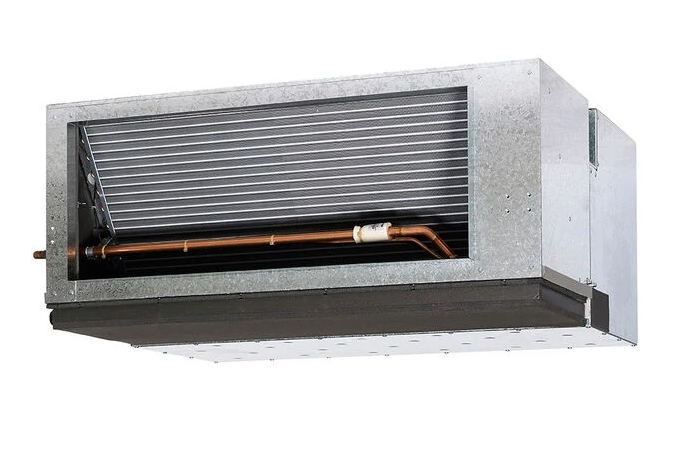

Daikin FDYQN250LB-LY 23.5kW Ducted Standard Inverter Three Phase System - Includes Wall Controller and Outdoor Unit RZQ250LY1

Crafted to offer a space-efficient and high-performance design, Daikins Inverter series is an optimal choice for seamlessly integrating into the confined roof spaces of contemporary residences. Moreover, these models, ranging from 5.0kW to 15.5kW, now come equipped with R22 retrofit capability. This advancement ensures environmental compliance while enhancing the adaptability of the units.

Key Features:

Optimized for energy efficiency.

Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
Night Quite Mode.

Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
Demand Respone Enabled Ducted (DRED).

A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
Australian Made.

The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.

(FDYQN250LB-LY)

System	FDYAN71A-C2Y	FDYAN85A-C2Y	FDYAN100A-C2Y	FDYAN125A-C2Y	FDYAN140A-C2Y	FDYQN160A-C2Y	FDYQN180LC-M2Y	FDYQN200LC-MY	FDYQN250LB-LY
Indoor Unit	FDYAN71AV1	FDYAN85AV1	FDYAN100AV1	FDYAN125AV1	FDYAN140AV1	FDYAN160AV1	FDYQN180LCV1	FDYQN200LCV1	FDYQN250LBV1
Outdoor Unit	RZA71C2Y1	RZA85C2Y1	RZA100C2Y1	RZA125C2Y1	RZA140C2Y1	RZA160C2Y1	RZQ180M2Y1	RZQ200MY1	RZQ250LY1
Rated Cooling Capacity (kW)	7.1	8.5	10.0	12.5	14.0	15.5	18.0	19.5	23.5
Rated Heating Capacity (kW)	7.5	10.0	12.5	15.0	16.5	18.0	20.0	22.4	26.8
Power Supply	3 Phase, 380-415V, 50Hz
Power Input (Rated) Cool/Heat (kW)	2.20 / 1.93	2.53 / 2.80	3.10 / 3.35	3.94 / 4.00	4.30 / 4.50	4.95 / 4.90	5.82 / 6.11	6.11 / 6.85	7.85 / 8.47
EER / COP	3.23 / 3.89	3.36 / 3.57	3.23 / 3.73	3.17 / 3.75	3.26 / 3.67	3.13 / 3.67	3.09 / 3.27	3.19 / 3.27	2.99 / 3.16
TCSPF (Residential) Hot/Avg/Cold	4.44 / 3.91 / 3.98	4.28 / 3.84 / 3.89	4.28 / 3.87 / 3.96	4.25 / 3.90 / 4.01	4.19 / 3.86 / 3.96	4.05 / 3.76 / 3.86	3.61 / 3.15 / 3.12	4.05 / 3.76 / 3.86	3.73 / 3.41 / 3.46
HSPF (Residential) Hot/Avg/Cold	4.17 / 3.90 / 3.55	3.97 / 3.67 / 3.32	3.85 / 3.48 / 3.04	4.31 / 3.31 / 2.77	3.90 / 3.51 / 3.05	3.87 / 3.53 / 3.12	3.23 / 2.95 / 2.61	3.87 / 3.53 / 3.12	3.41 / 3.08 / 2.72
Airflow Rate (Nominal/Max) (L/s)	425 / 566	580 / 600	680 / 800	755 / 840	900 / 1000	950 / 1120	1160 / 1200	1400 / 1600
Indoor Sound Level @1.5m Cool/Heat (dBA)	37.3 / 40.5	42.0 / 42.4	43.5 / 45.8	44.2 / 45.5	46.6 / 47.9	47.9 / 50.7	45.0 / 45.0	46.0 / 46.0	49.5 / 49.5
Piping Length (m)	50
Indoor Fan Speeds	H / M / L
Indoor Unit Dimensions (H x W x D) (mm)	300 x 1210 x 900			360 x 1520 x 935			470 x 1200 x 997	470 x 1400 x 997	500 x 1430 x 970
Outdoor Unit Dimension (H x W x D) (mm)	990 x 940 x 320				1430 x 940 x 320				1680 x 930 x 765
Indoor Unit Weight (kg)	40		45	55		56	70	85	92
Outdoor Unit Weight (kg)	69			78	93	99	138		193
Compressor Type	Hermetically Sealed Swing Type						Hermetically Sealed Scroll Type
Refrigerant	R32						R410A
Pipe Sizes (Liquid/Gas) (mm)	9.52 / 15.88						6.35 / 19.1		6.35 / 22.2
Supply Air Opening (mm) HxW	185 x 852			245 x 1152			350 x 918	350 x 1118	376 x 938
Return Air Opening (mm)	1 x 400 (Oval)		2 x 350 (Oval)	2 x 400 (Oval)			393 x 918 (Flange)	393 x 1118 (Flange)	350 x 1118 (Flange)
Outdoor Operating Range Cool/Heat (C)	-5 to 46 / -15 to 16						-5 to 43 / -20 to 16
EPA Sound Power Level (dBA)	67	70	71	72	73	75	72	74	79
Outdoor Sound Level @1m Cool/Heat (dBA)	48 / 50	51 / 54	52 / 54	53 / 56	54 / 56	56 / 58	57 / 58	58 / 59	57 / 58
