Daikin FDYA71 7.1kW Premium 1 Phase Inverter Ducted Unit

FDYA71AV1/RZAS71CV1 Ducted Unit Air Conditioner

$4,028.00 Incl GST
$3,661.82 Excl GST
Sold Out

This product has been superseded by Daikin FDYA71A-C2V

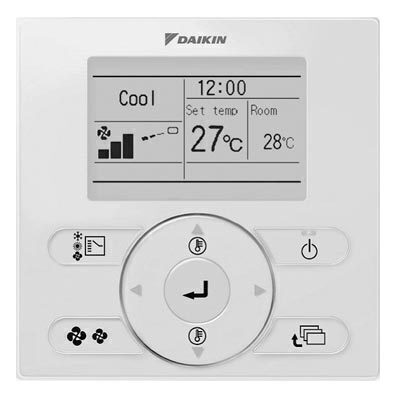

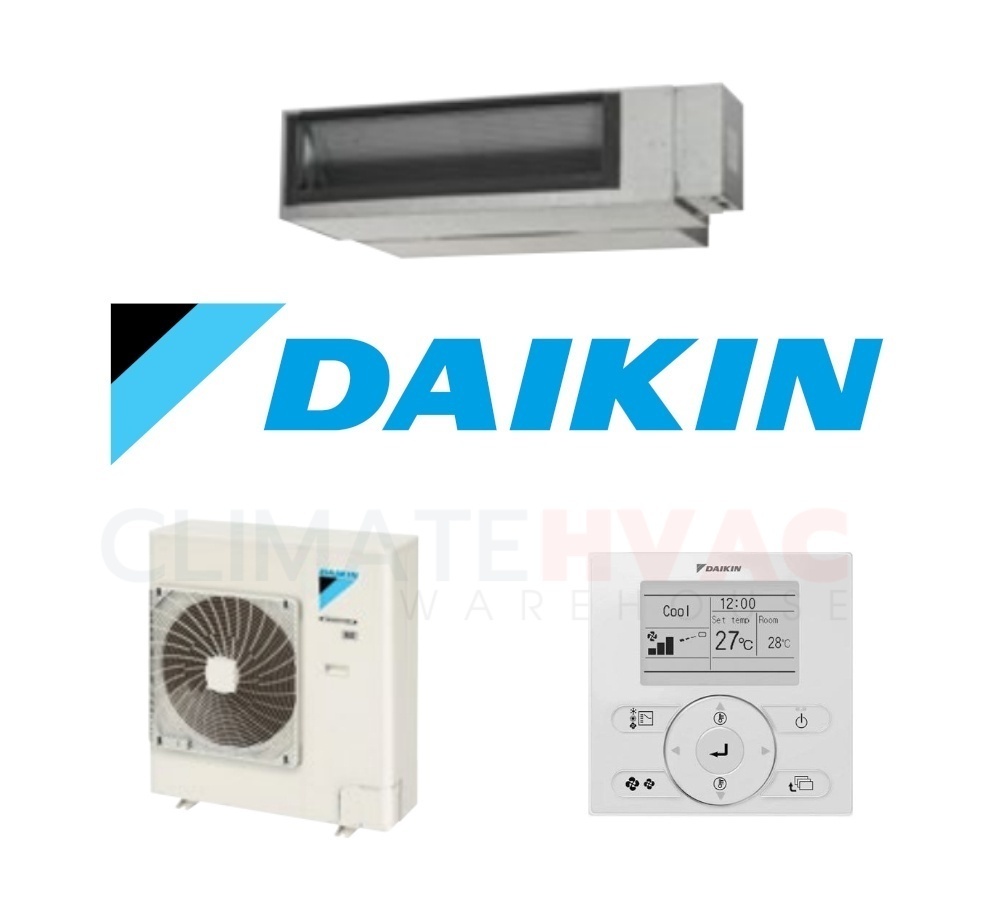

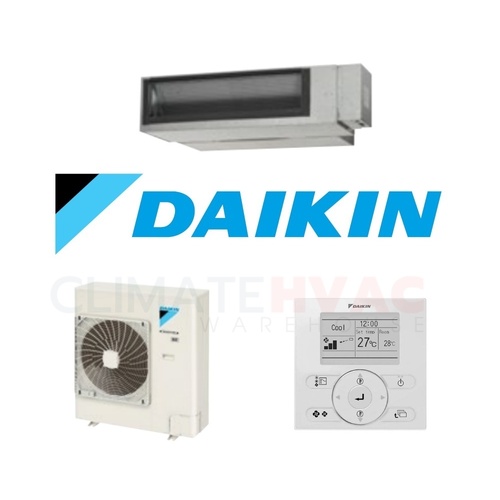

Daikin FDYA71 7.1kW 1 Phase Ducted Unit - Includes BRC1E63 Wired Controller & Outdoor Unit RZAS71CV1

Ducted Air Conditioner - Inverter Reverse Cycle System

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter series is the ultimate ducted solution.



  • Heating or cooling your entire home
  • Small to large houses
  • Retrofitting an old R22 ducted system

Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!



Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.


Indoor Unit FDYA71AV1

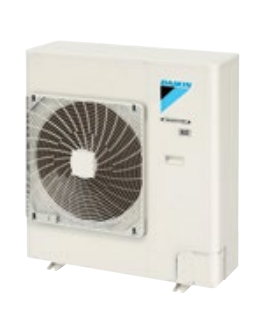

Outdoor Unit RZAS71CV1
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 7.1
Heat (kW) 7.5
Capacity Range
Cool (kW) 3.2 ~ 8.0
Heat (kW) 3.5 ~ 9.0
Power Input (Rated)
Cool (kW) 1.90
Heat (kW) 1.75
EER/COP 3.74 / 4.29
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.21 / 4.52 / 4.58
HSPF (Hot/Average/Cold) 3.87 / 3.80 / 3.51
Drain Size (mm) ID 25 / OD 32
Duct Sizes
Supply (mm) 185 x 852
Return (mm) 1 x 400 (Oval)
Dimensions (HxWxD)
Indoor (mm) 300 x 1210 x 900
Outdoor (mm) 990 x 940 x 320
Indoor (kg) 40
Outdoor (kg) 69
Refrigerant Type R32
Max Pipe Length (m) 75
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Connection Type Flare
Ambient Temperature
Cool (°C) -5 ~ 50
Heat (°C) -15 ~ 16
Indoor Airflow Rate
(l/s) 425 / 566
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 37.3
Heat (dBA) 40.5
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 48
Heat (dBA) 50
Outdoor EPA Sound Power Level (H)
(dBA) 67
Brand Daikin
Shipping Weight 109.0000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
