Daikin Premium FDYQ250LC-TY 24.0kW Ducted 3 Phase Air Conditioning System
FDYQ250LCV1 / RZYQ10TY1 Daikin Premium Ducted System
$9,148.18 Excl GST

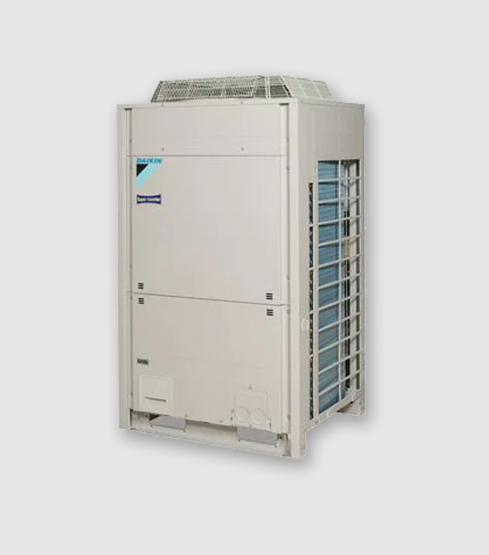

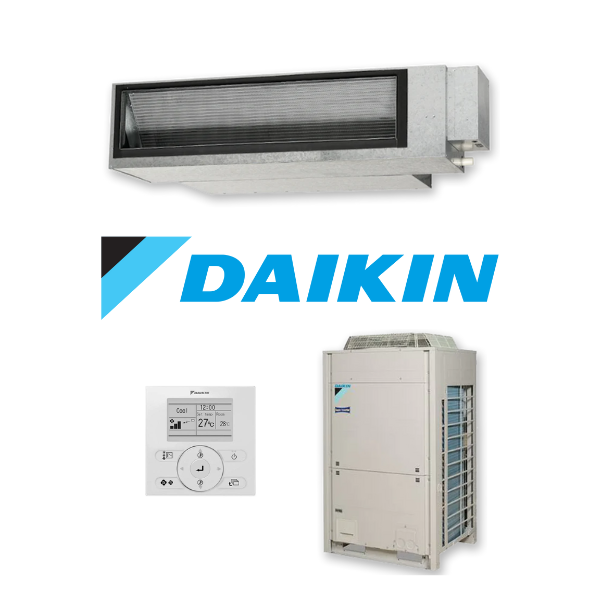

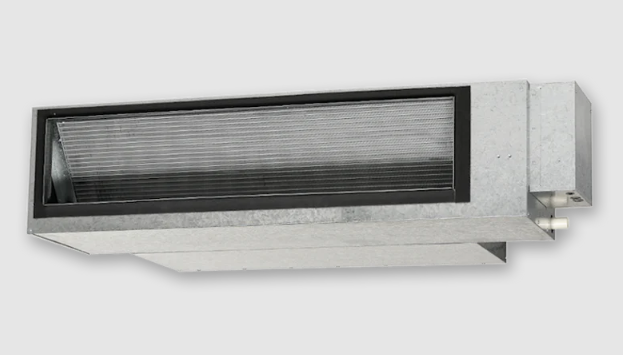

Daikin Premium FDYQ250LC-TY 24.0kW Ducted Three Phase System - Includes Wall Controller and Outdoor Unit RZYQ10TY1
The Daikin Premium Inverter offers exceptional comfort quickly and efficiently. It is designed to provide excellent energy efficiency with flexible design options. The Premium Inverter Ducted range is perfect for discreetly providing air-conditioned comfort across your entire home.
Key Features:
-
Industry leading energy performance.
Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
-
Heating focused.
The Heating Focus models offer a range of 18.0 to 24.0kW heating capacity, specifically designed to provide enhanced heating performance. These models are particularly well-suited for addressing the colder climates experienced in various parts of Australia.
-
Night Quite Mode.
Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
-
Demand Respone Enabled Ducted (DRED).
A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
-
R22 backwards compatibility.
Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).
-
Australian Made.
The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.
(FDYQ250LC-TY)
| System Names | FDYQ180LC-T2Y | FDYQ200LC-TY | FDYQ250LC-TY | FDYQ180LC-TA2Y | FDYQ200LC-TAY | FDYQ250LC-TAY |
|---|---|---|---|---|---|---|
| Indoor Unit | FDYQ180LCV1 | FDYQ200LCV1 | FDYQ250LCV1 | FDYQ180LCV1 | FDYQ200LCV1 | FDYQ250LCV1 |
| Outdoor Unit | RZYQ7T2Y1 | RZYQ8TY1 | RZYQ10TY1 | RZYQ7TA2Y1 | RZYQ8TAY1 | RZYQ10TAY1 |
| Edition | Premium - Standard | Premium - Heating Focus | ||||
| Rated Cooling Capacity (kW) | 18.0 | 20.0 | 24.0 | 18.0 | 20.0 | 24.0 |
| Rated Heating Capacity (kW) | 20.0 | 22.4 | 26.8 | 20.0 | 22.4 | 26.8 |
| Power Supply | 3 Phase, 380-415V, 50Hz | |||||
| Power Input (Rated) Cool/Heat (kW) | 5.61 / 5.81 | 6.08 / 6.17 | 7.47 / 8.14 | 5.60 / 5.81 | 6.08 / 6.17 | 7.47 / 8.14 |
| EER / COP | 3.21 / 3.44 | 3.29 / 3.63 | 3.21 / 3.29 | 3.21 / 3.44 | 3.29 / 3.63 | 3.21 / 3.29 |
| TCSPF (Residential) Hot/Avg/Cold | 3.80 / 3.26 / 3.22 | 3.87 / 3.35 / 3.32 | 3.98 / 3.50 / 3.51 | 3.79 / 3.23 / 3.18 | 3.86 / 3.32 / 3.29 | 3.97 / 3.48 / 3.48 |
| HSPF (Residential) Hot/Avg/Cold | 3.21 / 3.15 / 3.02 | 3.42 / 3.35 / 3.20 | 3.60 / 3.37 / 3.15 | 3.21 / 3.15 / 3.02 | 3.42 / 3.35 / 3.29 | 3.60 / 3.37 / 3.15 |
| Airflow Rate (Nominal/Max) (L/s) | 1160 / 1200 | 1200 / 1300 | 1400 / 1600 | 1160 / 1200 | 1200 / 1300 | 1400 / 1600 |
| Indoor Sound Level @1.5m Cool/Heat (dBA) | 45.0 / 45.0 | 44.0 / 44.0 | 46.0 / 46.0 | 45.0 / 45.0 | 44.0 / 44.0 | 46.0 / 46.0 |
| Piping Length (m) | 150 | 165 | ||||
| Indoor Fan Speeds | H / M / L | |||||
| Indoor Unit Dimensions (H x W x D) (mm) | 470 x 1200 x 997 | 470 x 1400 x 997 | 470 x 1200 x 997 | 470 x 1400 x 997 | ||
| Outdoor Unit Dimension (H x W x D) (mm) | 1657 x 930 x 765 | |||||
| Indoor Unit Weight (kg) | 70 | 79 | 85 | 70 | 79 | 85 |
| Outdoor Unit Weight (kg) | 192 | 203 | 185 | 200 | ||
| Compressor Type | Hermetically Sealed Scroll Type | |||||
| Refrigerant | R410A | |||||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 19.1 | 9.52 / 22.2 | 9.52 / 19.1 | 9.52 / 22.2 | ||
| Supply Air Opening (mm) HxW | 350 x 918 | 350 x 1118 | 350 x 918 | 350 x 1118 | ||
| Return Air Opening (mm) | 393 x 918 (Flange) | 393 x 1118 (Flange) | 393 x 918 (Flange) | 393 x 1118 (Flange) | ||
| Outdoor Operating Range Cool/Heat (C) | -5 to 49 / -20 to 16 | |||||
| EPA Sound Power Level (dBA) | - | 76 | 78 | |||
| Outdoor Sound Level @1m Cool/Heat (dBA) | 56 / 56 | 57 / 57 | 56 / 56 | 57 / 57 | ||
| SKU | FDYQ250LC-TY |
| Brand | Daikin |
| Shipping Weight | 288.0000kg |
| Shipping Cubic | 1.834899000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
