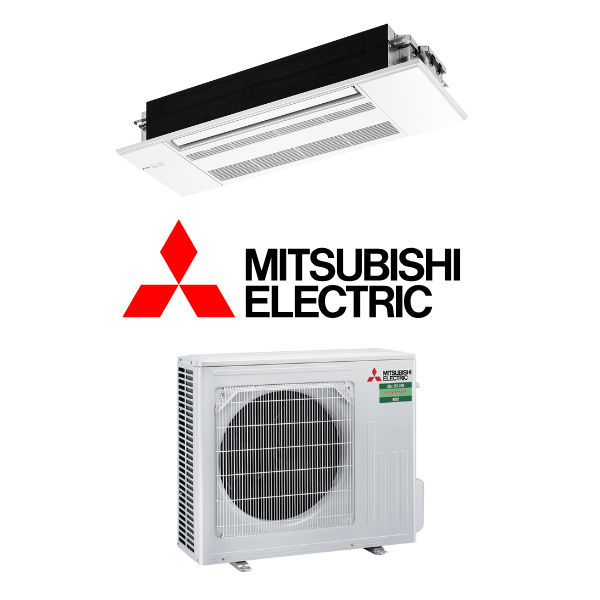

Mitsubishi Electric One Way Cassette MLZKP50VG2KIT 5.0kW 1 Phase Wireless Inverter Air Conditioning System
MLZ-KP25VG-A1/SUZ-M50VAD2-A.TH Mitsubishi Cassette
$2,957.27 Excl GST
Mitsubishi Electric MLZKP50VG2KIT 5.0kW Single Phase One-Way Cassette Air Conditioner - Includes Outdoor Unit, Grille and Wireless Controller

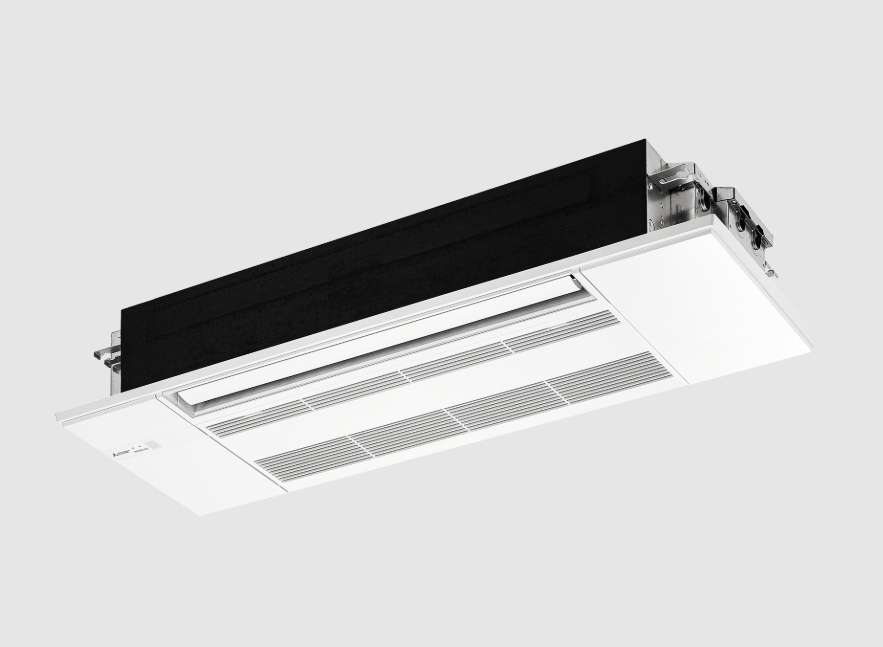

Designed to suit modern interiors, the MLZ-KP Series 1 way ceiling cassette air conditioner delivers quiet, efficient comfort in a low-profile design. Its slimline form fits neatly into tight ceiling spaces, offering reliable performance without compromising room layout or aesthetics - ideal for homes with limited wall space.
Key Features:
- 1-Way Airflow
- Sleek and Slimline Design - Only 185mm High
- Auto Vane Control
- Horizontal Airflow
- Set Airflow According to Ceiling Height
- Weekly Timer
- Multi System Connection
- Optional Wi-Fi Control - Adaptor Required
- Includes MLP-450W Grille and Remote Controller
(MLZKP50VG2KIT)
| System | MLZKP25VG2KIT | MLZKP35VG2KIT | MLZLP50VG2KIT | |
|---|---|---|---|---|
| Indoor Unit | MLZ-KP25VG-A1 | MLZ-KP35VG-A1 | MLZ-KP50VG-A1 | |

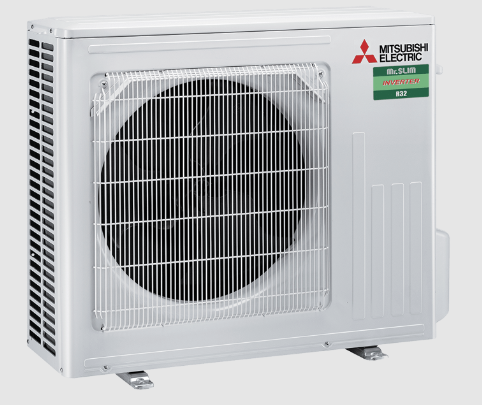

| Outdoor Unit | SUZ-M25VAD2-A.TH | SUZ-M35VAD2-A.TH | SUZ-M50VAD2-A.TH | |
| Cooling Capacity Rated/Min-Max | kW | 2.5 (1.5-3.2) | 3.5 (1.5-4.1) | 5.0 (2.3-5.5) |
| Heating Capacity Rated/Min-Max | 3.2 (1.3-4.2) | 4.1 (1.3-4.7) | 6.0 (1.7-6.8) | |
| Power Supply | 1 Phase, 230V, 50/60Hz | |||
| EER/COP | 4.23 / 4.05 | 3.80 / 3.62 | 3.59 / 3.27 | |
| Total Input Rated Cool/Heat | kW | 0.59 / 0.79 | 0.90 / 1.13 | 1.37 / 1.83 |
| Star Rating Cool/Heat | 3.5 / 3.5 | 3.0 / 2.5 | 2.5 / 2.0 | |
| Rated Running Current Cool/Heat | A | 3.3 / 4.0 | 4.2 / 5.0 | 6.1 / 8.1 |
| Sound Pressure Level In (Slo/Lo/Mid/Hi) Cool | dBA | 27 - 31 - 34 - 38 | 27 - 32 - 36 - 40 | 29 - 36 - 41 - 47 |
| Sound Pressure Level Out (PWL) Cool | 45(59) | 48(62) | 48(64) | |
| Sound Pressure Level In (Slo/Lo/Mid/Hi) Heat | 26 - 29 - 34 - 37 | 26 - 32 - 36 - 40 | 26 - 37 - 42 - 48 | |
| Sound Pressure Level Out (PWL) Heat | 46(59) | 48(63) | 49(66) | |
| Air Volume (In) Slo/Lo/Mid/Hi Cool | L/s | 100 - 120 - 133 - 147 | 100 - 122 - 140 - 157 | 100 - 138 - 163 - 190 |
| Air Volume (In) Slo/Lo/Mid/Hi Heat | 100 - 117 - 137 - 153 | 100 - 128 - 147 - 165 | 100 - 147 - 172 - 197 | |
| Max Running Current | A | 7.20 | 8.90 | 13.90 |
| Indoor Unit Dimensions HxWxD | mm | 185 x 1102 x 360 | ||
| Panel Dimensions HxWxD | 24 x 1200 x 424 | |||
| Outdoor Unit Dimensions HxWxD | 550 x 800 x 285 | 714 x 800 x 285 | ||
| Indoor Unit Weight | kg | 15.5 | ||
| Panel Weight | 3.5 | |||
| Outdoor Unit Weight | 30 | 35 | 41 | |
| Pipe Sizes (Liquid/Gas) | mm | 6.35 / 9.52 | 6.35 / 12.7 | |
| Max. Piping Length/Height | m | 20 / 12 | 30 / 30 | |
| Outdoor Operating Range Cool/Heat | C | -10 to 52 / -10 to 24 | ||
| Pre-Charge R32 Refrigerant | kg | 0.65(7m) | 0.90(7m) | 1.20(7m) |
| Additional Refrigerant | g/m | 20 | ||
| SKU | MLZKP50VG2KIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 60.0000kg |
| Shipping Cubic | 0.248396000m3 |
| Unit Of Measure | ea |
