Daikin FDYQN180LC-MY 18.0kW 3 Phase New Standard Inverter Ducted Unit

FDYQN180LCV1/RZQ180MY1 Ducted Unit Air Conditioner

$6,354.00 Incl GST
$5,776.36 Excl GST
Sold Out


This product has been superseded by Daikin FDYQN180LC-M2Y

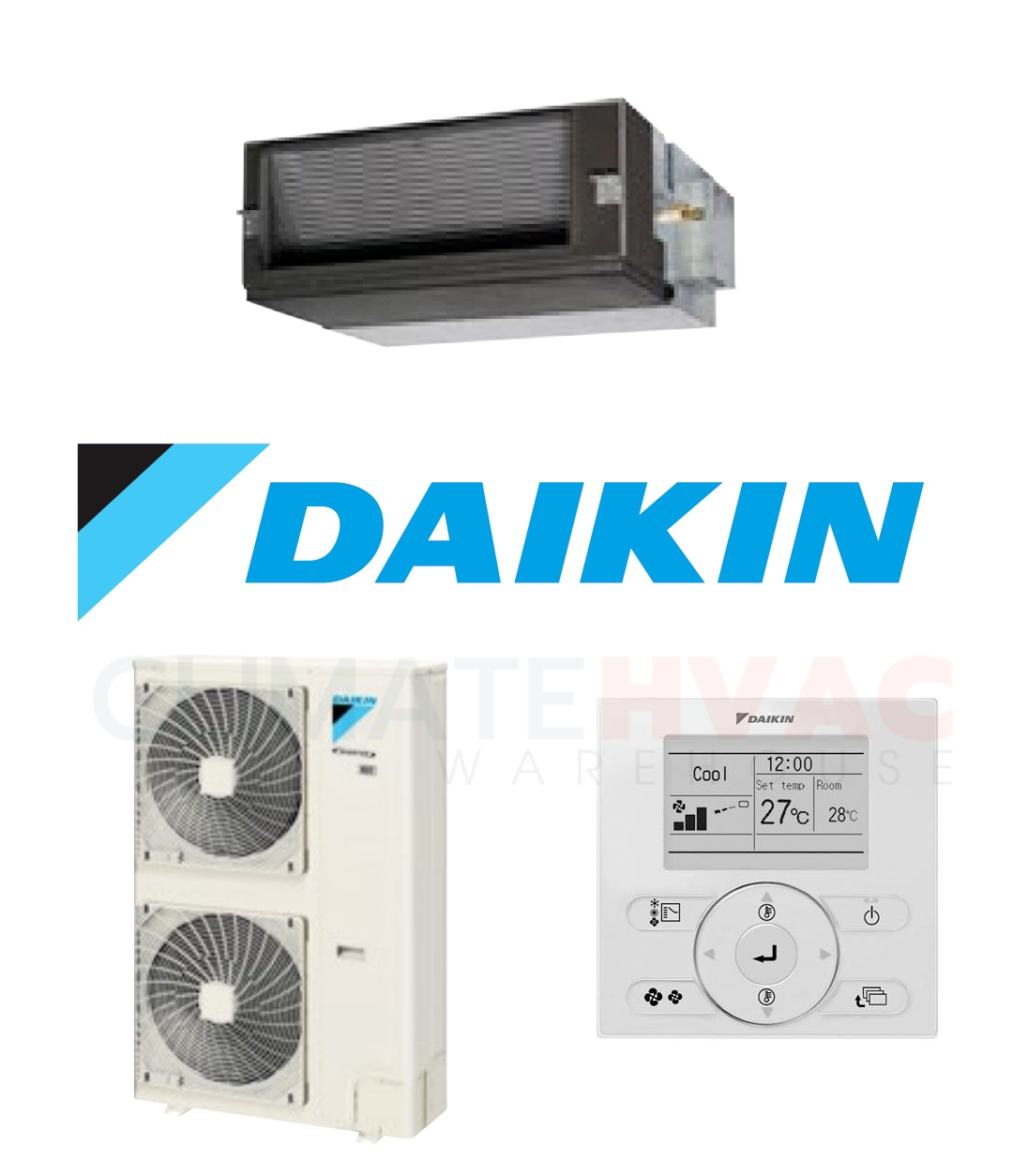

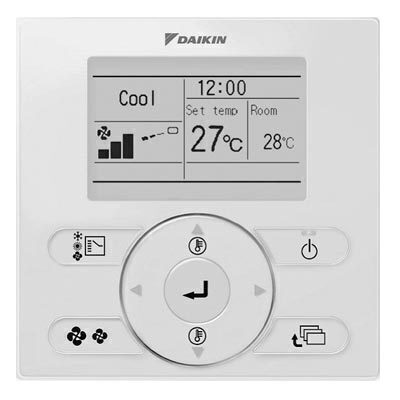

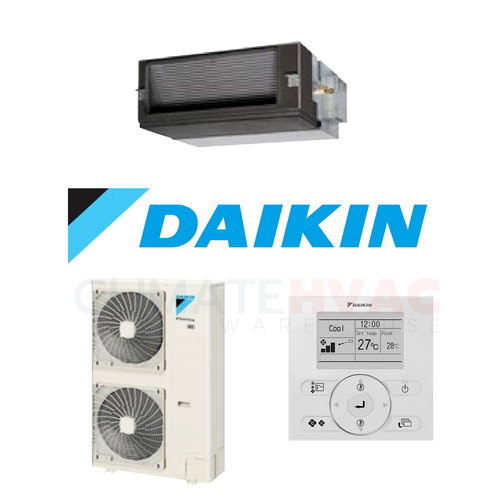

Daikin FDYQN180 18.0kW 3 Phase Standard Ducted Unit - Includes BRC1E63 Wired Controller & Outdoor Unit RZQ180MY1

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.



Features:

  • Heating or cooling your entire home
  • Small to large houses
  • Houses with limited roof space and outdoor space


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYQN180LC-MY)

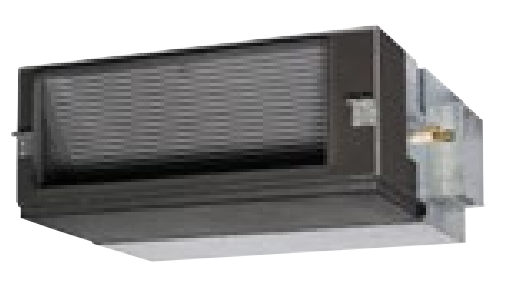

Indoor Unit FDYQN180LCV1

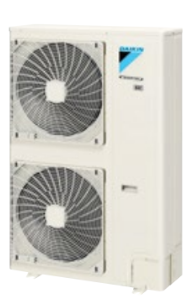

Outdoor Unit RZQ180MY1
Power Supply 3 Phase, 380 ~ 415v, 50Hz
Rated Capacity
Cool (kW) 18.0
Heat (kW) 20.0
Capacity Range
Cool (kW) 9.0 ~ 18.0
Heat (kW) 10.0 ~ 20.0
Power Input (Rated)
Cool (kW) 5.82
Heat (kW) 6.11
EER/COP 3.09 / 3.27
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 3.61 / 3.15 / 3.13
HSPF (Hot/Average/Cold) 3.23 / 2.95 / 2.61
Drain Size (mm) BSP 3/4 inch Internal Thread
Duct Sizes
Supply (mm) 350 x 918 (Flange)
Return (mm) 393 x 918 (Flange)
Dimensions (HxWxD)
Indoor (mm) 470 x 1200 x 997
Outdoor (mm) 1430 x 940 x 320
Weight
Indoor (kg) 70
Outdoor (kg) 138
Refrigerant Type R410A
Max Pipe Length (m) 50
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 19.05
Connection Type Brazed
Ambient Temperature
Cool (°C) -5 ~ 43
Heat (°C) -20 ~ 16
Indoor Airflow Rate
(l/s) 1160 / 1200
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 45
Heat (dBA) 45
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 57
Heat (dBA) 58
Outdoor EPA Sound Power Level (H)
(dBA) 72
SKU FDYQN180LC-MY
Brand Daikin
Shipping Weight 208.0000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
